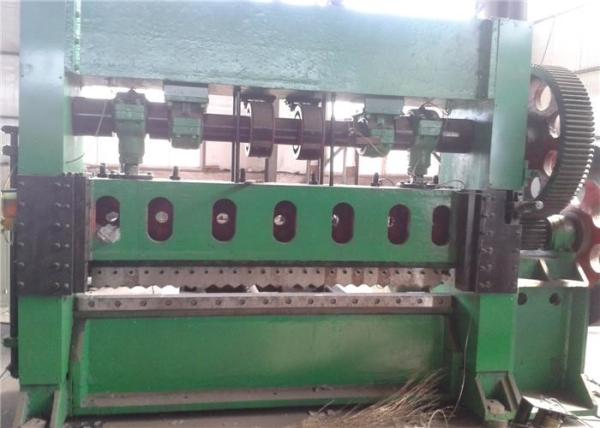

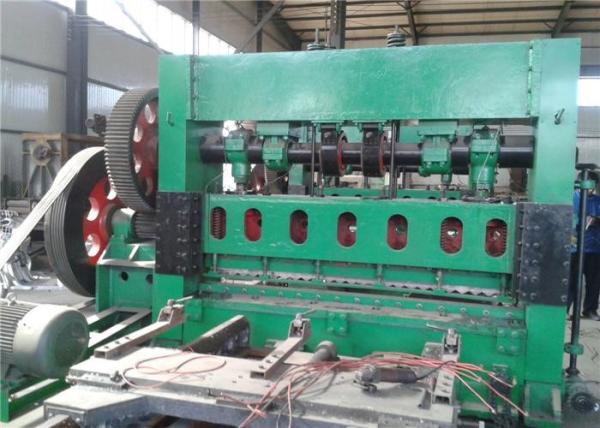

High Load Gravity Expanded Metal Sheet Making Machine For 40 X 80 Mm Mesh
High Load Gravity Expanded Metal Sheet Making Machine For 40 X 80 Mm Mesh
High Load Gravity Expanded Metal Sheet Making Machine For 40 X 80 Mm Mesh
High Load Gravity Expanded Metal Sheet Making Machine For 40 X 80 Mm Mesh
Specifications
Brand Name :
Anao
Model Number :
JQ25 series
Certification :
CE,ISO9001
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
2 - 3 sets per month
Delivery Time :
30 days after receiving deposit or L/C
Packaging Details :
Wooden case package or container
Product :
Expanded metal machine
Max Thickness :
0.5-6mm
Working width :
2000-2500mm
Distance of feeding :
0-10mm
Motor :
11KW-22KW
Voltage :
220/380V 50Hz 3phases
Description

Scaffolding Expanded Metal Mesh Making Machine Mesh 40x80mm And 30x60mm

Application:

Recent years one of the most important usage of expanded metal machine is to produce scaffolding expanded metal mesh.Scaffolding expanded metal mesh use the quality Q235 material low carbon steel.Expanded metal machine punching and expanding material into metal mesh with uniform diamand mesh openings.The scaffolding expanded metal mesh used as construction scaffold,it's a new type of product.

Scaffolding expanded metal sheet Known as the new "flame retardant" scaffolding pedal plate,more and more popular,gradually replace the bamboo pedal plate scaffolding,very popular in construction industry.

Scaffolding expanded metal mesh specification
Material Low carbon steel
Mesh opening style Diamond
Common LWD&SWD 40*80mm,30*60mm,can be customized
Thickness 3.0mm,3.25mm,3.5mm,4mm,ect.
Measurement 0.8m*1m,0.8m*1.25m,0.78m*1m,0.78m*1.25m,ect.
Surface Mill finish or dip antirust paint
Common machine type JQ25-63C,JQ25-100,JQ25-100B

Advantages of Scaffolding expanded metal mesh:

  1. High load gravity,can load people and heavy stuff;
  2. High tensile strength,mesh structure solid,surface no point of weld,punching and expanding manufacturing technique;
  3. The surface is antiskid and wear-resistant;
  4. High temperature resistance, strong flame-retardant,metal material,the tranditional bamboo scaffold easy to cause fire disaster;
  5. High repetition rate,scaffolding expanded metal mesh not easy to deform and damage.

Technical parameter:

The common expanded metal machine types for used to produce scaffolding expanded metal mesh is expanded metal machine JQ25-63C,JQ25-100,JQ25-100B.

Expanded metal machine JQ25-63C
Working width 2000mm
Material thickness 0.5-4.0mm
Distance of feeding 0-10.0mm
Working speed 60/min
Motor 15KW 220/380v 50Hz
Weight 10500KG
Measurement

3500mm*1750mm*2300mm(Main machine)

2650mm*1940mm*700mm(Secondary machine)

Expanded metal machine JQ25-100
Working width 2000mm
Material thickness 0.5-6.0mm
Distance of feeding 0-10.0mm
Working speed 52/min
Motor 22KW 220/380v 50Hz
Weight 12500KG
Measurement

3500mm*1750mm*2300mm(Main machine)

2650mm*1940mm*700mm(Secondary machine)

Expanded metal machine JQ25-100B
Working width 2500mm
Material thickness 0.5-4.0mm
Distance of feeding 0-10.0mm
Working speed 52/min
Motor 22KW 220/380v 50Hz
Weight 14000KG
Measurement
3930mm*2260mm*2300mm(Main machine)
2650mm*1940mm*700mm(Secondary machine)


Scaffolding Expanded Metal Mesh:

Mill finish:

High Load Gravity Expanded Metal Sheet Making Machine For 40 X 80 Mm Mesh

Red antirust paint:

High Load Gravity Expanded Metal Sheet Making Machine For 40 X 80 Mm Mesh
