Hot Dipped Galvanized Steel Expanded Metal Sheet With Thickness 0.3mm For Building
Hot Dipped Galvanized Steel Expanded Metal Sheet With Thickness 0.3mm For Building
Hot Dipped Galvanized Steel Expanded Metal Sheet With Thickness 0.3mm For Building
Hot Dipped Galvanized Steel Expanded Metal Sheet With Thickness 0.3mm For Building
Specifications
Brand Name :
Anao
Model Number :
2.5mmx5mm, 5x10mm
Certification :
CE,PC+SC
Place of Origin :
Hebei China
MOQ :
10 rolls
Price :
Negotiable
Supply Ability :
One 20' container per month
Delivery Time :
30 days after receiving deposit or L/C
Packaging Details :
Paper,woven bag
Product :
Galvanized expanded metal mesh
Material :
Steel coils
Mesh opening :
2.5x5mm
Thickness :
0.3mm
Mesh Width :
1m
Mesh length :
as requried
Description

Hot-diipped Galvanized Steel Expanded Metal Sheet With Thickness 0.3mm For Building


Introduction:

Galvanized expanded metal mesh
1 Long way of Expanded mesh:TB: 2.5-200mm
2 Short way of Expanded mesh:5-80mm
3 Expanded Mesh Thickness:0.5-8mm

Galvanized expanded metal mesh

Heavy Expanded Metal Mesh is made of high quality plain steel after being expanded on the automatic expanded machines. Because of the high strength of Heavy Type Expanded Metal, Expanded Metal Mesh
Is mostly used as walkways, ramps and catwalks of all types.


Our automatic Heavy Type Expanding Machines and our well-trained workers ensure our Heavy Type Expanded Metal with even size, level and flat surface. We can also do hot dip galvanized after expanding.

Small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded Copper wire mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.
.
Galvanized expanded metal mesh Sizes:
1 Long way of mesh: TB: 12.5-200mm
2 Short way of mesh: 5-80mm
3 Thickness: Diameter: 0.5-8mm
4 Expanded metal mesh at length from 600-4000mm and width from 600-2000mm.

.

Specification:

Hot Dipped Galvanized Steel Expanded Metal Sheet With Thickness 0.3mm For Building

Product name Steel Expanded Metal Mesh
Mesh size 2.5X5mm,5x10mm
Color Black, White, Brown
Regular Expanded Metal Mesh Size
Style SWO LWO SWD LWD Strand Width Strand Thickness Overall Thickness
1/2"#18 0.438 0.938 0.5 1.2 0.087 0.05 0.164
1/2"#16 0.438 0.938 0.5 1.2 0.087 0.062 0.164
1/2#13 0.313 0.875 0.5 1.2 0.12 0.093 0.225
3/4#18 0.813 1.75 0.923 2 0.106 0.5 0.2
3/4"#16 0.813 1.75 0.923 2 0.106 0.062 0.2
3/4"#13 0.75 1.688 0.923 2 0.108 0.093 0.2
3/4"#9 0.688 1.563 0.923 2 0.161 0.14 0.3
1.5"#16 1.25 2.75 1.333 3 0.115 0.062 0.22
1.5"#13 1.25 2.525 1.333 3 0.116 0.093 0.22
1.5"#9 1.125 2.5 1.333 3 0.155 0.14

0.28

We can manufacture according to your specific requirements.
Please indicate parameters below when you ask for a quotation:
SWD,LWD ,Weight of per square meter,Strand width,Thickness,width and length.

Finish:

PVC dipping (powder coating, PVC coated), hot-dip galvanized, sub-electro-galvanized, antirust paint, etc.

Characteristics:

expanded by metal plate, high utilization rate of steel, strong and durable, anti-skidding, good ventilation
performance, beautiful appearance, simple maintenance.

Applications:

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, and highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges

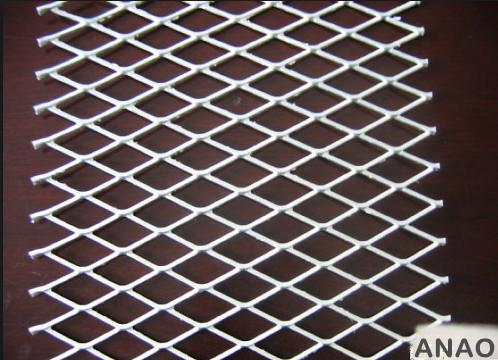

Photo:

Hot Dipped Galvanized Steel Expanded Metal Sheet With Thickness 0.3mm For Building
