Flexible Diamond Aluminum Expanded Metal Mesh Rolls or Sheet With Color Customized
Flexible Diamond Aluminum Expanded Metal Mesh Rolls or Sheet With Color Customized
Flexible Diamond Aluminum Expanded Metal Mesh Rolls or Sheet With Color Customized
Flexible Diamond Aluminum Expanded Metal Mesh Rolls or Sheet With Color Customized
Flexible Diamond Aluminum Expanded Metal Mesh Rolls or Sheet With Color Customized
Flexible Diamond Aluminum Expanded Metal Mesh Rolls or Sheet With Color Customized
Specifications
Brand Name :
Anao
Model Number :
YNS
Certification :
ISO
Place of Origin :
Hebei China
MOQ :
100 rolls
Price :
Negotiable
Supply Ability :
One 20' container per month
Delivery Time :
30 days after receiving deposit or L/C
Packaging Details :
each roll in one carton
Product :
Diamond aluminum expanded metal mesh
Mesh style :
Diamond
Thickness :
0.3mm-3.0mm
Mesh width :
0.5-1.5 meter
Mesh length :
18-50 meter
Material :
Aluminum
Description

Flexible Diamond Aluminum Expanded Metal Mesh Rolls or Sheet With Color Customized

Introduction:

Aluminum expanded window screen is a sheet product that has been slit and stretched to a wide array of diamond shaped openings. Aluminum Expanded Metal offers savings in weight and metal, free passage of light, liquid, sound, and air, while providing a decorative or ornamental effect.

Variety: small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.

Key Specifications/Special Features:

  • Specifications: listed in the below.
  • Workability: Easy to Weld, Cut, and Form with proper equipment
  • Mechanical Properties: Corrosive resistant, Non-magnetic, Tensile = 22,000, Yield = 21,000 (+/-)
  • How is it Measured? Nominal size of diamond opening, short-way X thickness X width X length

Applications:

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.

Description:

Common Thickness of plate 0.3mm
Common Thickness of strand 1.2mm
Common Opening 2.5x5mm
Common Weight 0.086kg/sqm
Finish mill finish or power coated
Color a variety of colors can be customized

Mesh thickness(mm) Distance short(mm) Distance long(mm) Strip(mm) Width (m) Length(m) Weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69

Packing:

1.in roll: Inside with water-proof paper or plastic bag and outside with carton box;
in sheet: inside with plastic bag and outside with wooden box or pallet.
2. According to customers' request.

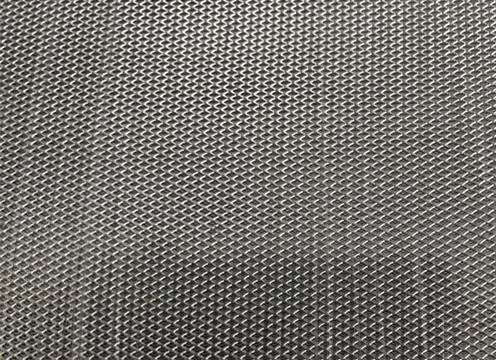

Aluminum Expanded Metal Mesh Rolls Flexible Diamond Aluminum Expanded Metal Mesh Rolls or Sheet With Color CustomizedPicture:
