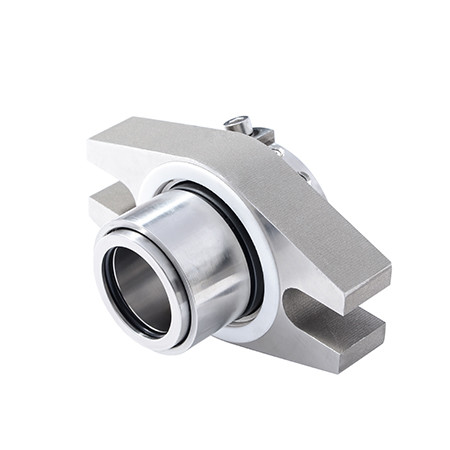

Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con
Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con
Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con
Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con
Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con
Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con
Specifications
Brand Name :
KALU
Model Number :
KL-CON
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
carton
Type :
KL-CON
Size :
24-100mm(1.0"-4.0")
Material of seal faces :
Car, Sic, Ssic, TC
Keywords :
AES CONVERTOR II Cartridge Mechanical Seal
Temperature :
-20℃～210℃
Pressure :
2.5Mpa
HS Code :
8484200090
Place of origin :
Zhangjiagang,China(mainland)
Mechanical seal :
Single cartridge seal
Description

KL-CON to replace AES CONVERTOR II CARTRIDGE SEAL

Feature:

Multi-spring cartridge design

Compact gland used in limit space

Hydraulically pressure balanced seal faces

Material:

Rotary face:Carbon/Sic/TC

Stat Ring:Sic/TC

Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con

KL-CON(mm)

Size/Metric D5 D7 L3 D9 D4 W4 G L1 L2
min max min max
24 101.6 55.6 20.7 56.1 40.0 48.0 69.9 88.9 12 28.6 31.8
25 101.6 55.6 20.7 56.1 41.0 48.0 69.9 88.9 12 28.6 31.8
28 104.8 58.8 20.7 59.3 44.0 50.0 73.1 92.1 12 28.6 31.8
30 108.0 61.9 20.7 62.4 46.0 54.0 76.2 95.3 12 28.6 31.8
35 108.0 66.7 20.7 67.2 51.0 59.0 81.0 95.3 12 28.6 31.8
38 114.3 71.5 22.3 72.0 57.0 62.0 85.8 101.6 12 28.6 33.4
40 114.3 71.5 22.3 72.0 58.0 64.0 85.8 101.6 12 28.6 33.4
43 120.7 74.6 22.3 75.1 61.0 67.0 88.9 108.0 12 28.6 33.4
45 127.0 77.8 23.8 78.3 63.5 69.0 92.1 114.3 12 30.2 35.0
48 133.4 81.0 23.8 81.5 66.7 72.0 95.3 120.7 12 30.2 35.0
50 133.4 81.0 23.8 81.5 68.0 74.0 95.3 120.7 12 30.2 35.0
53 139.7 84.2 25.4 84.7 71.0 77.0 101.6 123.9 16 30.2 36.5
55 146.1 87.3 25.4 87.8 74.0 79.0 104.8 130.2 16 30.2 36.5
58 165.1 95.3 25.4 98.9 79.4 85.7 115.9 146.0 20 30.2 36.5
60 165.1 95.3 25.4 98.9 79.4 85.7 115.9 146.0 20 30.2 36.5
63 177.8 111.2 25.4 121.2 85.8 101.6 131.8 158.7 20 28.6 41.2
65 177.8 111.2 25.4 121.2 88.9 101.6 131.8 158.7 20 28.6 41.2
68 177.8 111.2 25.4 121.2 92.1 101.6 131.8 158.7 20 28.6 41.2
70 177.8 111.2 25.4 121.2 92.1 101.6 131.8 158.7 20 28.6 41.2
75 190.5 125.4 31.7 130.7 98.5 114.3 146.1 171.4 20 30.2 50.8
80 190.5 125.4 31.7 130.7 101.6 114.3 146.1 171.4 20 30.2 50.8
85 203.2 135.0 31.7 140.2 108.0 123.8 155.6 184.1 20 30.2 50.8
90 215.9 144.5 31.7 149.7 114.3 133.3 165.1 196.8 20 30.2 50.8
95 215.9 144.5 31.7 149.7 117.5 133.3 165.1 196.8 20 30.2 50.8
100 228.6 154.0 31.7 156.1 123.9 139.7 174.7 209.5 20 30.2 50.8

KL-CON(Inch)

Size/Inch D5 D7 L3 D9 D4 W4 G L1 L2
min max min max
1.000 4.000 2.187 0.812 2.208 1.625 1.875 2.750 3.500 1/2 1.125 1.125
1.125 4.125 2.312 0.812 2.333 1.750 2.000 2.875 3.625 1/2 1.125 1.125
1.250 4.250 2.437 0.812 2.458 1.875 2.125 3.000 3.750 1/2 1.125 1.125
1.375 4.250 2.625 0.812 2.645 2.000 2.250 3.187 3.750 1/2 1.125 1.125
1.500 4.500 2.812 0.875 2.833 2.250 2.500 3.375 4.000 1/2 1.125 1.312
1.625 4.750 2.937 0.875 2.958 2.375 2.625 3.500 4.250 1/2 1.125 1.312
1.750 5.000 3.062 0.937 3.083 2.500 2.750 3.625 4.500 1/2 1.187 1.375
1.875 5.250 3.187 0.937 3.207 2.625 2.875 3.750 4.750 1/2 1.187 1.375
2.000 5.500 3.312 1.000 3.333 2.750 3.000 4.000 4.875 5/8 1.187 1.437
2.125 5.750 3.437 1.000 3.458 2.875 3.125 4.125 5.125 5/8 1.187 1.437
2.250 6.500 3.750 1.000 3.895 3.000 3.375 4.562 5.750 3/4 1.187 1.437
2.375 6.500 3.750 1.000 3.895 3.125 3.375 4.562 5.750 3/4 1.187 1.437
2.500 7.000 4.375 1.000 4.770 3.375 4.000 5.187 6.250 3/4 1.125 1.625
2.625 7.000 4.375 1.000 4.770 3.500 4.000 5.187 6.250 3/4 1.125 1.625
2.750 7.000 4.375 1.000 4.770 3.625 4.000 5.187 6.250 3/4 1.125 1.625
2.875 7.500 4.937 1.250 5.145 3.750 4.500 5.750 6.750 3/4 1.187 2.000
3.000 7.500 4.937 1.250 5.145 3.875 4.500 5.750 6.750 3/4 1.187 2.000
3.125 7.500 4.937 1.250 5.145 4.000 4.500 5.750 6.750 3/4 1.187 2.000
3.250 8.000 5.312 1.250 5.520 4.125 4.875 6.125 7.250 3/4 1.187 2.000
3.375 8.000 5.312 1.250 5.520 4.250 4.875 6.125 7.250 3/4 1.187 2.000
3.500 8.000 5.312 1.250 5.520 4.375 4.875 6.125 7.250 3/4 1.187 2.000
3.625 8.500 5.687 1.250 5.895 4.500 5.250 6.500 7.750 3/4 1.187 2.000
3.750 8.500 5.687 1.250 5.895 4.625 5.250 6.500 7.750 3/4 1.187 2.000
3.875 8.500 5.687 1.250 5.895 4.750 5.250 6.500 7.750 3/4 1.187 2.000
4.000 9.000 6.062 1.250 6.145 4.875 5.500 6.875 8.250 3/4 1.187 2.000

Application:clean water, sewage water, Oil and other moderately corrosive fluids

What product we supply?

We design and manufacturer mechanical seals,supplying consulting of sealing problem and repair service.

Spring pusher seals,Rubber bellow mechanical seals,PTFE bellow mechanical seal,Metal Bellow Seals,Cartridge Seals,Mixer & Agitator seals, Dry Gas Seals; Spare parts with material silicon carbide, Tungsten carbide, Carbon ,Ceramic,rubber,O-rings and stainless steel parts...

Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con

How to pack?

Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con

Delivery:


1. If the products we have in store, we will send it out ASAP after receiving payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT, UPS will be normal ways. If you require use of a courier, please inform us in advance.

Aes Convertor Ii 24mm Cartridge Mechanical Seal Replacement Kl-Con
