Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape
Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape
Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape
Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape
Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape
Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape
Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape
Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape
Specifications
Brand Name :
OEM
Place of Origin :
CHINA
MOQ :
2000 Rolls
Delivery Time :
15-25 days after receiving 30% deposit.
Packaging Details :
Individually packing, shrink, carton, pallet
Material :
18u Foil / FR Glue / 8 x 8 Mesh Glass Cloth
Product name :
Aluminum Foil Fiberglass Cloth Tape
Adhesive :
Flame Retardant Solvent Acrylic Adhesive
Product Code :
AG1825R
Backing Thickness :
125mic
Total Thickness :
180mic
Service Temperature :
-30 ~ + 120 Degree Centigrade
Flame Retardant :
Passed
Feature :
Heat-Resistant, Waterproof, Flame Retardant
Application :
Duct board joints and seams
Description

Aluminum Foil Fiberglass Cloth Tape - AG1825R

Description:

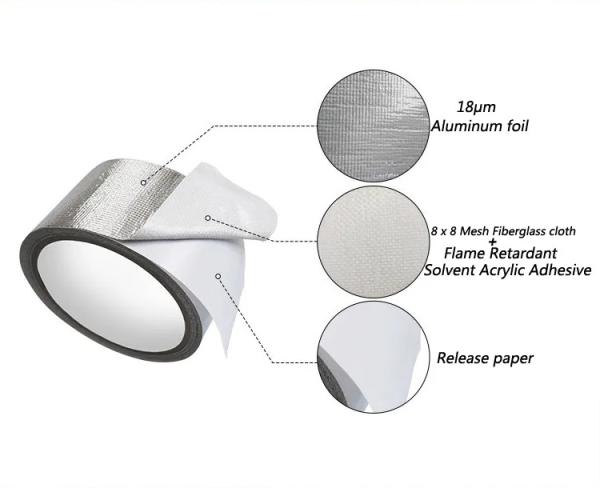

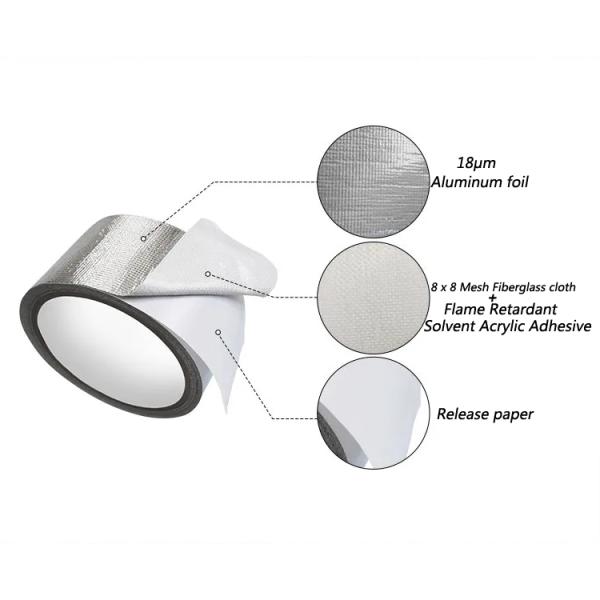

Aluminum-Glass Cloth backing (18u Foil / FR Glue / 8 x 8 Mesh Glass Cloth), combined with a high performance flame retardant solvent acrylic adhesive, protected by an easy-release silicone release paper.

Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape

Standard Products:

Product code Aluminum Foil Fiberglass Cloth Tape - AG1825R
Material 18u Foil / FR Glue / 8 x 8 Mesh Glass Cloth
Gule High Performance FR Solvent Acrylic Adhesive
Cut Roll 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
Log Roll 1200mm x 45M / 50M
Jumbo Roll 1200mm x 500M / 750M
Sample Free, Freight on buyer

Typical Physical Properties:

PROPERTIES METRIC ENGLISH TEST METHOD
Backing Thickness 125 Micron 5.0 Mil PSTC-133 / ASTM D 3652
Total Thickness 180 Micron 7.2 Mil PSTC-133 / ASTM D 3652
Adhesion to Steel 20 N/25mm 72 Oz./In. PSTC-101 / ASTM D 3330
Tack Rolling Ball 15 cm 6.0 In. PSTC-6 / ASTM D 3121
Tensile Strength 255 N/25mm 58.0 Lb/In PSTC-131 / ASTM D 3759
Elongation 5.0% 5.0% PSTC-131 / ASTM D 3759
Service Temperature -30 ~ +120 °C -22 ~ +248 °F ------------
Fire Rating Class O & 25 / 50 Class O & 25 / 50 BS476 Pt. 6 & 7 / UL 723

Features:

• Low moisture vapor transmission rate.

• Excellent water vapor barrier property

• High mechanical strength and antioxidant property

• Strong cohesion, corrosion resistance

• Resistance to weak acid and alkali.

• High temperature resistance

Applications:

HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape

Packaging & Shipping

Fireproof HVAC Thermal Insulation Aluminium Tape Heat Resistant Fiberglass Cloth Tape

Surface Preparation

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.

Product Use

It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
