HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape
HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape
HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape
HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape
HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape
HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape
HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape
HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape
Specifications
Brand Name :
OEM
Place of Origin :
CHINA
MOQ :
2000 Rolls
Delivery Time :
15-25 days after receiving 30% deposit.
Packaging Details :
Individually packing, shrink, carton, pallet
Material :
18u Foil / FR Glue / 7628 Glass Cloth
Product name :
Aluminum Foil Fiberglass Cloth Tape
Adhesive :
Flame Retardant Solvent Acrylic Adhesive
Product Code :
AG18225R
Backing Thickness :
200mic
Total Thickness :
250mic
Service Temperature :
-30℃ ~ + 120℃
Flame Retardant :
Yes, FR Grade
Feature :
Heat-Resistant, Waterproof, Flame Retardant
Application :
Duct board joints and seams
Description

Aluminum Foil Fiberglass Cloth Tape - AG18225R

Description:

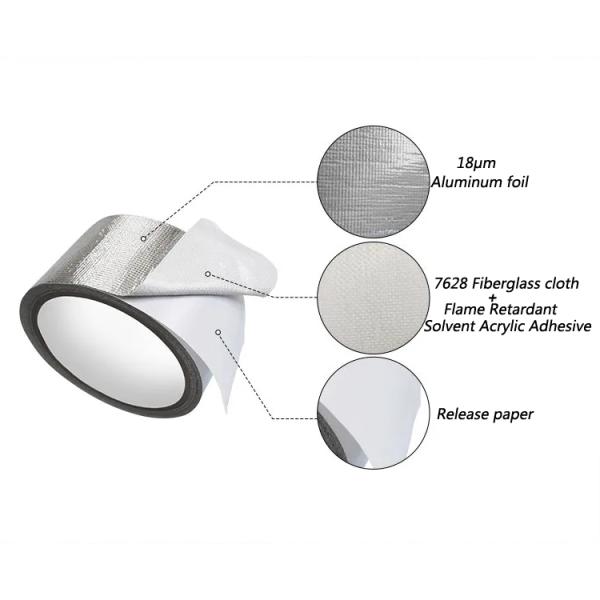

Aluminum-Glass Cloth backing (18u Foil / FR Glue / 7628 Glass Cloth), combined with a high performance flame retardant solvent acrylic adhesive, protected by an easy-release silicone release paper.

HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape

Standard Products:

Product code Aluminum Foil Fiberglass Cloth Tape - AG18225R
Material 18u Foil / FR Glue / 7628 Glass Cloth
Gule High Performance Flame Retardant Solvent Acrylic Adhesive
Cut Roll 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
Log Roll 1200mm x 45M / 50M
Jumbo Roll 1200mm x 500M / 750M
Sample Free, Freight on buyer

Typical Physical Properties:

PROPERTIES METRIC ENGLISH TEST METHOD
Backing Thickness 200 Micron 8.0 Mil PSTC-133 / ASTM D 3652
Total Thickness 250 Micron 10 Mil PSTC-133 / ASTM D 3652
Adhesion to Steel 20 N/25mm 72 Oz./In. PSTC-101 / ASTM D 3330
Tack Rolling Ball 15 cm 6.0 In. PSTC-6 / ASTM D 3121
Tensile Strength 400 N/25mm 91.0 Lb/In PSTC-131 / ASTM D 3759
Elongation 5.0% 5.0% PSTC-131 / ASTM D 3759
Service Temperature -30 ~ +120 °C -22 ~ +248 °F ------------
Fire Rating Class O & 25 / 50 Class O & 25 / 50 UL 723 & BS476 Pt. 6 & 7

Features:

• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.

• High quality adhesive with super strong adhesion and holding power offers reliable and durable

Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,

• Low moisture vapor transmission rate makes AG18225R an excellent vapor barrier.

• Service Temperature range from -30 ~ +120 °C (-22 ~ +248 °F)

Applications:

HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape

Packaging & Shipping

HVAC Aluminum Foil Tape Flame Retardant Heat Resistant Fiberglass Mesh Tape

Surface Preparation

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.

Product Use

It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
