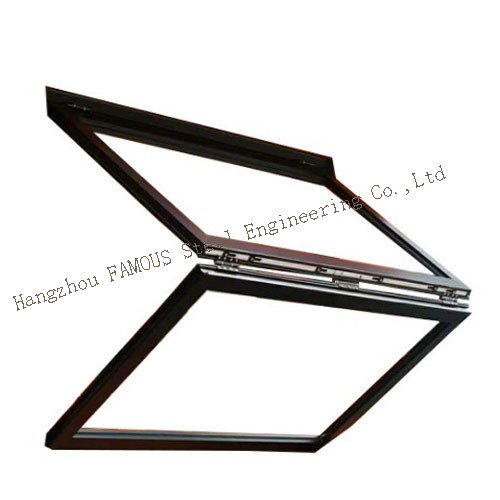

Store-specific American-style lifting Up and Down Folding Windows

Description:

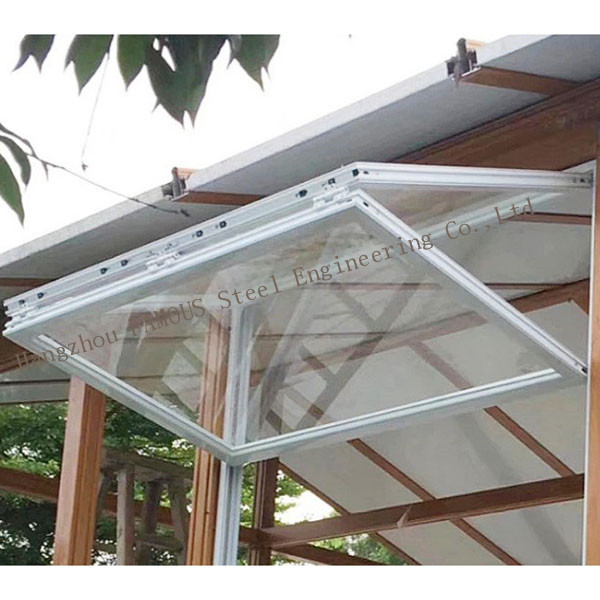

The new type of folding windows that can be opened becomes a "rain shed" with excellent lighting, and when closed, it becomes a glass wall integrated with the house.

Advantages of aluminum lift upper folding window:

1. The appearance is fashionable, beautiful, atmospheric, and has a good visual beauty.

2. The window sashes are folded upward to provide a wide view, and do not occupy the bottom space, and the folded sash can be used as a sunshade canopy.

3. Patented manual lifting, easy and effortless, suitable for any occasion.

4. Hidden accessories, beautiful and more durable.

5. The folding fan can hover at any position, adjust the height according to needs, and the glass selection is diversified.

6. It is especially suitable for various street shops such as bars, restaurants, coffee shops, milk tea shops, cake shops and so on.

the weight of the frame is moderate, and the combination of hidden accessories makes it easier to lift.

Light 40 series:

frame cross section 40mm, wall thickness 1.2mm, single glass area can be made up to 2.5 square meters.45 degree angle is more beautiful .

Medium 55 series:

The cross-section width of the frame is 55mm, the wall thickness is 1.4mm, the single glass area can be made up to 3.5 square meters, and the hollow glass can be made up to 1.5 square meters.

Heavy 55 series Windows:

The cross-section width of the frame is 55mm, and the wall thickness is 1.4~3.0mm. The single glass area can be made up to 7 square meters, and the hollow glass can be made up to 2.5 square meters.

Window characteristics:

Hidden accessories, hovering at will, safe and easy to use.

Roll-type lifting accessories, easy lifting, smooth sliding and durable, non-exposed hydraulic rod air rod.

Especially suitable for street shops, milk tea shops, coffee shops, catering snack bars

Material Selection:

Aluminum Frame:40 series, 55 series, so on.

Single Glass:5mm/6mm/8mm/10mm/12mm...

Double Glass:5+6A+5 /5+9A+5 /5+12A+5/...

Low-E Glass

Color: customized

Fold on the non-exposed hydraulic rod, more beautiful and easier to use

Folding window composed of two or more mutually hinged windows

More affordable and more practical, manually can hover up and down folding windows at will

Various series model window display:

Production Introduction:

Protect packing:
