CBB Harden Aluminum Anodized 50mm Differential Slip Ring
CBB Harden Aluminum Anodized 50mm Differential Slip Ring
CBB Harden Aluminum Anodized 50mm Differential Slip Ring
CBB Harden Aluminum Anodized 50mm Differential Slip Ring
CBB Harden Aluminum Anodized 50mm Differential Slip Ring
CBB Harden Aluminum Anodized 50mm Differential Slip Ring
CBB Harden Aluminum Anodized 50mm Differential Slip Ring
CBB Harden Aluminum Anodized 50mm Differential Slip Ring
Specifications
Brand Name :
CBB
Model Number :
DR3
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 piece
Price :
USD33/piece
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces per month
Delivery Time :
7-30 days
Packaging Details :
Plywood carton
Type :
Ley type
Material :
Harden aluminum
Surface :
Hard anodize
Size (OD*ID*Width) :
75*55*50mm
Application :
Big tension differential shaft
HS code :
8443919090
Description

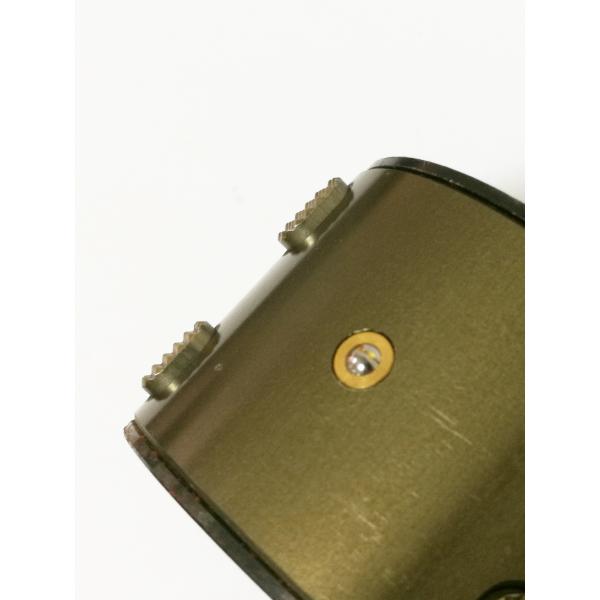

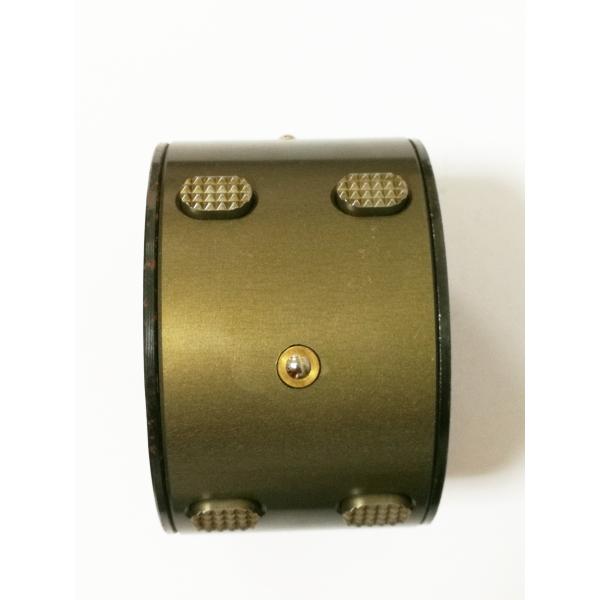

Harden Aluminum With Hard Anodize Differential Slip Ring Key Type 50mm Width

Introduction

Differential slip ring is main part of air differential shaft. Controlled by the tension system, let the compressed air which has a certain pressure come to shaft core, so that it will produce friction torque between the friction parts and the slip ring, and realize constant tension coiling and it will help solve the unwinding problems and material damages caused by uneven thickness and tension of each roll material.

Types and Specifications of our differential shaft ring

A. 3 inch

3 inch key type friction element
Outside diameter Φ75.5mm
The maximum action diameter Φ78mm
Standard width 15,20,25,30,35,40,50mm
Standard internal diamete

Φ45,Φ50,Φ55,Φ60mm

Size of normally differential ring

Outside diameter: Φ75.5mm

The maximum action diameter: Φ78mm

Standard width: 50mm(can change to other size if needed)

Standard internal diamete: Φ60mm (can change to 50mm or 55mm or other sizes if needed)

Application
The applicable Machine The applicable Material
Slitting machine Electronic
Coating machine Capacitor
Cutting machine Battery film
Printing machine Plastic wrap
Compounding machine Packaging
Paper making machine Composite film
Bag makeing machine Metal foil
Embossing machine Paper and pvc sheet
Advantages
Speed: The use of differential shaft ring improves the speed of the production of the machines
Automation: Differential shaft ring can reduce the difficulty of winding
Labor cost: No need for skilled workers, lower labor costs
Economic benefit: Greatly improve the product, reduce the cost

About CBB Ruian Chuangbo Machinery

The company is specialized in manufacturing of machinery parts, and has been granted with independent import and export rights. The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on.

CBB Harden Aluminum Anodized 50mm Differential Slip Ring

CBB Harden Aluminum Anodized 50mm Differential Slip RingCBB Harden Aluminum Anodized 50mm Differential Slip Ring

CBB Harden Aluminum Anodized 50mm Differential Slip Ring
CBB Harden Aluminum Anodized 50mm Differential Slip Ring
