Specifications
Brand Name :
CBB
Model Number :
STO/STW 50
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 set
Price :
USD700/set
Payment Terms :
T/T, Western Union
Supply Ability :
300 sets per month
Delivery Time :
7-30 days
Packaging Details :
Plywood carton
Model :
STO/STW 50
Max loading :
2800kg
Max torque :
110KGFM
Weight :
Around 50kg
Shaft size :
≤35mm
HS code :
7326909000
Description

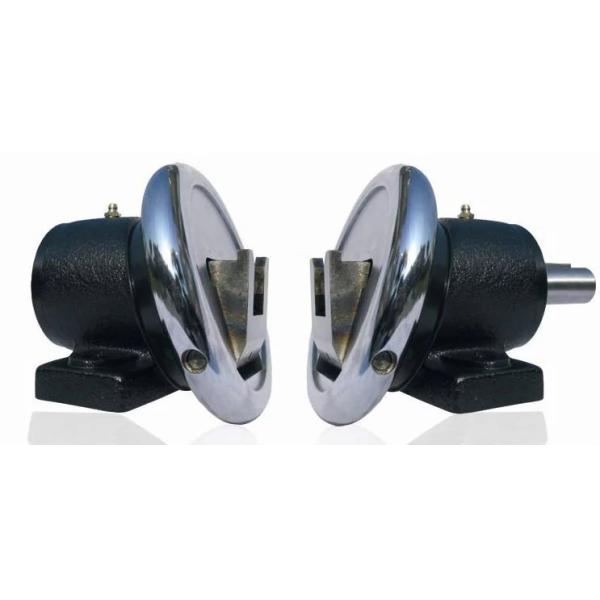

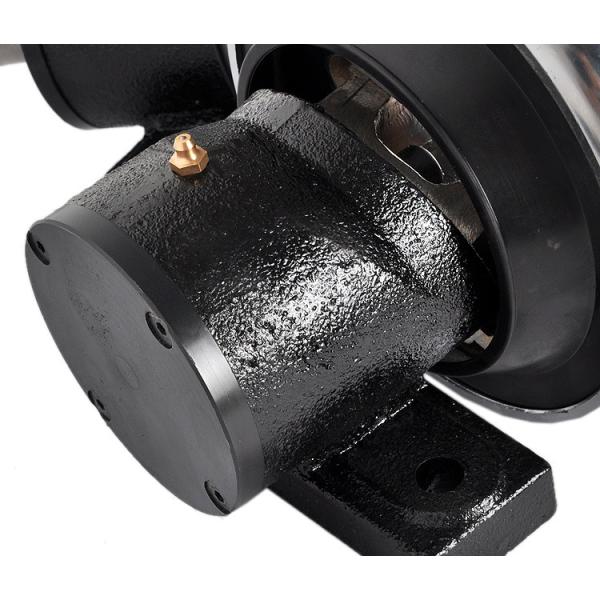

Pillow Type STO/STW 50 Steel Safety Chucks Loading 2800kg Safe Operte
Introduction

Standard safety chucks provide economic and easy to install, the design, and for the transmission links, such as frequent moves from the provision of fast,Security, and indeed simple and from the operation of the shaft. Moreover, the transmission part of the security chuck size can be based on customer specifications machinery.

Product details

Size Maximum load Maximum torque Standard square bar size Unit Weight
FLO/FLW STW/STO 28 800 kg 18 KGFM 25/30 mm(22~30 mm avaiable) 18 KG
FLO/FLW STW/STO 35 1600 kg 35 KGFM 32/38 mm (30~4O mm avaiable) 27 KG
FLO/FLW STW/STO 50 2800 kg 110 KGFM 40/45/50 mm (40~50 mm avaiable) 53 KG
FLO/FLW STW/STO 75 7000 kg 235 KGFM 55/65/75 mm (50~80 mm avaiable) 120 KG
FLO/FLW STW/STO 90 12000 kg 1000 KGFM 80~120 mm 300 KG
FLO/FLW STW/STO 120 22000 kg 2000 KGFM 120~180 mm 600 KG
FLO/FLW STW/STO 180 32000 kg 2500 KGFM 170~200 mm 1000 KG
FLO/FLW STW/STO 230 64000 kg 4100 KGFM 170~230 mm 1200 KG

Model Type: STO/STW 50
Maximum load Maximum torque Square bar size Weight
2800kg 110 KGFM 40~50MM 53kg
Application Printing machinery
Bag making machinery
Paper machinery
Wire and cable machinery
Roll of wire machinery
Bundle bag machinery
Textile machinery
Weaving machinery
Woodworking machinery
Other machinery

Features

1. The safety chuck provides a fast, simple and safe coupling for the transmission and transmission parts with frequent movements.

2 . The safety chuck is a quick-connecting device that is applied to the receiving and discharging reels to save time for the operator to load and unload.
3. The dimensions of the safety chuck drive section can be designed and manufactured according to different mechanical specifications and characteristics

4. Safety chuck is needed for frequent connection transmission and out of the work of action mechanism, provides a quick and accurate, easy and safe coupling

Advantage

1. Safe chuck will provide the machine and operator a safer working place, avoid the high speed shaft running outside of the machine.

2. They provide for a quick change at the end of a production run (either winding or unwinding).Therefore, there is less down time during turn around and the more cost effective in operation.

3. Structure of the safety chuck is reasonable, good rigidity, can withstand a greater torque, to eliminate the phenomenon of loose rotation.

4. The use of special properties of super alloy steel materials, superior durability can make safety chuck life long.

Mount

SIZE A B C D E (f7) E-F H-G K
Type 28 61 8 4 28 25.3 0.15 0.5 1
Type 35 73 18 5 30 32.38.40 0.2 0.5 1.5
Type 50 81 13 5 32 40.45.50 0.3 0.5 2
Type 75 106 16 6 40 55.65375 0.4 0.5 3

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Countersink Information for Flange Mounted Type

SIZE ϕ A ϕ B C D
FLO/W 28 18 11 15 7
FLO/W 35 20 13 16 8
FLO/W 50 26 18 22 10.5
FLO/W 75 20 14 27 8

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe ChucksPillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks
