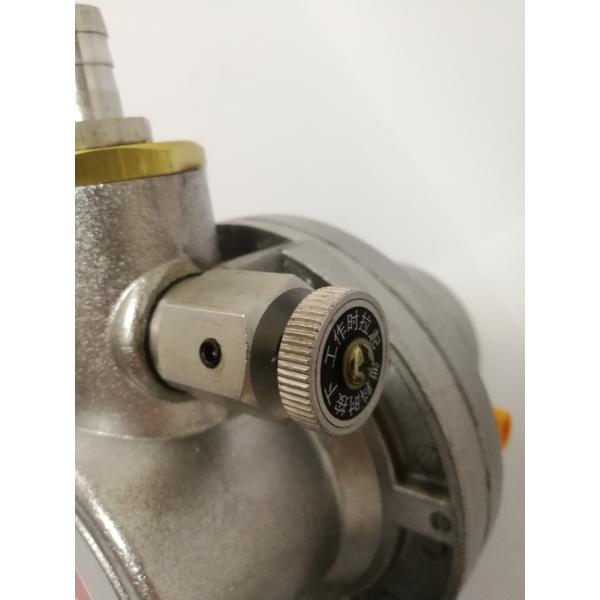

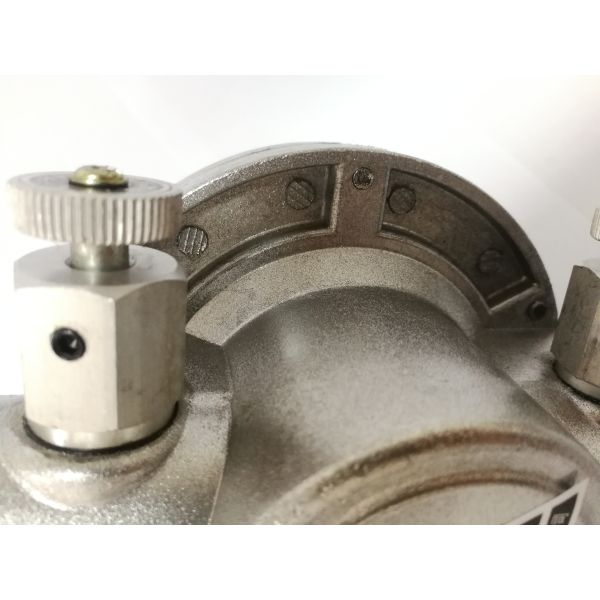

14L/Minute Air Operated Diaphragm Pump
14L/Minute Air Operated Diaphragm Pump
14L/Minute Air Operated Diaphragm Pump
14L/Minute Air Operated Diaphragm Pump
14L/Minute Air Operated Diaphragm Pump
14L/Minute Air Operated Diaphragm Pump
Specifications
Brand Name :
CBB
Model Number :
QDM-902
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 piece
Price :
USD100/piece
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Plywood carton
Model NO. :
QDM-902
Material :
Aluminum
Power :
Press air
Working :
Diaphragm
Diaphragm :
Teflon
Flow :
14L/minute
Pressure :
0.25-0.60MPa
Usage :
Ink pump
Weight :
3.5kg
HS code :
8413503990
Description

QDM-902 Pneumatic Diaphragm Pump For Mix Ink Safe Aired QDM-902 Single Phase
Introduction

Pneumatic diaphragm pump is a new type of conveying machinery. Its power supply is compressed air. It can take out various corrosive liquid with particles, liquid with high viscosity, volatile, poisonous. This pump is characterized by no need to irrigation water diversion for fire blast. It can pump flowing liquid and transport some free running dielectric, fire and explosion protection.

Principle
It takes the air as momentum which compressed by air compressor. The needle valve adjust the air flow, which drive the membrane, then the pump transport the liquid.

The scope of application
Printing industry

Chemical industry producing printing ink(water-based, oily) solvent, ethanol, tuluol, acetone, dope and so on

Other industry need the safe pneumatic pump.

Characteristic
1. Low air consumption, the medium flow regulation is stepless regulation, and it is adjusted by air inlet valve.
2. Membrane is made of corrosion resistant material, so it can be used to transport corrosive medium.
3. Low failure rate, easy to install, convenient maintenance.
4. The pump shell is made of high quality material, the inner parts are made of stainless steel and copper, all of those make the pump light, beautiful, stainless and anticorrosive.

Technical parameters
Type: QDM-902
Working pressure: 0.25-0.60 Mpa
Maximum Output Flow: 14L/min
Maximum transmission viscosity: 1000 centipoise
Biggest suction: 6 meters
Medium in and out connection threads: G1/4 inch
The intake connecting thread: G1/4 inch

Name Model Working Pressure Max
Suction		 Max
output
flow		 Linking screws State of the fluid
Ink Inlet Ink Outlet Air Inlet
One-way Pneumatic Diaphragm Pump QDM-902 0.25-0.6(Mpa) 6M 14L G1/4" G1/2"
G1/4"		 G1/4" Having
Pulse
Two-way Pneumatic Diaphragm Pump QDM-901 0.12-0.8(Mpa) 8M 26L G1/2" G1/2" G1/4" Zero
Pulse

14L/Minute Air Operated Diaphragm Pump14L/Minute Air Operated Diaphragm Pump

14L/Minute Air Operated Diaphragm Pump

14L/Minute Air Operated Diaphragm Pump14L/Minute Air Operated Diaphragm Pump

14L/Minute Air Operated Diaphragm Pump

14L/Minute Air Operated Diaphragm Pump

14L/Minute Air Operated Diaphragm Pump
