4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump
4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump
4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump
4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump
4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump
4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump
Specifications
Brand Name :
FEIYA
Model Number :
QDM-901
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 piece
Price :
USD250/piece
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Plywood carton
Model NO. :
QDM-901
Flow :
26L/minute
Pressure :
0.12-0.80MPa
Air inlet :
G1/4"/G1/2"
Ink inlet :
G1/2"
Ink outlet :
G1/2"
Diaphragm material :
Special plastic
Weight :
4.5kg
Feature :
No pulse
HS code :
8413503990
Description

Printing Machine Use Ink Mixed Pneumatic Diaphragm Pump Double Phase QDM-901
Brief introduction

QDM-901 double phase pneumatic diaphragm pump is a new type of conveying machinery, using compressed air as a power source for a variety of corrosive liquid, liquid with particles, high viscosity, volatile, flammable, poisonous liquid. The main feature of this pump is that without irrigation water, can pumping liquid flow and some medium which is easy flow, avoiding fire and explosion. This pump is suitable for water-based ink printing, four plate printing machine, flexo and glue laminating machine. Widely used in pharmaceutical, sewage treatment, food, chemical, automobile, paint and other industries.

Technical parameters

Name Model Working Pressure Max
Suction		 Max
output
flow		 Linking screws State of the fluid
Ink Inlet Ink Outlet Air Inlet

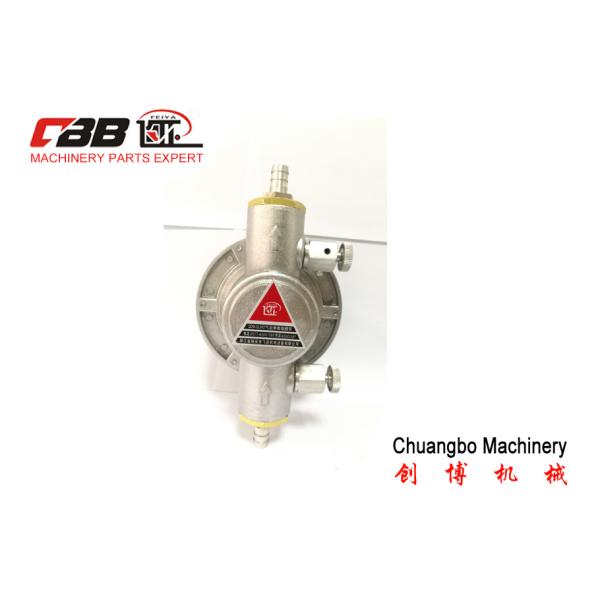

One-way Pneumatic Diaphragm Pump QDM-902 0.25-0.6(Mpa) 6M 14L G1/4" G1/2"
G1/4"		 G1/4" Having
Pulse

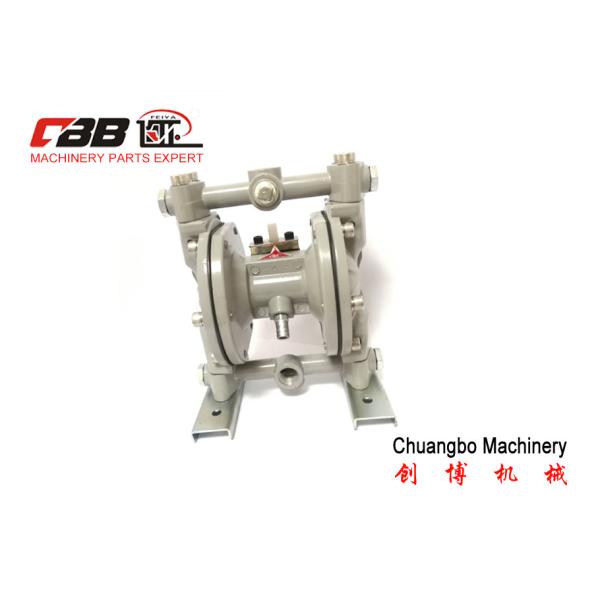

Two-way Pneumatic Diaphragm Pump QDM-901 0.12-0.8(Mpa) 8M 26L G1/2" G1/2" G1/4" Zero
Pulse

Principle
Double phase diaphragm pump QDM-901 takes the air as momentum which compressed by air compressor. The needle valve adjust the air flow, which drive the membrane, then the pump transport the liquid. The overall structure of the QDM-901 is more optimized, the pump chamber and the main road are significantly strengthened, and the selfpriming function and flow head are greatly improved. The main feature of this pump is that without irrigation water, can pumping liquid flow and some medium which is easy flow, avoiding fire and explosion.

Characteristic

1. Using air as power, low gas consumption, medium flow regulation is stepless regulation. Suitable for use in flammable and explosive environment.

2. Diaphragm is made of corrosion resistant material, can transport a variety of corrosive medium.

3. Diaphragm Pump is small, light and easy to move. Low failure rate, easy to install and convenient maintenance.

4. The pump shell is made of high quality material, internal parts are made of stainless steel and copper, of all those make the pump light, beautiful, stainless and anticorrosive. The working life of the pump is very long.

5. The pump can be used in many different industries.

Application

Printing industry

Chemical industry producing printing ink(water-based, oily) solvent, ethanol, tuluol, acetone, dope and so on

Other industry need the safe pneumatic pump.

Installation

1 The pump must be mounted vertically, pay attention to the direction of the arrow.

2 Connect hose to the ink port.

Why choose CBB Chuangbo

A. Reliable supplier in China

Established in 1995, CBB Chuangbo has been in machinery parts for 25 years, now we are biggest manufacturer of machinery parts in East China.

B. Hight quality material

High quality of steel shell for the brake and imported powder for longer life of the brake.

C. Cooling treatment

Insider there is a small cooling fan inside the brake, cooling the tempreture and make the brake stable.

D. Quality control

We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.

4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump

4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump

4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump

4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump

4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump

4.5kg Double Phase 0.80MPa Pneumatic Diaphragm Pump
