Small Runout HV300 Offset Printing Machine Parts
Small Runout HV300 Offset Printing Machine Parts
Small Runout HV300 Offset Printing Machine Parts
Small Runout HV300 Offset Printing Machine Parts
Small Runout HV300 Offset Printing Machine Parts
Small Runout HV300 Offset Printing Machine Parts
Specifications
Brand Name :
CBB
Model Number :
Al300
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 piece
Price :
USD10-1000/piece
Payment Terms :
T/T, Western Union
Supply Ability :
15000 pieces per month
Delivery Time :
7-30 days
Packaging Details :
Plywood carton
Material :
6063 Aluminum alloy
Colour :
Silver white
Anodize :
HV300
Balacing :
<2g
Concentricity :
<0.02
Runout :
<0.03mm
Thickness :
4.0-6.0mm
Length :
Customized
Groove :
Cross line/ Center line
HS code :
8443919090
Description

Good Balancing Small Runout Aluminum Alloy Guide Roller For Printing Machine

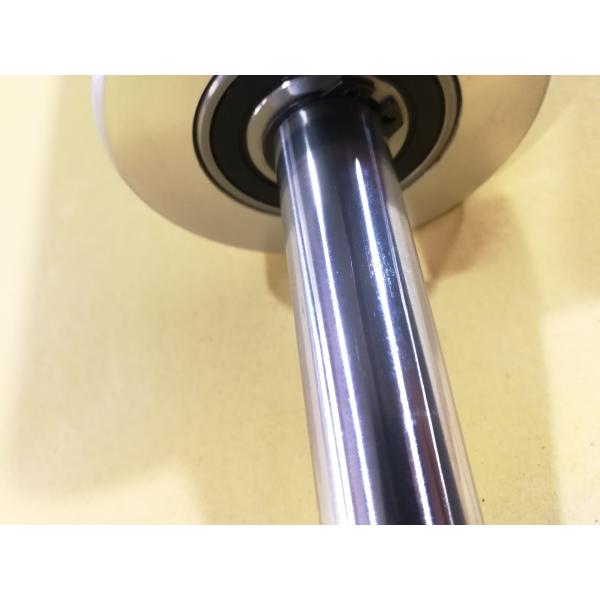

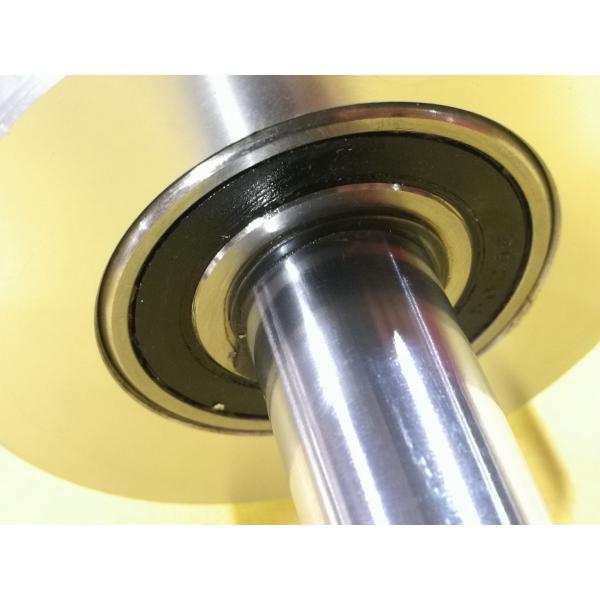

Aluminum guide roller (also known as "aluminum alloy guide roll") is made of high quality aluminum alloy materials, and it has all kinds of modules and sizes with ribs structure and the outside diameter is from 25mm to 320mm. Dynamic balance of the aluminum roller will be small than 2g. Roll surface gloss can be 0.8, concentricity can reach to 0.02mm. Special cheated in the shaft axle of the roller, with imported bearings, the aluminum guide roller works well even at high speed.

Type of Roller

Type of roller Hollow type
Dead shaft type
Live shaft type
Surface treatment HV300 soft anodize
HV700 hard anodize
HV700 hard anodize with mirror surface
Teflon
Surface groove Plain

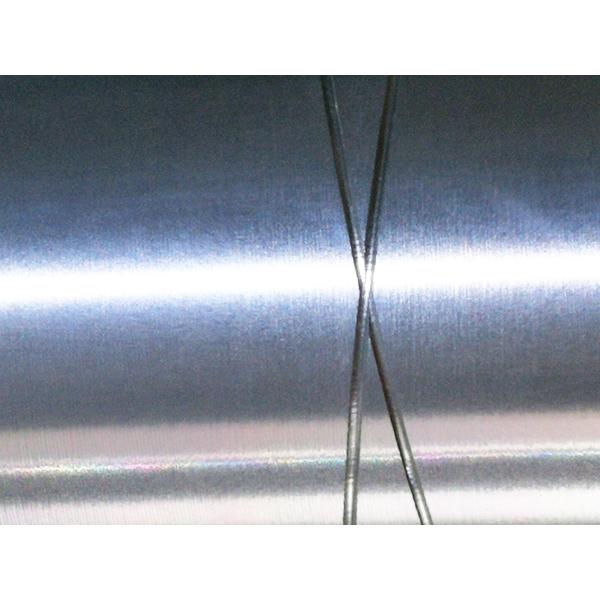

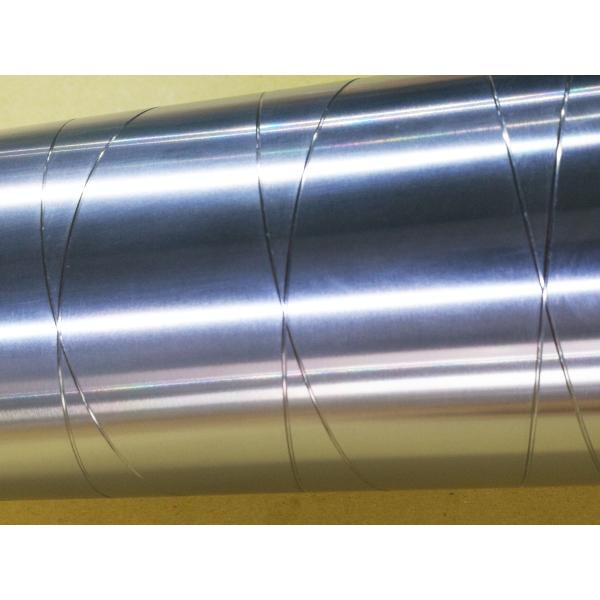

Cross line
Center line
Grooved line
Anilox line
Rolla line

Parameters

Production Aluminum alloy guide roller
Length Max.6,000mm
Diameter Max.320mm
Material Aluminum 6063 T6, aluminum 6061 T6, etc.
Surface Treatment Hard anodized, anodized
Runout ≥0.01mm
Dynamic Balance G2.5
Surface Roughness Grinding: ≤Ra0.8um; Mirror-like: ≤Ra0.4um
Surface Hardness Could be ≥700HV
Application Fields Printing, converting, plastic film, textile machinery, etc.
Package Wooden case

Sizes

We can produce all sizes of aluminum alloy guide roller for machines, here are the normal sizes of the roller and customized is available too.

Here are the normal size of the aluminum alloy guide roller

Finished Diameter/mm Material Diameter/mm Inner Diameter/mm Thickness
φ22 φ22.7 φ15 3.85
φ25 φ25 φ18 3.5
φ28 φ28 Φ22 3
φ30 φ30.1 φ20.1 5
φ34 φ33.8 φ25.4 4.2
φ35 φ35 φ26 4.5
φ38 φ38.2 φ30.2 4
φ40 φ40.1 φ30.1 5
φ42 φ42 Φ33 4.5
φ45 Φ45 Φ35 5
φ50 φ50.2 φ40.2 5
φ51 φ51 Φ38.6 6.2
φ52 φ52.3 φ45.3 3.5
φ55 φ55 φ45 5
φ57 φ57.2 φ50.2 3.5
φ60 φ60 φ50 5
φ61 Φ60.6 Φ50.6 5
φ70 φ70 φ61.0 4.5
φ72 φ72.4 φ64.4 4
φ75 φ75 φ66 4.5
φ75 φ75 φ60 7.5
φ77 φ77.4 φ70 3.7
φ80 φ81.3 φ73.7 3.8
φ80 φ80.2 φ70 5.1
φ80 φ80 φ64 8
φ90 φ90.5 φ82.9 3.8
φ90 φ90.6 φ75.6 7.5
φ100 φ100.5 φ92.5 4
φ100 φ100.8 φ89.80 5.5
φ110 φ111 φ101.8 4.6
φ120 φ121.8 φ111.8 5
φ120 φ120.4 φ108.4 6
φ130 φ131 φ120 5.5
φ150 φ151.5 φ139.5 6
φ150 φ151.5 φ135.5 8
Φ162 Φ162.5 Φ146.5 8
Φ172 Φ172.2 Φ156.2 8
φ180 φ180 φ160 10
φ200 φ202 φ186 8
φ240 φ240 φ208 16
Φ320 Φ320 Φ296 12

About CBB Chuangbo

Ruian Chuangbo Machinery Co., Ltd. established in 1995, we are specialized in the machinery parts for 25 years. We has been granted with independent import and export rights, the products sold to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on. We have a factory more than 20,000 square meters and more than 180 workers. We focus in the machinery parts, such as Aluminum alloy guide roller, Air expanding shaft and other parts, we are one of the biggest supplier of aluminum alloy guide roller in easst China and annual turnover exceeds USD 8 million in 2019, and company listed in Dutch Caribbean Securities in end of 2019 and we are sure we will have a new start in 2020.
