50NM Magnetic Powder Clutch
50NM Magnetic Powder Clutch
50NM Magnetic Powder Clutch
50NM Magnetic Powder Clutch
50NM Magnetic Powder Clutch
50NM Magnetic Powder Clutch
50NM Magnetic Powder Clutch
50NM Magnetic Powder Clutch
Specifications
Brand Name :
CBB
Model Number :
FZ50A
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 piece
Price :
USD200
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Plywood carton
Material :
Steel
Type :
Shaft type
Voltage :
24V
Torque :
50NM
Used :
Unwind
Speed :
1400rpm
Weight :
15kg
HS code :
8505200000
Description

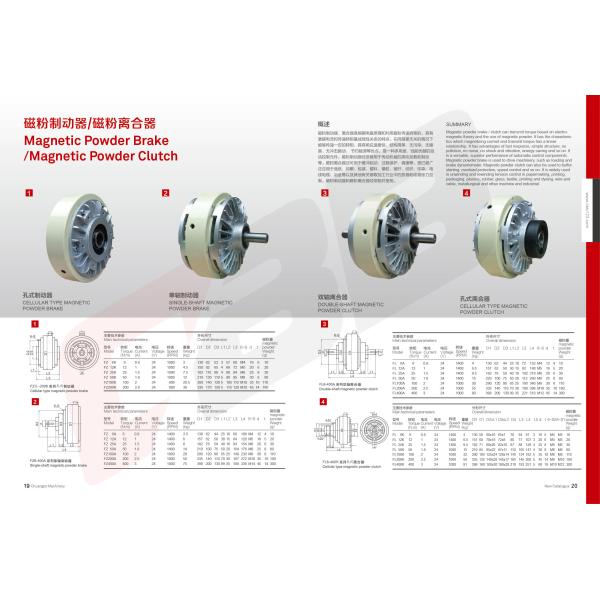

Magnetic powder brake/clutch is a type of auto-control component with high-performance which uses driving and driven units as main body, powder (magnetic powder) with highmagnetic conductivity as working medium and exciting current as control means so as to achieve control transfer/braking torque and to keep the linear relationship between input current and output torque.
The magnetic powder clutch and magnetic power brake are utilise magnetic powder under the galvanomagnetic effect to transfer torque, It has advantages of magnetizing current and transmit linear relationship and rapid response speed, simple structure, no impact, no vibration and no noise, no pollution. It is a multi-purpose, superior performance of automatic control components, widely used in various industries of machinery loading, brake and compressing loading system and rewinding tension control winding.
The products are widely used in winding and unwinding starting/braking control, stamping startup, overload protection, position control, tension control, artificial load and relevant fast control systems.

Model Torque/N.m Current/A Voltage/V Speed/rpm WEight/kg
FL6A 6 0.80 24 1400 4
FL12A 12 1.00 24 1400 6.5
FL25A 25 1.50 24 1400 9.5
FL50A 50 1.80 24 1400 15
FL100A 100 2.00 24 1000 30
FL200A 200 2.50 24 1000 55
FL400A 400 3.00 24 1000 80

50NM Magnetic Powder Clutch50NM Magnetic Powder Clutch
