6N.M Magnetic Powder Clutch
6N.M Magnetic Powder Clutch
6N.M Magnetic Powder Clutch
6N.M Magnetic Powder Clutch
6N.M Magnetic Powder Clutch
6N.M Magnetic Powder Clutch
Specifications
Brand Name :
CBB
Model Number :
FL6K
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 piece
Price :
USD80
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Plywood carton
Input :
DC 24V
Current :
0.8A
Torque :
6NM
Hollow diameter :
50mm
Used :
Rewind
Speed :
1400rpm
Weight :
4.00kg
HS code :
8505200000
Description

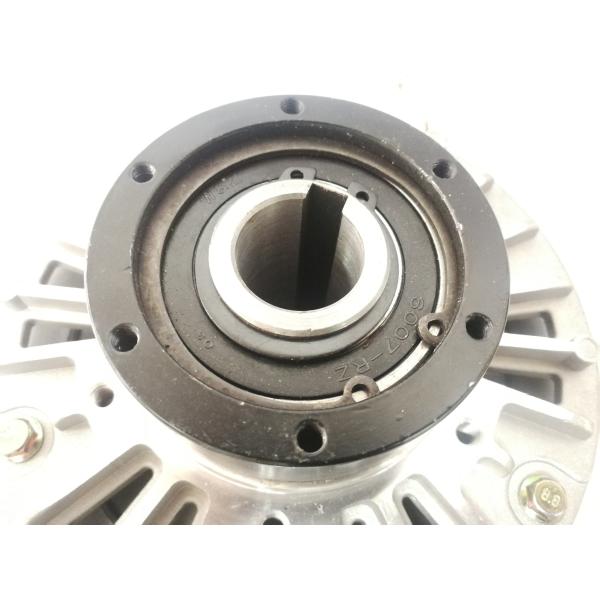

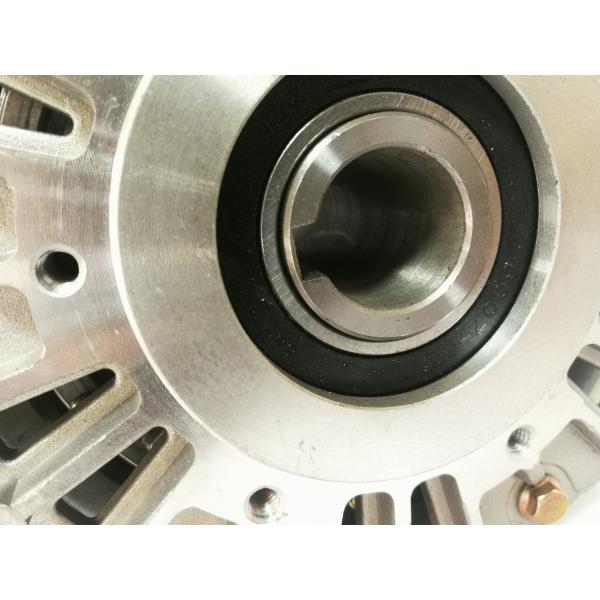

Hollow 0.6kg Electromagnetic Powder Clutch FL6K 6N.M 24V Input

Introduction

Magnetic clutch can transmit torque based on electromagnetic theory and the use of magnetic powder. It has advantages of fast response, simple structure, no pollution, no noise, no shock and vibration, energy-saving and so on. It is a versatile, superior performance of automatic control components. Magnetic clutch can also be used to buffer starting, overload protection, speed control and so on

Details for clutch

Type Hollow magnetic powder clutch
Model FL6K
Torque 6NM/0.6kg
Input DC24V
Current 0.8A
Type Powder clutch
Warranty 1 year

Parameters

Model Torque/N.m Current/A Voltage/V Speed/rpm Weight/kg
FL6K 6 0.80 24 1400 4.0
FL12K 12 1.00 24 1400 6.5
FL25K 25 1.50 24 1400 9.5
FL50K 50 1.80 24 1000 15.0
FL100K 100 2.00 24 1000 32.0
FL200K 200 2.80 24 1000 50.0
FL400K 400 3.00 24 1000 91.0

Model D0(mm) D1(mm) D2*L1(mm) D3*L2(mm) D4(mm) L3(mm) L4(mm) L5(mm) d(mm) t(mm) 6-S2(mm) 6-S1(mm) Magnetic powder(g)
FL6K 130 50 60*16 65*7 70 64 91 3 16 5 M4 M5 10
FL12K 157 60 70*18 72*8 80 77 107 3 20 6 M4 M5 20
FL25K 182 71 80*20 82*10 97 88 129 4 25 8 M5 M6 30
FL50K 219 85 95*22 97*11 110 105 147 4 30 8 M6 M6 60
FL100K 290 105 125*24 128*14 145 134 182 5 35 10 M8 M8 110
FL200K 335 125 140*28 145*17 165 145 200 5 45 14 M8 M10 180
FL400K 398 160 180*30 190*20 210 193 251 5 60 18 M10 M12 300

Application

Printing machine

Paper making machine

Packaging machine

Plastics machine

Rubber machine

Textile machine

Other machines

Featured advantages

1. Fast response. Instant and fast reaction to commands.

2. Costly. Excellent heat dissipation and quality materials mean long life, even under high frequency and high tempreture conditions.

3. Easy to install. No dust brush is needed, and operation is simper and easier.

4. No need adjust of the motor. No need adjustment for the motor, and once it is installed only very minor adjustments are needed.

5. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Shipping
1.We delivery packages within 3~7 working days after payment received.
2.Express via DHL,FedEx,TNT,EMS,UPS,etc. If you need to ship by your way,please contact with us.

Why choose CBB Chuangbo

A. Reliable supplier in China

Established in 1995, CBB Chuangbo has been in machinery parts for 25 years, now we are biggest manufacturer of machinery parts in East China.

B. Hight quality material

High quality of steel shell for the brake and imported powder for longer life of the brake.

C. Quality control

We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.

About CBB Ruian Chuangbo
Ruian Chuangbo Machinery Co., Ltd. established in 1995, is specialized in manufacturing of machinery parts. The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on
