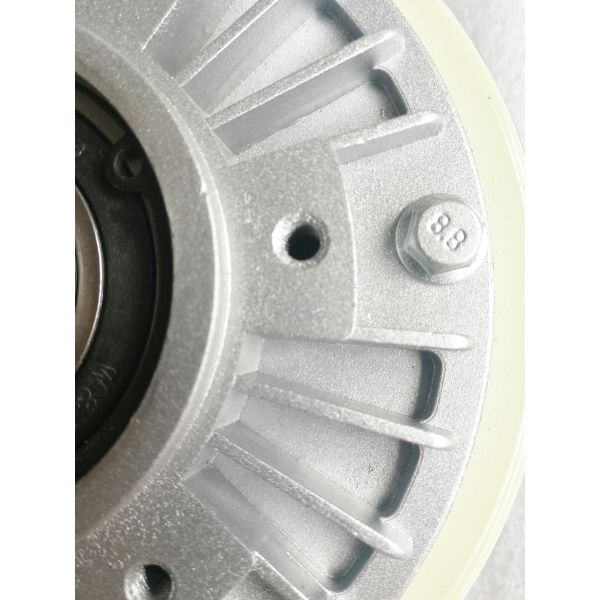

0.6kg Magnetic Powder Brake
0.6kg Magnetic Powder Brake
0.6kg Magnetic Powder Brake
0.6kg Magnetic Powder Brake
0.6kg Magnetic Powder Brake
0.6kg Magnetic Powder Brake
Specifications
Brand Name :
CBB
Model Number :
FZ6K
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 piece
Price :
USD80
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Plywood carton
Type :
Hollow type
Voltage :
24V
Torque :
6NM
Used :
Rewind
Control :
Tension controller
Speed :
1000rpm
Weight :
3.00kg
HS code :
8505200000
Description

Hollow Type 0.6kg Magnetic Powder Brake 6N.M Tension Control 24V Input FZ6K

Introduction

Magnetic brake can transmit torque based on electromagnetic theory and the use of magnetic powder. It has advantages of fast response, simple structure, no pollution, no noise, no shock and vibration, energy-saving and so on. It is a versatile, superior performance of automatic control components. Magnetic brake is used to drive machinery, such as loading and brake dynamometer.

Featured advantages

1. Fast response. Instant and fast reaction to commands.

2. Costly. Excellent heat dissipation and quality materials mean long life, even under high frequency and high tempreture conditions.

3. Easy to install. No dust brush is needed, and operation is simper and easier.

4. No need adjust of the motor. No need adjustment for the motor, and once it is installed only very minor adjustments are needed.

5. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Application

Paper making machine

Printing machine

Packaging machine

Plastics machine

Rubber machine

Textile machine

Other machines

Parameters

Model Torque/N.m Current/A Voltage/V Speed/rpm Weight/kg
FZ6K 6 0.80 24 1000 3.0
FZ12K 12 1.00 24 1000 4.5
FZ25K 25 1.50 24 1000 7.5
FZ50K 50 1.80 24 1000 12.0
FZ100K 100 2.00 24 800 20.5
FZ200K 200 2.80 24 800 30.0
FZ400K 400 3.00 24 800 55.0

Model D1(mm) D2(mm) D3(mm) L1(mm) L2(mm) L3(mm) 6-S(mm) d(mm) t(mm) Magnetic powder(g)
FZ6K 130 62 52 3 57 60 M4 16 6 10
FZ12K 150 82 65 4 68 72 M5 20 6 20
FZ25K 182 110 90 4 80 84 M6 25 8 30
FZ50K 219 130 110 5 90 95 M6 30 8 60
FZ100K 260 140 120 5 105 110 M8 35 10 110
FZ200K 335 170 150 5 115 120 M10 45 14 180
FZ400K 398 200 180 6 135 140 M14 60 18 300

Five Core strengths:

1. The first domestic independent R & D manufacturer and 25 years of professional manufacturing.

2. Casting exquisite, beautiful, practical and durable.

3. Complete specifications, cost-effective and spot supply.

4. Independent research and development, special specifications can be customized.

5. Selected materials, high-tech treatment, up to the international standard test.

About CBB Ruian Chuangbo
Ruian Chuangbo Machinery Co., Ltd. established in 1995, is specialized in manufacturing of machinery parts. The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on
