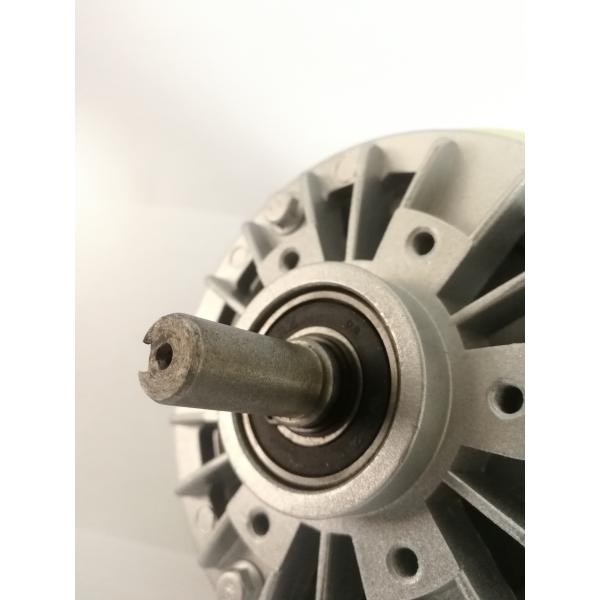

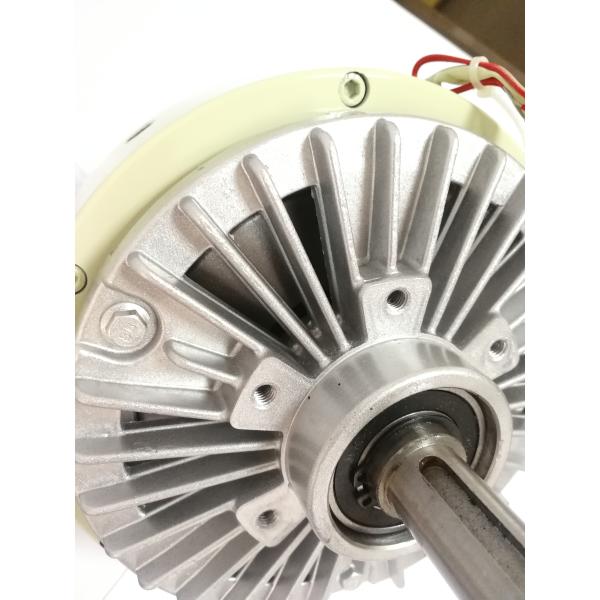

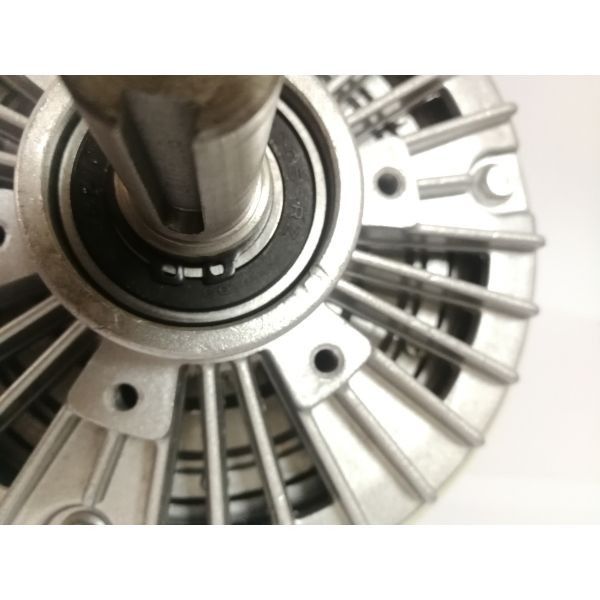

50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
Specifications
Brand Name :
CBB
Model Number :
FL50A
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 piece
Price :
USD180
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Plywood carton
Type :
Shaft type
Input :
DC 24V
Current :
1.8A
Torque :
50NM
Speed :
1400rpm
Shaft diameter :
25mm
Weight :
15.0kg
HS code :
8505200000
Description

Most Useful 50NM 5kg Shafted Electromagnetic Powder Clutch FL50A Rewind Use

Introduction

Shafted Electromagnetic Powder Clutch is a type of auto-control component with high-performance which uses driving and driven units as main body, powder (magnetic powder) with high magnetic conductivity as working medium and exciting current as control, means so as to achieve control transfer/braking torque and to keep the linear relationship between input current and output torque.

Powder Clutch plays an increasingly important role in all industrial fields and demonstrates great advantages over other components.

Appllication

Color: Yellow cream
Packing: Standarder Carton box
Warranty: 1 year
Application 1. Paper making
2. Printing
3. Plastic items
4. Rubber industry
5. Textile
6. printing and dyeing, wire and cable

Details for clutch

Type Shafted type magnetic powder clutch
Model FL50A
Torque 50NM/5.0kg
Input DC24V
Current 1.8A
Type Powder clutch
Warranty 1 year

Features

  1. The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.
  2. The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.

Parameters

Model Torque/N.m Current/A Voltage/V Speed/rpm Weight/kg
FL6A 6 0.80 24 1400 4.0
FL12A 12 1.00 24 1400 6.5
FL25A 25 1.50 24 1400 9.5
FL50A 50 1.80 24 1400 15.0
FL100A 100 2.00 24 1000 30.0
FL200A 200 2.50 24 1000 55.0
FL400A 400 3.00 24 1000 80.0

Model D1(mm) D2(mm) D3(mm) L1(mm) L2(mm) L3(mm) 6-S(mm) d(mm) t(mm) Magnetic powder(g)
FL6A 130 62 44 25 10 72 M4 12 4 10
FL12A 157 62 50 30 15 93 M5 16 5 20
FL25A 182 78 58 40 16 102 M6 20 6 30
FL50A 220 100 75 50 20 112 M6 25 8 60
FL100A 290 120 90 65 25 160 M8 30 8 110
FL200A 335 140 110 70 30 190 M10 35 10 180
FL400A 398 200 130 99 35 221 M12 45 14 300

Shipping
1.We delivery packages within 3~7 working days after payment received.
2.Express via DHL,FedEx,TNT,EMS,UPS,etc. If you need to ship by your way,please contact with us.

Why choose CBB Chuangbo

A. Reliable supplier in China

Established in 1995, CBB Chuangbo has been in machinery parts for 25 years, now we are biggest manufacturer of machinery parts in East China.

B. Hight quality material

High quality of steel shell for the brake and imported powder for longer life of the brake.

C. Quality control

We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.

50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
50NM 5kg Shafted 1400rpm Magnetic Powder Clutch50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
50NM 5kg Shafted 1400rpm Magnetic Powder Clutch

50NM 5kg Shafted 1400rpm Magnetic Powder Clutch

50NM 5kg Shafted 1400rpm Magnetic Powder Clutch

50NM 5kg Shafted 1400rpm Magnetic Powder Clutch
