12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light
12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light
12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light
12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light
Specifications
Brand Name :
BEECORE
Model Number :
BHC3003
Certification :
ISO9001, ISO14001
Place of Origin :
Suzhuo, Jiangsu Province, China
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, PayPal
Supply Ability :
1000pcs per day
Delivery Time :
7-15working days
Packaging Details :
Plywood case
Product name :
Aluminum honeycomb louver
Color :
Black
Side length :
3mm or Customizable
Size :
200*300 or Customizable
Cell size :
5.20mm or Customizable
Materials :
3003
Thickness :
12mm or Customizable
Foil thickness :
0.05mm
Advantage :
Anti glare
Applications :
Lighting industry or other
Description

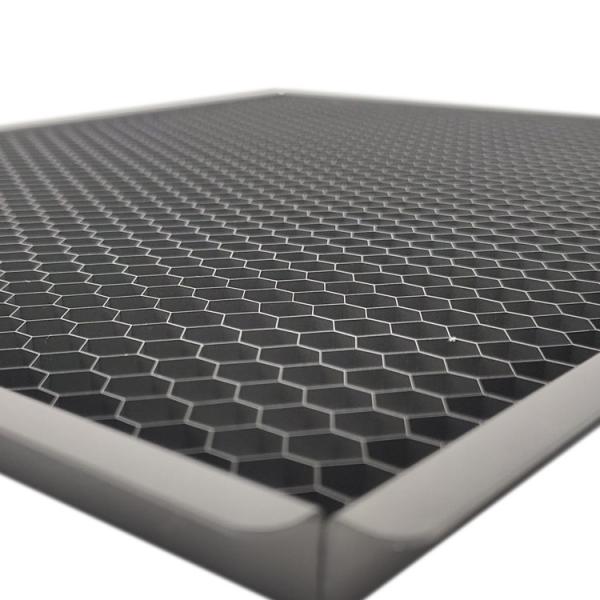

Aluminum Honeycomb Grid Core Black With Frame Is Used For Various LED Fill Light

1. Descriptions:

Aluminum honeycomb grid core has the advantages of regular hexagon, good mechanical properties and flat surface. It is mainly used for all kinds of intelligent traffic lights, led fill lights, film and television lamps and photographic accessories, which is conducive to anti glare and soft lighting to make the beam more uniform. It can be painted in black or other colors. Aluminum honeycomb grid core can design the shape and specification of the product according to customer requirements, and can also add any material border.

2. Specifications:

Aluminum honeycomb grid core
Specifications Side length (mm) Foil Thickness (mm) Density (kg/m³)
BHC3003-0.4-0.015L 0.4 0.015 137
BHC3003-0.5-0.015L 0.5 0.015 137
BHC3003-0.5-0.021L 0.021 190
BHC3003-0.6-0.015L 0.6 0.015 151
BHC3003-0.6-0.021L 0.021 158
BHC3003-0.8-0.021L 0.8 0.021 118
BHC3003-0.8-0.025L 0.025 144
BHC3003-0.8-0.03L 0.03 169
BHC3003-1-0.025L 1 0.025 115
BHC3003-1-0.03L 0.03 137
BHC3003-1-0.04L 0.04 183
BHC3003-1.5-0.03L 1.5 0.03 90
BHC3003-1.5-0.04L 0.04 122
BHC3003-1.5-0.05L 0.05 152
BHC3003-1.83-0.04L 1.83 0.04 99
BHC3003-1.83-0.05L 0.05 123
BHC3003-1.83-0.06L 0.06 148
BHC3003-2-0.04L 2 0.04 90
BHC3003-2-0.05L 0.05 113
BHC3003-2-0.06L 0.06 135
BHC3003-2.5-0.04L 2.5 0.04 74
BHC3003-2.5-0.05L 0.05 92
BHC3003-2.5-0.06L 0.06 110
BHC3003-3-0.04L 3 0.04 61
BHC3003-3-0.05L 0.05 76
BHC3003-3-0.06L 0.06 91
BHC3003-3-0.08L 0.08 122
BHC3003-3.5-0.04L 3.5 0.04 55
BHC3003-3.5-0.05L 0.05 68
BHC3003-3.5-0.06L 0.06 82
BHC3003-3.5-0.08L 0.08 110
BHC3003-4-0.04L 4 0.04 46
BHC3003-4-0.05L 0.05 57
BHC3003-4-0.06L 0.06 68
BHC3003-4-0.08L 0.08 92
BHC3003-5-0.05L 5 0.05 46
BHC3003-5-0.06L 0.06 54
BHC3003-5-0.08L 0.08 72
BHC3003-5-0.1L 0.1 91
Shape Round, square
Clour Black
Alloy Al3003 and Al5052
Supply form Unexpanded (block, strip) or expanded(slice)
Unperforated

3. Aluminum honeycomb grid core has several advantages:

• Anti glare

• Light weight

• High strength

• Super flatness

• Fire retardant

• Sound insulation

• Environment protection

4. Applications:

• Pxygen generator equipments, Lighting industry, Film shooting, Traffic lights, Industry, Printing machine platform and so on.

12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light

5. Quality control:

A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for aluminum honeycomb grid (louver) of quality control of parts, processing, testing, packaging, etc.

6. Aluminum honeycomb grid core of more pictures:

12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light

12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light

7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, aluminum honeycomb core, aluminum hooneycomb louver, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light

8. Factory show

12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light

12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light

12mm Thickness Aluminum Honeycomb Grid Core Black With Frame Used For Various LED Fill Light

9. FAQ

Q1. What is aluminum honeycomb grid core usd for?

A: Aluminum honeycomb grid core which has excellent rigidity and is one of the best lighting materials. It has been widely used in the decoration of LED, lighting industry, film shooting, traffic lights, industry, furniture industry and so on.

Q2. What are the advantages of aluminum honeycomb grid core ?

A: Aluminum honeycomb grid core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution. When used in lamps, it is conducive to anti glare and make the light more uniform and soft.

Q3. What is the packaging method of aluminum honeycomb grid core ?

A: Aluminum honeycomb grid core of samples are packed in cardboard and bulk orders are packed in plywood cases.
