Specifications
Brand Name :
BEECORE
Model Number :
BHC1313
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
100pcs per day
Packaging Details :
Plywood case
Product name :
Aramid honeycomb core
Cell size :
3.2， 4.8, 6.4，9.5mm
Thickness :
2mm or Costomizable
Size :
1220*600mm or Costomizable
Density :
29, 48，96kg/m3 or Costomizable
Advantages :
Super light
Materials :
Aramid fiber paper
Color :
Brown
Package :
Plywood case
Applications :
Rail Transit, sport products or other
Description

2mm Thickness Industrial Grade Honeycomb Nomex Core Corrosion Resistance Super Light

1. Descriptions:

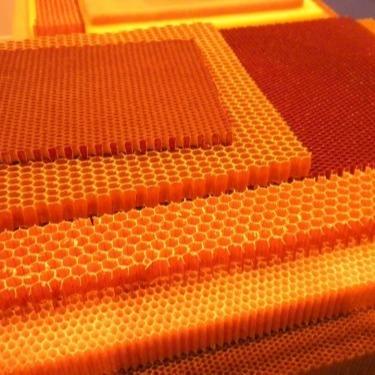

Aramid honeycomb core is a kind of hexagonal structural core material, which is widely used in aerospace and industrial fields. Phenolic resin has been used as reinforcing material in the production of aramid honeycomb core. With the continuous improvement of mechanical properties of aramid paper honeycomb core in some fields, the performance indicators of aramid paper honeycomb core products are also gradually improved to better meet the requirements of aerospace and industrial fields.

2. Specifications:

Specifications

Cell size

(mm/inch)

Density

(kg/m³)

Compression

strength

(MPa)

L-Shear

strength

(MPa)

W-Shear

strength

(MPa)
Commercial Grade Aramid Honeycomb Core
BHC1313-3.2-48 3.2 1/8 48 1.9 1.16 0.62
BHC1313-3.2-64 3.2 64 3.1 1.48 0.82
BHC1313-3.2-80 3.2 80 4.7 1.95 1.05
BHC1313-3.2-96 3.2 96 6.6 2.45 1.42
BHC1313-4.8-32 4.8 3/16 32 0.9 0.58 0.36
BHC1313-4.8-48 4.8 48 2.6 0.98 0.56
BHC1313-4.8-64 4.8 64 3.4 1.7 0.92
BHC1313-4.8-80 4.8 80 6 1.95 1.1
BHC1313-4.8-96 4.8 96 7.3 2.26 1.32
BHC1313-6.4-24 6.4 1/4 24 0.54 0.34 0.18
BHC1313-6.4-32 6.4 32 0.8 0.54 0.3
BHC1313-6.4-48 6.4 48 2.05 1 0.56
BHC1313-6.4-64 6.4 64 3.4 1.54 0.79
BHC1313-9.5-24 9.5 3/8 24 0.52 0.32 0.16
BHC1313-9.5-32 9.5 32 0.68 0.56 0.29
BHC1313-9.5-48 9.5 48 9.6 1.15 0.66
Aerospace Grade Aramid Honeycomb Core
BHC1313A-3.2-48 3.2 1/8 48 2 1.26 0.72
BHC1313A-3.2-64 3.2 64 3.2 1.58 0.92
BHC1313A-3.2-80 3.2 80 4.8 2.05 1.15
BHC1313A-3.2-96 3.2 96 6.7 2.55 1.52
BHC1313A-3.2-128 3.2 128 11.4 3.05 1.88
BHC1313A-3.2-144 3.2 144 13.3 3.15 2
BHC1313A-4.8-32 4.8 3/16 32 1 0.68 0.46
BHC1313A-4.8-48 4.8 48 2.7 1.08 0.66
BHC1313A-6.4-48 6.4 1/4 48 2.15 1.1 0.66
BHC1313A-9.5-48 9.5 3/8 48 9.7 1.25 0.76

3. Aramid honeycomb core has several advantages:

• Super light and high strength anti-fatigue

• Outstanding corrosion resistance and flame resistance

• Excellent environment adaptability and electric insulating

• Good dielectric properties and high stability

4. Applications:

• Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on

2mm Honeycomb Nomex Core Corrosion Resistance Super Light

2mm Honeycomb Nomex Core Corrosion Resistance Super Light

5. Aramid honeycomb core of more pictures:

2mm Honeycomb Nomex Core Corrosion Resistance Super Light

6. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

7. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

2mm Honeycomb Nomex Core Corrosion Resistance Super Light

8. Exhibition show

2mm Honeycomb Nomex Core Corrosion Resistance Super Light

2mm Honeycomb Nomex Core Corrosion Resistance Super Light

9. FAQ

Q1. What is aramid honeycomb core usd for?

A: Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.

Q2. What are the advantages of aramid honeycomb core?

A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.

Q3. What is the packaging method of aramid honeycomb core?

A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
