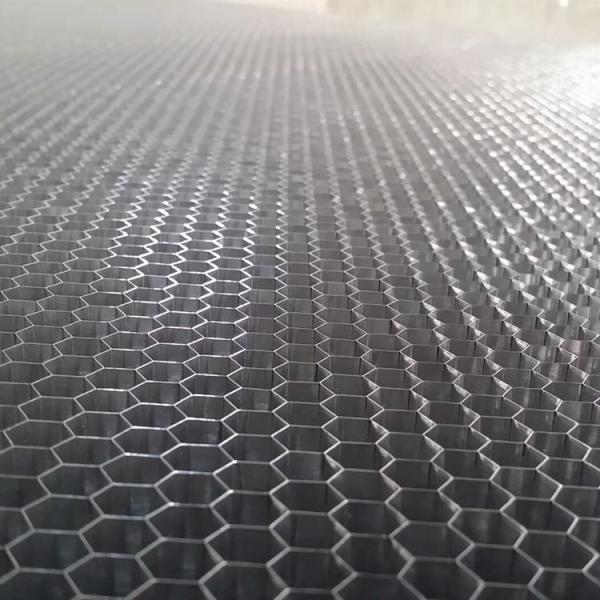

High Strength Aluminum Honeycomb Core For Building Materials Lightweight
High Strength Aluminum Honeycomb Core For Building Materials Lightweight
High Strength Aluminum Honeycomb Core For Building Materials Lightweight
High Strength Aluminum Honeycomb Core For Building Materials Lightweight
High Strength Aluminum Honeycomb Core For Building Materials Lightweight
High Strength Aluminum Honeycomb Core For Building Materials Lightweight
Specifications
Brand Name :
BEECORE
Model Number :
BHC3003
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, PayPal
Supply Ability :
1000pcs per day
Delivery Time :
7-15working days
Packaging Details :
Plywood case
Product name :
Aluminum Honeycomb Core
Side length :
4,5,6,7,8,10mm or Customizable
Size :
1500*3000，2000*4000mm or Customizable
Cell size :
6, 8, 10，12mm or Customizable
Foil thickness :
0.021, 0.03, 0.04, 0.05, 0.06, 0.08, 0.1mm
Thickness :
1.5-80mm or Customizable
Advantage :
Light weight, high strength, Environmental protection
Applications :
Filter, Lighting industry or other
Materials :
3003 and 5052
Color :
Aluminum natural color
Description

Lightweight High Strength Aluminum Honeycomb Core For Building Materials

1. Descriptions:

Aluminum honeycomb core is made of aluminum foil which processed through gluing, stacking, hot pressing, sawing, and then stretched to regular hexagon. It has the advantages of regular hexagon shape, good mechanical properties, flat surface etc.

Application: Clean-room system, railway transportation, construction and decoration, electrical appliance, solar thermal utilization and new energy vehicle.

2. Aluminum honeycomb core structure:

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

3. Specifications:

Micro-Porous Aluminum Honeycomb Core
Specifications Side length (mm) Foil Thickness (mm) Density (kg/m³)
BHC3003-0.4-0.015L 0.4 0.015 137
BHC3003-0.5-0.015L 0.5 0.015 137
BHC3003-0.5-0.021L 0.021 190
BHC3003-0.6-0.015L 0.6 0.015 151
BHC3003-0.6-0.021L 0.021 158
BHC3003-0.8-0.021L 0.8 0.021 118
BHC3003-0.8-0.025L 0.025 144
BHC3003-0.8-0.03L 0.03 169
BHC3003-1-0.025L 1 0.025 115
BHC3003-1-0.03L 0.03 137
BHC3003-1-0.04L 0.04 183
BHC3003-1.5-0.03L 1.5 0.03 90
BHC3003-1.5-0.04L 0.04 122
BHC3003-1.5-0.05L 0.05 152
BHC3003-1.83-0.04L 1.83 0.04 99
BHC3003-1.83-0.05L 0.05 123
BHC3003-1.83-0.06L 0.06 148
BHC3003-2-0.04L 2 0.04 90
BHC3003-2-0.05L 0.05 113
BHC3003-2-0.06L 0.06 135
BHC3003-2.5-0.04L 2.5 0.04 74
BHC3003-2.5-0.05L 0.05 92
BHC3003-2.5-0.06L 0.06 110
BHC3003-3-0.04L 3 0.04 61
BHC3003-3-0.05L 0.05 76
BHC3003-3-0.06L 0.06 91
BHC3003-3-0.08L 0.08 122
BHC3003-3.5-0.04L 3.5 0.04 55
BHC3003-3.5-0.05L 0.05 68
BHC3003-3.5-0.06L 0.06 82
BHC3003-3.5-0.08L 0.08 110
BHC3003-4-0.04L 4 0.04 46
BHC3003-4-0.05L 0.05 57
BHC3003-4-0.06L 0.06 68
BHC3003-4-0.08L 0.08 92
BHC3003-5-0.05L 5 0.05 46
BHC3003-5-0.06L 0.06 54
BHC3003-5-0.08L 0.08 72
BHC3003-5-0.1L 0.1 91
Alloy Al3003 and Al5052
Supply form Unexpanded (block, strip) or expanded(slice)
Unperforated

3. Micro- Porous aluminium core has several advantages:

• Competitive Advantage

• Light weight

• High strength

• Super flatness

• Compression, shear and corrosion resistance

• Flatness

4. Applications:

• Building materials industry

• Lighting industry

• Industry

• Printing machine platform and so on

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

5. Micro-porous aluminum honeycomb core of more pictures:

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

6. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

7. Factory show

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

8.Exhibition

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

9.Company certificate

(1). DIN 6701 TEST REPORT

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

(2). EN45545 TEST REPORT

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

(3). ISO 9001

High Strength Aluminum Honeycomb Core For Building Materials Lightweight

10. FAQ

Q1. What is micro-porous aluminum honeycomb core usd for?

A: The micro-porous aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, lighting industry, printing machine platform and so on.

Q2. What are the advantages of micro-porous aluminum honeycomb core?

A: Micro-porous aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.

Q3. What is the packaging method of micro-porous aluminum honeycomb core?

A: Micro-porous aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
