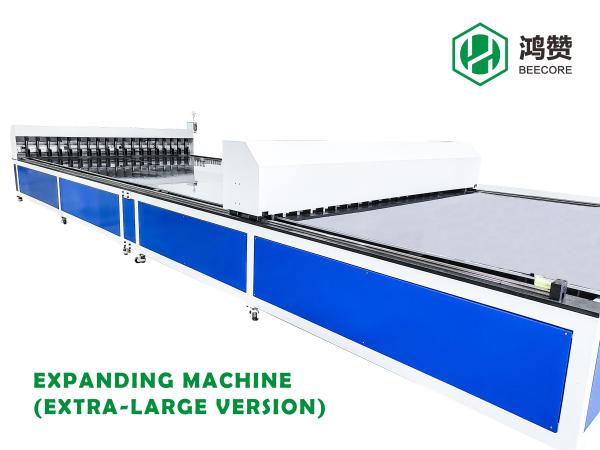

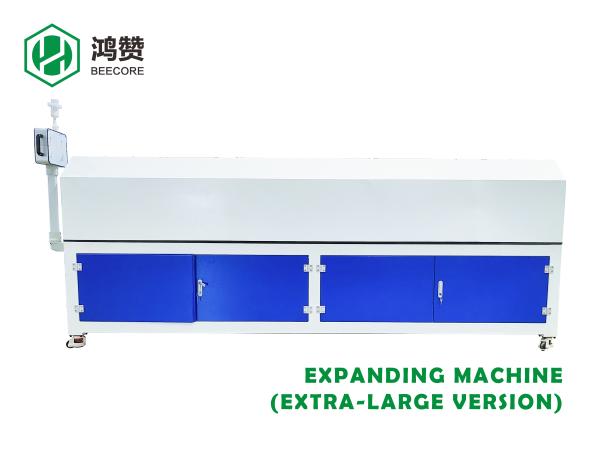

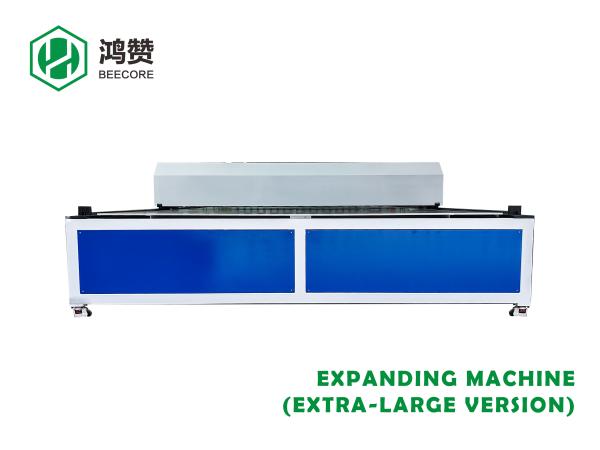

Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
Specifications
Brand Name :
BEECORE
Model Number :
BHM-EM-A3500-1
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1 MOQ
Price :
Negotiable
Payment Terms :
T/T, L/C,PayPal
Supply Ability :
1 set per month
Delivery Time :
25-30 work days
Packaging Details :
Strength plywood box
Expanding system :
Automatic pin type
Max unexpanded width :
3400MM
Max expanded width :
2500MM
Max expanded length :
6000MM after rebound
Expanded height :
3-70MM
Max expand speed :
5~15M/MIN
Total power :
4KW
Dimension :
About 9000*3400*1400MM
Weight :
About 3 tons
Voltage :
220/50 V/HZ
Driving :
Gear
Drive :
Servo
Description
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
1.Description:

The expanding machine of aluminum honeycomb core is a specialized equipment designed to improve the properties of aluminum honeycomb materials. It achieves this by expanding the aluminum honeycomb strips, which increases its strength and rigidity while reducing weight.

The process involves feeding the aluminum honeycomb core into the machine, where a series of rollers and tensioning mechanisms work to uniformly expand the material. This prepares it for various applications, including aerospace, automotive, and construction.

Key features of this machine include adjustable stretching parameters, easy integration with existing production lines, and safety mechanisms to protect operators. The outcome is a high-quality aluminum honeycomb core with improved dimensional stability and performance characteristics, tailored for specific manufacturing requirements.

2.Specification
Description BHM-EM-A3500-1 单位 Unit
Expanding system Automatic pin type /
Max unexpanded width 3400 mm
Max expanded width 2500 mm
Max expanded length 6000 after rebound mm
Expanded height 3-70 mm
Max expand speed 5~15 m/min
Total power 4 KW
Dimension About 9000*3400*1400 mm
Weight About 3 tons /
Voltage 220/50 V/Hz
Driving Gear /
Drive Servo /

3.Production Detail Display
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
Aluminum Honeycomb Core Expanding Machine With Automatic Pin Type
4.Features:
1) Color: Blue and white, customer can also order other colors according to
requirements;
2) The frame is made of Q235A steel integrally welded or bolted, which is firm and
reliable, and is stressed after welding to ensure the dimensional accuracy of the frame.
The remaining parts are finished by machining center;
3) The pins are made of imported mold steel, which is sturdy and durable;
4) The sliding guideway assembly adopts Taiwan HIWIN and runs smoothly;
5) The expand length can be set.
5.Company Profile
Suzhou Beecore Honeycomb Materials Co.Ltd
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.1998 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of
industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the
technology patent in China.
2017-So far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

FACTORY SHOW
Suzhou Beecore has two factories---------Suzhou factory & Taizhou factory

SUZHOU FACTORY
The main production of aluminum honeycomb core

TAIZHOU FACTORY
The main production of aluminum honeycomb composite panel
Exhibition
Packing & Delivery
Certification
