10g Packaging Metal Squeeze Tubes Screw Cap 90 Mm / Custom Length
10g Packaging Metal Squeeze Tubes Screw Cap 90 Mm / Custom Length
Specifications
Brand Name :
Xinji
Model Number :
Dia 13.5mm-Dia 40mm
Certification :
ISO, CFDA
Place of Origin :
Ezhou Hubei, China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Material :
Aluminum
Product Name :
Packaging Tube Of Aluminum
Sealing Type :
Screw Cap
Caps :
M9
Length :
Customized
Diameter :
19
Thread :
Membrane
Description

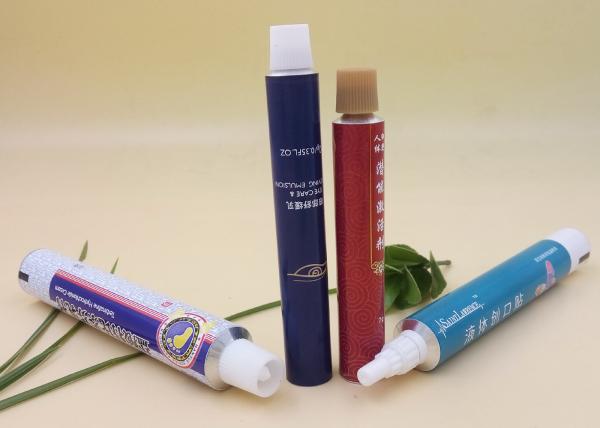

Packaging Tube Of Aluminum , Metal Squeeze Tubes

Tube Size Dia16mm* Length 90mm (length can customize)
Tube Capacity 10g
Aluminum Slug Aluminum＞99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Nozzle extended nozzle, extended plastic nozzle, etc.
Cap Color-white/red/blue/yellow; material-HPPE
Standard BS2006

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter Tolerance of Diameter Length Tolerance of Length Nozzle Tube Wall Thickness Shoulder Thickness 　
Max Min Max Min Shoulder Angle Standard
mm mm mm mm 　 mm mm mm mm 　
10 ±0.1 60 ±0.5 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35 　
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165 ±1.0 115 0.15 0.11 0.75 0.45 　
30 165 115 0.16 0.11 0.75 0.45 　
32 170 115 0.16 0.11 0.75 0.45 　
35 185 115 0.16 0.11 0.75 0.45 　
38 185 115 0.16 0.11 0.75 0.45 　
40 　 200 115 0.16 0.11 0.75 0.45 　
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5 　

Size & Volume
Diameter
(mm)		 13.5 16 19 22 25
Length
(mm)		 55
↓
100		 55
↓
105		 80
↓
130		 85
↓
140		 95
↓
160
Content
(mm)		 4.5
↓
7		 7
↓
12		 14
↓
24		 20
↓
35		 30
↓
55

Microgerm limitation inspection Bacteria <5 item/ml
Tungi <5 item/ml
Inaurate staphy None
Aerugo pseudomonad None


Advantages:

1. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
2. Production Lines. Full automatic production lines from Germany and Italy.
3. Price. Factory direct sells, offering you the most competitive price!
4. Service. Quick response on quotation, sample and after-service.
