Aluminium Food Squeeze Tubes Dia 16 / 25 / 35 / 40 Mm Max Six Printed
Aluminium Food Squeeze Tubes Dia 16 / 25 / 35 / 40 Mm Max Six Printed
Specifications
Brand Name :
Xinji
Model Number :
Dia13.5mm-40mm
Certification :
ISO, CDFA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 million pcs per year
Delivery Time :
within 30 days
Packaging Details :
box, carton and pallet; or other special packing as per your requirement.
Material :
Aluminum 99.7% purity
Name :
Squeeze soft aluminum tube
Application :
Aluminum packaging tube for Jam, condensed milk, etc.
Diameter :
13.5mm-40mm
Origin :
China
Color :
Up to 6 colors priting
Description

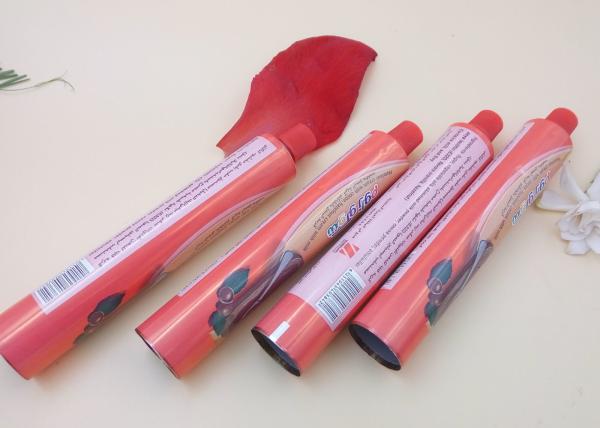

Dia 16 / 25 / 35 / 40 mm Printed Aluminium Collapsible Packaging Food Squeeze Tubes For Food Jam

Made of 99.7% minimum purity aluminium

In accordance with British standard BS 2006,German Stand DIN 5061.

Inside plain or double lacquered.

Base coated and printed in up to 6 colours.

Detailed Description of Aluminum Collapsible Packaging Tube:

* Material: aluminum purity>99.7%.

* Dimension: diameter from 13.5mm to 40mm, length can be customized

* Internal Lacquer: gold/silver/white colors, to keep the good nature of the cream etc. inside

* Roller Coating: white or other colors as your requests, to achieve the perfect printing effect

* Printing: six colors printing

* Bottom Latex: need or not, just depends on your requirements

* Nozzle Design: with membrane, open end, elongate nozzle, based on the customers' requirements

* Cap: various designs of caps for options

* Tube Shoulder: flat, brushed, polished, ringed or lacquered

Standard Nozzle:

  1. Plastic on-sert nozzle No.2 tube
  2. Metric (V thread) open nozzle
  3. Metric (V thread) sealed nozzle (membrane)
  4. Extended Plastic Nozzle
  5. Extended Nozzle
  6. Plastic on-sert nozzle

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle

FAQ:

1. Are you trading company or manufacturer?

We are the 3rd largest manufacturer in this industry.

2. How to get samples?

Samples without customized printing are free, but do not pay the cost of freight.

3. How long is your delivery time?

Generally it is 30 days after we sign the contract, it is according to quantity.

4. What's your payment term?

T/T, L/C, Western Union, etc.
