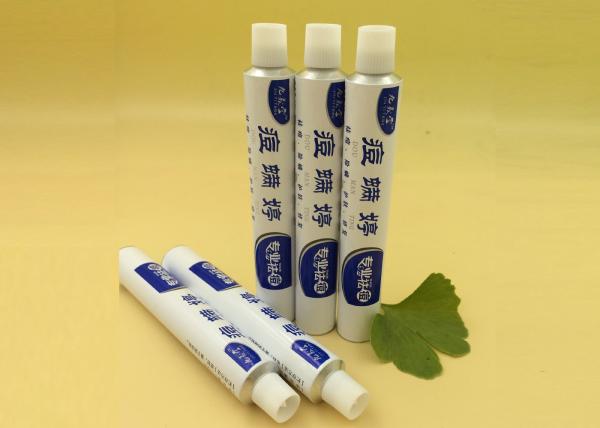

Dia 30 / 35 / 40 Mm Aluminum Cosmetic Tubes Enamel External Base Coat
We are the 3rd largest manufacturer of aluminum soft tube industry. Our aluminum soft tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
Gerenal Description:
1. CAP:Colour-white/red/blue;Type-Conual Piercer;material-HPPE.
2. Aluminum Blamks:Aluminum>99.7% pure.
3. Internal Lacquer:Type-Expoxy-Phenolic Resin.
4. External Base Coat:Type-Enamel;Colour-White.
5. Colour Ink:Suplier-Shanghai DIC.
6. Crimp sealant brand:PPG.
7. Manufacturing Environment:The construction of 100000-ton cleaning production packing workshop.
8. The standard of Inspection:BS2006-86 Aluminum tube for medicine ointment.
Our advantages:
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Customer Service:
Adhere to the business philosophy “Meticulously manufacture, different for you”, we clearly understand the needs of customers, establish supply chain system and appropriate procedures based on customer needs to maximize customer satisfaction .
For any quality problems, analysis the cause with high standards in order to establish a long-term mechanism; Each employee should understand how their daily work affects the quality level and customer satisfaction, continue to improve their own work for better service to our customers.
