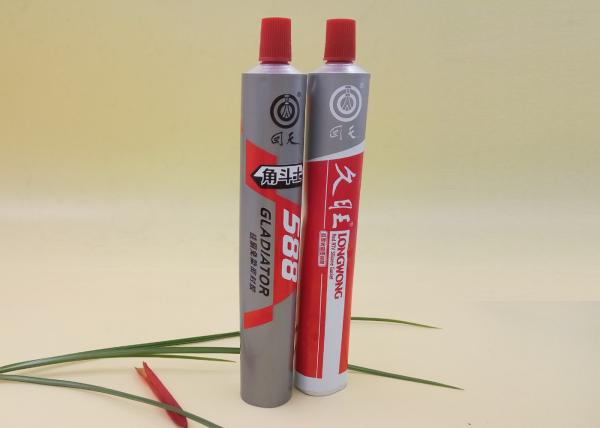

Soft Industrial Flexible Adhesive Tube Open / Elongated / Sealed Nozzles
Soft Industrial Flexible Adhesive Tube Open / Elongated / Sealed Nozzles
Specifications
Brand Name :
Xinji
Model Number :
Dia13.5mm-40mm
Certification :
ISO, CDFA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 million pcs per year
Delivery Time :
within 30 days
Packaging Details :
box, carton and pallet; or other special packing as per your requirement.
Material :
Aluminum
Diameter :
13.5mm-40mm
Artwork :
Customized
Nozzles :
Open, Elongated, Sealed
Origin :
Hubei, China
Name :
Gule aluminum tube Packaging
Description

Aluminum Soft Industrial Flexible Packaging Adhesive Tube Customized Printing

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle

Our advantages:

  • Scales: Now we are the top 3 in China aluminum material manufacturing company.
  • Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
  • Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
  • Technique: many researchers are invested in product study.
  • Production lines: Full automatic production lines from Germany and Italy.

Our quality system


ISO9001certification
Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)

Quality control department is the special independent unit to ensure that meet customer needs in terms of quality, adopt international testing standards and methods, continue to upgrade testing equipment to maintain the accuracy of test results, establish a zero-defect quality management philosophy: identification of customer needs correctly, to ensure adequate staff training, new product development, quality control and product testing and quality.

Customer Service:

Adhere to the business philosophy “Meticulously manufacture, different for you”, we clearly understand the needs of customers, establish supply chain system and appropriate procedures based on customer needs to maximize customer satisfaction .

For any quality problems, analysis the cause with high standards in order to establish a long-term mechanism; Each employee should understand how their daily work affects the quality level and customer satisfaction, continue to improve their own work for better service to our customers.
