White Color Coated Aluminum Coil Brushed Aluminum Strips Weathering Performance
White Color Coated Aluminum Coil Brushed Aluminum Strips Weathering Performance
Specifications
Brand Name :
yuanlong
Model Number :
1050 ,1060 ,1100,3003,3004
Certification :
ISO certificate
Place of Origin :
China
MOQ :
3tons
Price :
negotiable
Supply Ability :
1000tons
Packaging Details :
standard export packaging
Alloy: :
1050
Temper: :
0-h112
Thickness: :
0.1-200mm
Width: :
20-2000mm
Color: :
Customer's Requirement
Surface: :
Smooth, color coating
sample: :
free of charge
Yield (≥ MPa): :
70Mpa
Elongation (≥ %): :
8%~35%
Coating material: :
PE
Description

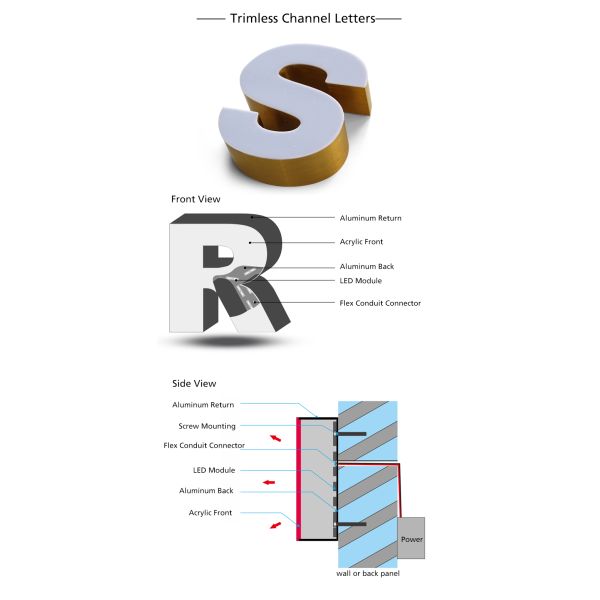

1050 aluminum strips for LED front lit aluminum channel letters advertising signs/light

Product Description:

Good Performance Aluminium Foil Strips In China details :

Aluminium strip are used in various applications such as refrigerator, commercial freezer, cable wrap, capacitor, PP cap, anti-theft strips, aluminum/plastic composite pipes, PS substrates and etc

alloy Temper

Thickness

(mm)

 Width Coil ID Application
1100,1050,
1060,1070,
3003,3105,
3004,5052,
8011		 O,H12,H14,
H16,H18		 0.02~4.00 5~100 75, 150,
300, 400,
500

Cable,cosmetic cap, aluminum composite, pipe,
aluminum hose or tube, electrical

transformer, shutter,aluminum battery

8011,1235,
1060,1100,		 o 0.10~0.20 100~300 75,150 Cable Wrapping
1060, 1100,
8011		 O, H22 0.20~1.5 30~250 75 Aluminum plastic composite pipe
1060, 1070 O 0.20~2.0 100~1200 150, 300,
400, 500		 Low voltage electrical transformer
8011 H18, H19 0.08~0.10 140~600 75,150 Water tank radiator in Automobile
8011 O 0.10~0.13 60 75 Aluminum tube for kitchen ventilator
5052, 3004 H19 0.125~0.25 15~100 300 Roller shutter
3004 O 0.25~0.40 85~400 75, 150 Aluminum lamp base

Application:

Widely used in indoor, outdoor, various letters, anomalous graphics, fixed decoration side for light box, fixed decoration for traditional light box, illuminated letter.

Advantage:

1. The aluminum coil top and side all cover the protection film to prevent scratching and abrasion,provide the highest quality guarantee.

2. Used the professional outdoor aluminum-plastic engineering materials,with good weathering performance,fastness.

3. Full color, standard color, metal color, special color for optional,stock providing,

4. Different types,thickness and width for choosing.

5. Indoor,outdoor,big small letter and thermoforming letters all can be used.

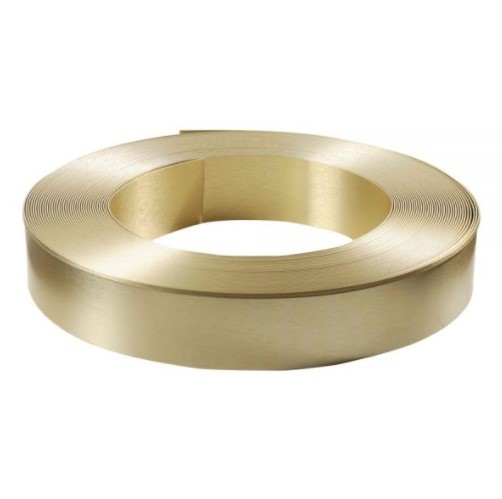

Aluminium coil
Aluminium Alloy
Thickness (mm)
Width(mm)
Temper
1050,1060,1070,1100
0.2-6
8-2650
O,H12,H14,H16,H18,H22,H24,H26
3003,3004,3105
0.2-6
8-2650
O,H12,H14,H16,H18,H22,H24,H26
5052,5005,5083,5754
0.2-6
8-2650
O,H12,H14,H34,H32,H36,H111,H112
6061,6082,6063
0.2-6
8-2650
T4,T6,T651
8011
0.2-6
8-2650
O,H12,H14,H16,H18,H22,H24,H26
Material process
Both CC and DC
Customized size
Size can be produced as per clients requirement
Surface
Mill finish ,Color coated(PVDF & PE),Stucco Embossed ,Bright Polish ,Anodizing
Mirror,Brush,Perforated,Tread plate ,Corrugated etc
Packing
Standard export worthy wooden pallets
Coil weight also can be as per client's requirement
