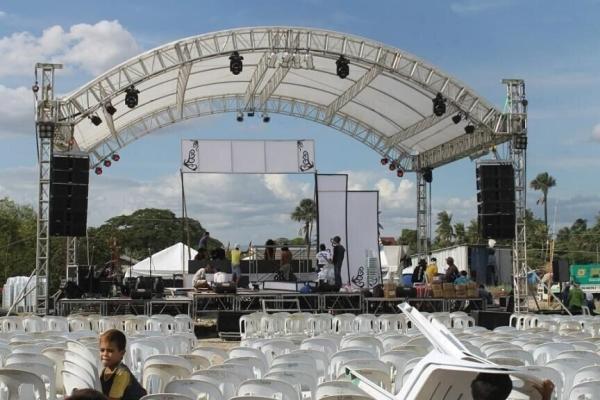

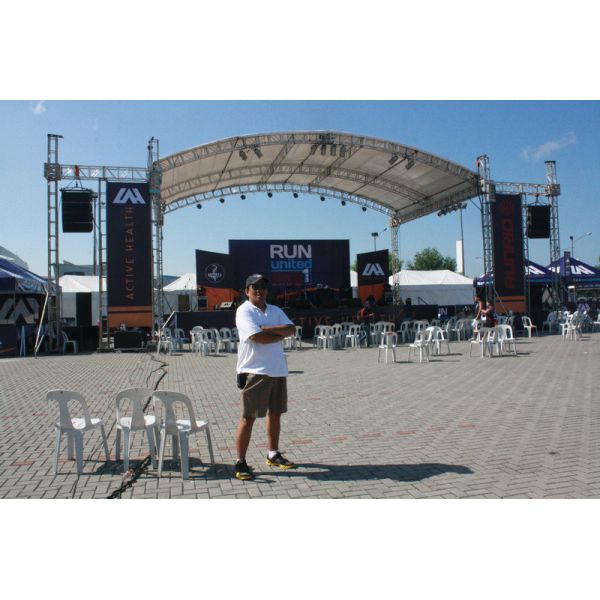

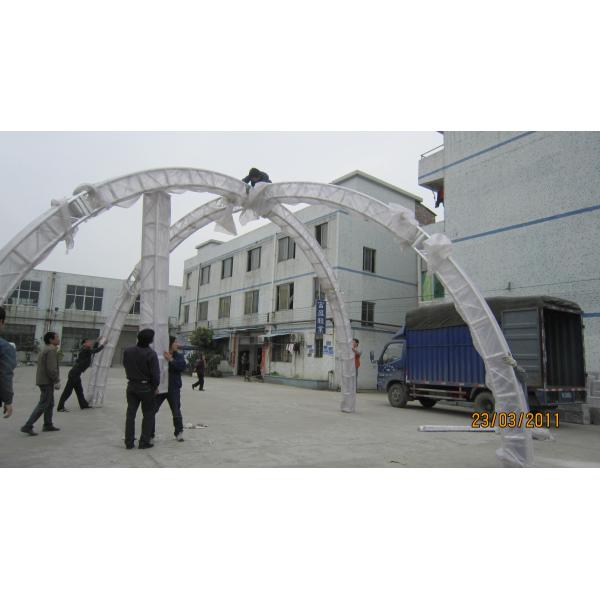

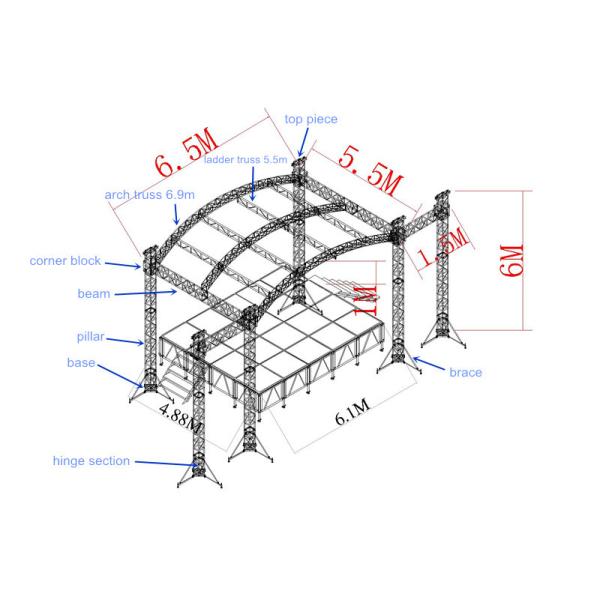

Outdoor Event Aluminum Square Truss / Stage Roof Truss With Canopy
Outdoor Event Aluminum Square Truss / Stage Roof Truss With Canopy
Outdoor Event Aluminum Square Truss / Stage Roof Truss With Canopy
Outdoor Event Aluminum Square Truss / Stage Roof Truss With Canopy
Outdoor Event Aluminum Square Truss / Stage Roof Truss With Canopy
Outdoor Event Aluminum Square Truss / Stage Roof Truss With Canopy
Specifications
Brand Name :
XYTruss
Model Number :
XYA01
Certification :
TUV & SGS
Place of Origin :
China
MOQ :
10 Meter
Payment Terms :
T/T, Western Union
Supply Ability :
50 meter per day
Delivery Time :
3-7 work days
Packaging Details :
Air bubble film
Material :
Aluminum alloy 6082 - T6
Length :
0.5 to 4 m per piece truss
Color :
Silver
Size :
Customized
Main tube :
50*3mm
Brace tube :
25*2mm
Description

Used Outdoor Event Aluminum Stage Roof Truss With Canopy High quality

Specification


Size(mm)

Main Tube(mm) Horizontal tube(mm) Brace Tube(mm) Loading Capacity(kg) Span(m)
300*300 50*3 30*2 25*2 300 12
350*350 50*3 30*2 25*2 500 14
400*400 50*3 50*2 25*2 600 16
450*450 50*3 50*2 25*2 700 18
500*500 50*3 50*2 25*2 700 20
520*760 50*3 50*2 25*2 1000 22
600*760 50*3 50*2 25*2 1500 26

Material analysis

Material Aluminum 6082/T6. Aluminum 6061/T6
Length available 1m,2m,3m,4m. OEM offered.
Shape Ladder,Triangle,Square,Circle Truss
Color Silvery and black or customized
Type Spigot and screw
Certification TUV,SGS
Characteristics Durable,Light Weight with high loading capacity.Raw material is aprecipitation hardening aluminum alloy, Containing magnesium and silicon as its major alloying elements. It has good mechanical properites, exhibits good weldability. It also has good effect of Proof Stress, corrosion resistance, antioxidation.
application LED truss to hang LED screen / Iinear speakers or decorate truss
Background truss: to hang up lights and LED, screen for truss frame
Truss system: to hold events( for light, LED, speaker, audio, and so on)
Layder truess: hanging speakers

Outdoor Event Aluminum Square Truss / Stage Roof Truss With CanopyOutdoor Event Aluminum Square Truss / Stage Roof Truss With CanopyOutdoor Event Aluminum Square Truss / Stage Roof Truss With CanopyOutdoor Event Aluminum Square Truss / Stage Roof Truss With CanopyOutdoor Event Aluminum Square Truss / Stage Roof Truss With CanopyOutdoor Event Aluminum Square Truss / Stage Roof Truss With Canopy
