EN10025 Stainless Steel T Angle 201 304 316L 125mm For Mechanical
EN10025 Stainless Steel T Angle 201 304 316L 125mm For Mechanical
Specifications
Brand Name :
XFT
Model Number :
Stainless Steel Angle
Certification :
ISO BV TUV PED DNV etc
Place of Origin :
China
MOQ :
1/stick
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000MT/Month
Delivery Time :
5-8 work days
Packaging Details :
Exporting package/wooden box package/Or per customers’ requirement
Name :
Stainless Steel Angle Bar
Standard :
GB ASTM, JIS, SUS, DIN, EN Etc
Grade :
200 Series,300 Series,400 Series,600 Series,Duplex
Type :
Equal And Unequal
Technique :
Hot Rolled,Cold Drawn
Length :
2m, 3m, 5.8m, 6m, Or As Required.
Description

EN10025 Stainless Steel Angle Bar

Descriptions

The key standard with respect to angle dimensions and tolerances is EN 10056, which approves the manufacture of equal steel angles with dimensions from 20*20*3 mm to 250*250*35 mm.Stainless Steel Angle Bar offers high strength, temperature resistance, high corrosion resistance, and a smooth surface that is easy to clean and withstand repeated sanitizing and sterilization. It is easy to machine, stamp, fabricate and weld to exacting tolerances. It is a high performance, low-cost material.Equal angle bars, standardized to EN 10056-1 (1998) and tolerances to EN 10056-2 (1993), have two parallel legs of the same length (size), whereas unequal angles have legs of two different sizes. The typical materials for mild steel angles are: EN 10025 S275. EN 10025 S355.

Product
 Stainless steel Angle
Material 200,300,400 series stainless steel
Model Number
304,304L,316L,316Ti,309S,310S,321,321H,314,2205,2507,600,631,800H,825,901,
903,904L,1.4529,317,317LN,347H,348H,253MA,254SMO,25-6MOS, 32760, 440A, 440B, 440C, GH3030, GH3039, C276, HC-276, Hastelloy, 724L,725LN and so on
Standard
GB ASTM, JIS, SUS, DIN, EN etc
Length 1~12m or as request
Width 25-125mm or as request
Type
equal and unequal
Technology Hot Rolled , Cold Rolled
Product application Mechanical & Manufacture, Steel strcuture, Shipbuilding, Bridging, Automobile Chassis.
Sample Free provided
Package Protection 1. water proof paper
2. Standard export seaworthy package + wooden pallet or as required.
Price Item FOB,CIF,CFR,EXW ,etc.
Delivery time
Prompt delivery , 7-15 days after deposit, or as the order quantity

Grade C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤ 0.03 3.5-5.5 16.0-18.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-13.0 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 19.0-22.0 24.0-26.0 -
314 ≤0.25 ≤1.5-3.0 ≤2.0 ≤0.045 ≤ 0.03 19.0-22.0 23.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.013 17.0-19.0 -
347 ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤ 0.03 9.0-13.0 17.0-19.0
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
420 ≤0.16-0.25 ≤1.0 ≤1.0 ≤0.040 ≤ 0.03 - 12.0-14.0 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤ 0.03 ≤0.60 16.0-18.0 -
904L ≤0.02 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 23.0-28.0 19.0-23.0 -

Equal angle(A*T)
Size (mm) Theoretical weight (kg/m) Size (mm) Theoretical weight (kg/m) Size (mm) Theoretical weight (kg/m)
25*3 1.124 75*7 7.976 110*14 22.809
25*4 1.459 75*8 9.03 125*8 15.504
30*3 1.373 75*10 11.089 125*10 19.133
30*4 1.786 80*6 7.376 125*12 22.696
40*3 1852 80*7 8.525 125*14 26.193
40*4 2.422 80*8 9.658 140*10 21.488
40*5 2.976 80*10 11.874 140*12 25.522
50*4 3.059 90*6 8.35 140*14 2949
50*5 3.77 90*7 9658 140*16 35.393
50*6 4.465 90*8 10.946 160-10 24.729
60*5 452 90*10 13.476 160*12 29.391
60*6 5.42 90*12 15.94 160*14 33.987
63*5 4822 100*6 9366 160*16 38.518
63*6 5.721 100*7 10.83 180*12 33.159
63*8 7.469 100*8 12.276 180*14 38.518
63*10 9.151 100*10 15.12 180*16 43.542
70*5 5.397 100*12 20.611 180*18 48.634
70*6 6.406 100*16 23.257 200*14 42.894
70*7 7.398 110*7 11.928 200*16 48.68
70*8 8.373 110*8 13.532 200*18 54.401
75*5 5.818 110*10 16.69 200-20 60.056
75*6 6.905 110*12 19.782

Unequal angle(A*T)
Size (mm) Theoretical weight (kg/m) Size (mm) Theoretical weight (kg/m) Size (mm) Theoretical weight (kg/m)
25*16*3 0.912 75*50*8 7.431 125*80*7 11.066
32*20*3 1.171 75*50*10 9.098 125*80*8 12.551
32*20*4 1.522 80*50*5 5.005 125*80*10 15.474
40*25*3 1.484 80*50*6 5.935 125*80*12 18.33
40*25*4 1.936 80*50*7 6.848 140*90*8 141
45*28*3 1.687 80*50% 7.745 140*90*10 17.475
45*28*4 2.203 90*56*5 5.661 140*90*12 20.724
50*32*3 1.908 90*56*6 6.717 140*90*14 23.908
50*32*4 2.494 90*56*8 8779 160*100*10 19872
56*36*3 2.153 100*63*7 8.722 160*100*14 27.274
56*36*4 2.818 100*63*8 9878 160*100*16 30.853
56*396*5 3.466 100*63*10 12.142 180*110*10 22273
63*40*4 3.185 100*80*6 8.35 180*110*12 26.464
63*40*5 3.92 100*80*7 9656 180*110*14 30589
63*40*6 4.638 100*80*8 10.946 180*110*16 34.649
70*45*5 4.403 100*80*10 13.476 200*125*12 29.761
70*45*6 5.218 110*70*6 8.35 200*125*14 34.436
70*45*7 6011 110*70*7 9.656 200*125*16 39.045
75*50*5 4.808 110*70*8 10.946 200*125*18 43.588
75*50*6 5.699 110*70*10 13.476

EN10025 Stainless Steel T Angle 201 304 316L 125mm For MechanicalEN10025 Stainless Steel T Angle 201 304 316L 125mm For MechanicalQuality Inspection:

EN10025 Stainless Steel T Angle 201 304 316L 125mm For Mechanical

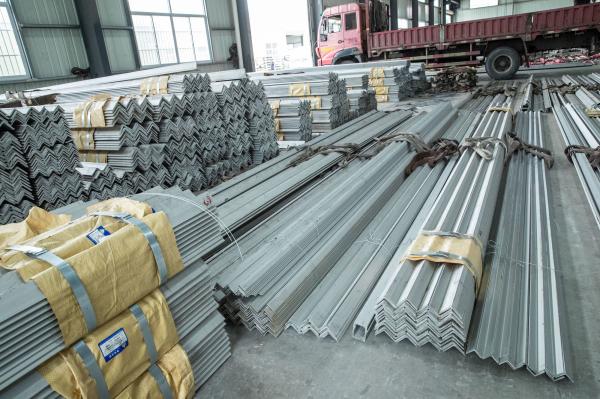

Warehouse

EN10025 Stainless Steel T Angle 201 304 316L 125mm For Mechanical

FAQ

Q1: Are you trading company or manufactory ?

A: We are manufacturer, factory in Wuxi ,Jiangsu.

Q2: Do you provide samples ?

A: Yes, we could provide free samples as yours requirement. However your need pay the freight cost. lt needs 5-7 days to prepare samples.

Q3: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.For mass products, ship freight is preferred .

Q4:Do you have any MOQ limit for stainless steel products order?

A: Low MOQ, 1pcs for sample checking is available , and ideal order quantity for production is 500 tons or more.

Q5: Can you customize the stainless steel in size ,design and logo?

A: Yes, we support the size, design and logo of the customized products.

Q6: how can we guarantee quality?

A:Always a pre-production sample before mass production; Always final Inspection before shipment;

Q7: Why should you buy from us not from other suppliers?

A:All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have been devoted to the steel industry for several years, our foreign team understand you more better.
