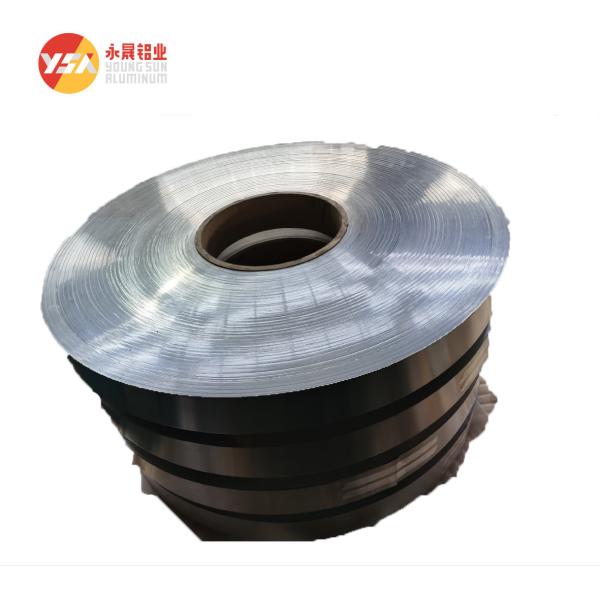

3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip
Specifications
Brand Name :
Yongsheng Aluminum Industry Co., Ltd.
Model Number :
ALuminum strip
Certification :
SGS
Place of Origin :
Henan China
MOQ :
1 tons
Price :
USD2500tons
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000tonspermonth
Delivery Time :
20workdays
Packaging Details :
wooden package
Name :
aluminum strip
Place of Origin: :
China
Width :
3mm-2600mm
Alloy :
1000series-8000series
Temper :
O-H112，T3-T8
Thickness :
0.13mm-6.5mm
Length :
as your requirements
Description

NAME:3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip



Aluminum Strip Description

  • According to the different annealing state of aluminum strip , aluminum strip can be divided into full soft ( O state ) semi-hard ( H24 ) full hard ( H18 ) . The most commonly used ones should belong to the full soft series , because the O state is easier to stretch and bend .
  • ​The main processing equipment of aluminum strip is the slitting unit , which can be divided into the required length and width according to the needs .


Aluminum Strip Technical Data

  • 1000 Series , 2000 Series , 3000 Series , 5000 Series , 6000 Series , 7000 Series , 8000 Series
  • Size : Customized Size
  • Feature : Eco-friendly

  • Package : Wooden Pallets

  • ​Color : Silver
  • Shape : Alu Strip
  • Temper : O - H112 , T3 - T8 , T351 - T851
  • Thickness : 0.13mm - 6.5mm
  • Width : 3mm - 2600mm
  • Length : As per your requirements
  • Application : Industry , Decoration , Building , Packing , Pressing , Etc.
  • Surface treatment : Mill Finish , Coated , Powder Coated , Anodized , Polished mirror , Embossed , Etc.
  • Tolerances : As per your requirements
  • Special Specification is available on customer ’ s requirement


Aluminum Strip Use

  • Aluminum Strip for transformer (aluminum foil for transformer)
  • Aluminum Strip for high-frequency welding hollow aluminum strip
  • Aluminum Strip for finned radiator
  • Aluminum Strip for cable
  • Aluminum Strip for stamping
  • Aluminum Strip for edge strip , etc.




Aluminum Alloy Belt Categories :

  • pure aluminum strip
  • transformer aluminum strip
  • super hard aluminum strip
  • all soft aluminum strip
  • semi hard aluminum strip
  • rust proof aluminum strip


Alloy State Thickness(mm) Tensile Strength The Yield Strength(Mpa) elongation hardness
3005 0 >0.2-0.5 115-165 ≥45 ≥13 35-45
>0.5-1.0 ≥20
>1.0-4.0 ≥25
H22 >0.2-0.5 145-195 ≥110 ≥10 40-60
>0.5-1.0 ≥15
>1.0-4.0 ≥15
H24 >0.2-0.5 170-215 ≥130 ≥6 58-70
>0.5-1.0 ≥8
>1.0-4.0 ≥10
H26 >0.2-0.5 195-240 ≥160 ≥3 65-83
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥220 ≥200 ≥2 80-100
>0.5-1.0 ≥3
>1.0-4.0 ≥3
3105 0 >0.2-0.5 75-105 ≥25 ≥14 32-42
>0.5-1.0 ≥20
>1.0-4.0 ≥25
H22 >0.2-0.5 95-130 ≥75 ≥10 39-60
>0.5-1.0 ≥12
>1.0-4.0 ≥12
H24 >0.2-0.5 110-145 ≥95 ≥8 52-62
>0.5-1.0 ≥10
>1.0-4.0 ≥10
H26 >0.2-0.5 130-165 ≥115 ≥3 58-72
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥150 ≥130 ≥2 65-95
>0.5-1.0 ≥2
>1.0-4.0 ≥3


3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip



3005 Aluminum Strip With GB Standard Aluminum Strip Ceiling Aluminum Divider Strip

Packing conditions

Packing details:

  • l Normally , for aluminium strip , 20MT can be loaded into 20 foot container , we suggest to use 20 foot container , the sea freight rate is much cheaper than 40 foot container .
  • l the packing is very strong , which has 3 lays , thick fiber , foam , plastic , enough drying agent , suitable for long distance sea transportation .
  • l We use wooden pallet and steel pallet according to customer request ;
  • l Wooden boxes will be used in the outside packing .
  • l We have fixing in the container to avoid any damage during the transportation .
  • l 24 wooden boxes in one 20ft container .


Reliable quality , reasonable price and prompt delivery are insured to be offer to you .
TELL US WHAT U NEED , THEN WE WILL TRY OUR BEST .
