Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Specifications
Brand Name :
Henan Yongsheng
Model Number :
Aluminium Bubble Foil Insulation
Certification :
ISO, RoHS
Place of Origin :
Zhengzhou Henan
MOQ :
Small MOQ is accepted
Price :
FOB, CIF, CFR, CNF, etc.
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-25 days after order confirmation
Packaging Details :
Customized Packing
Structure :
Aluminum Foil+Bubble+White Pe Film
Color :
Silver
Slitting Width :
Customizaed
Roll Size :
1.2*40m per roll
Reflectivity :
97%
Thickness :
4mm or customzied
Description

Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

Product Introduction

Air cell insulation is a special form of reflective aluminum bubble foil that has become the preferred choice for applications that require superior heat resistance and sound insulation.
Air cell insulation consists of multiple layers of air bubbles sandwiched between reflective aluminum foil. It works on the principle of radiant heat reflection and thermal resistance.
The reflective aluminum surface reflects radiant heat back to its source, while the trapped air bubbles act as an insulator, reducing the conduction of heat and sound through the material.
Temperature range -76F ~+212F (ASTM C411)
R-value 2.0~11.2
Fire-proofing Class A/Class 1
Emissivity 0.03-0.04 COEF
Thermal Conductivity 0.032 -0.036W/m0
Apparent Density 54.8 kg/m3
Reflectivity 96-97%
Vapor Transmission 0.012 g/m2kpa
Corrosion Doesn’t generate
Tensile Strength(MD) 13.43 Mpa
Tensile Strength(TD) 14.58 Mpa
1. The outer layer of reflective aluminum foil is engineered to reflect up to 97% of radiant heat, significantly enhancing the thermal performance of the material.
2. The inner air bubbles act as a thermal barrier, preventing heat from passing through the material. This layer helps minimize heat loss in the winter and gain in the summer.
3. The construction of Air Cell insulation makes it lightweight and easy to handle, which reduces installation time. It can be cut and shaped without affecting its insulating properties, making it ideal for areas with complex or irregular surfaces.
4. Air cell insulation is resistant to moisture, rot and mildew, making it suitable for a variety of environments, including areas of high humidity. It also has a long service life, maintaining its efficiency for long periods of time without noticeable degradation.

Product Parameter

Main Material Aluminum Foil, metal foil, PE Bubble,

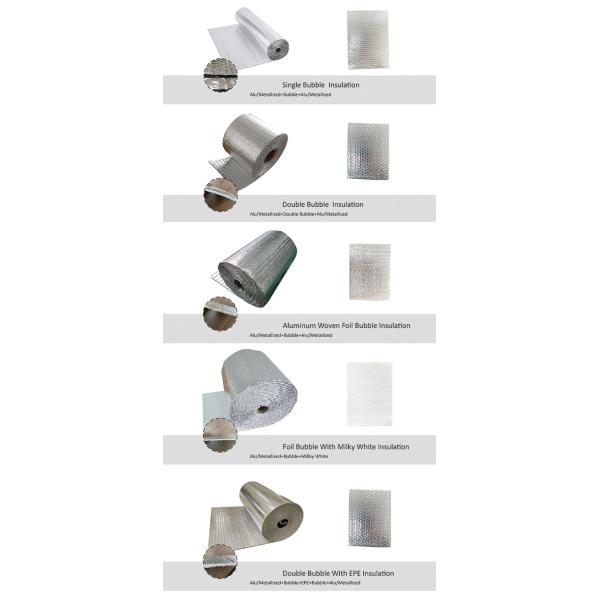

Material Structure

 MPET+Bubble+ +White Pe Film
Aluminum Foil+Bubble+White Pe Film
Aluminum Foil+Bubble+White Pe Film
Colorful Coating+Aluminum Foil+Bubble + White Pe Film
Bubble Pe bubble, diameter is 10mm, height can be 3/4/6/8mm, Diameter is 20mm, height will be 7mm
Normal Insulation Thickness 4mm,6mm,7mm,8mm
Bubble color regular is clear or white
Reflectivity 97%
Normal Roll Size 1.2m*30m/roll, 1.2*40m/roll, 1.5*20m/roll, also can be customized; max width is 1.5m
Packing 1 roll/pe bag, pe bag can be printed customized

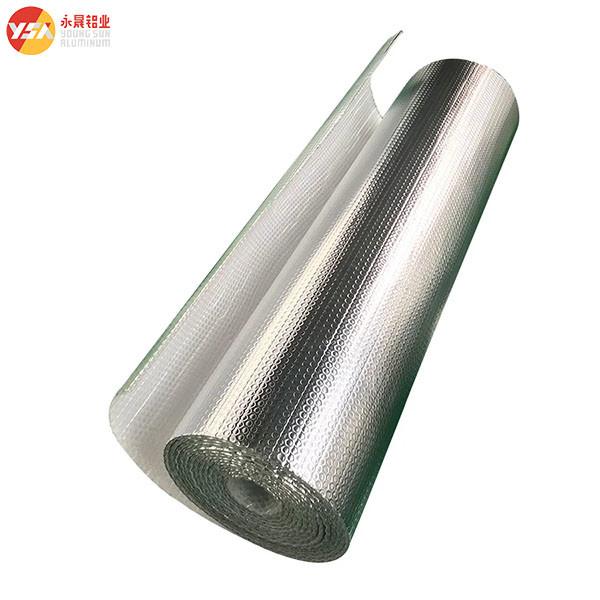

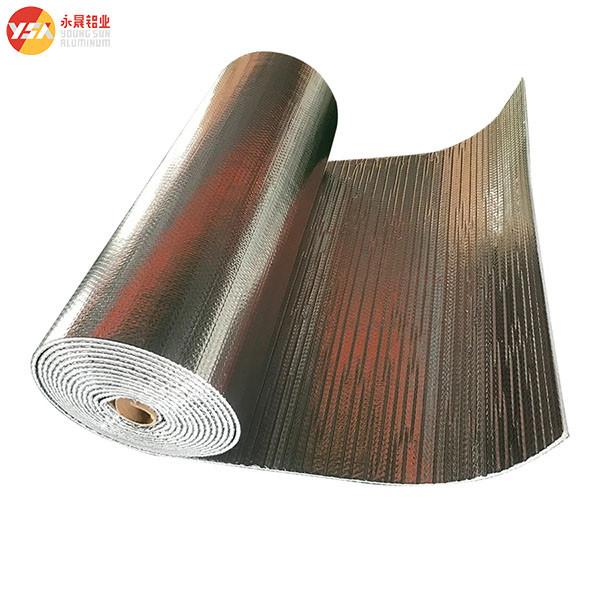

Product Show

Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

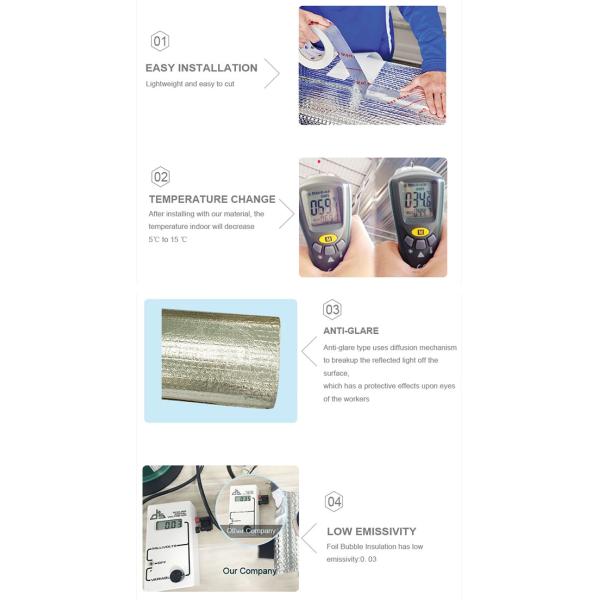

Product Features

Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
