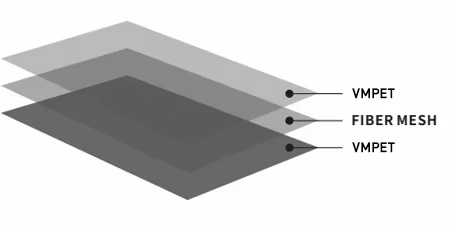

Our Rhombus Reinforced Aluminum Foil sets a new standard in thermal insulation with its triple-layer composite structure, optimized for maximum efficiency, durability, and versatility:

1st Layer: VMPET (Metallized PET) – Heat Reflection
Ultra-thin (12μm) metallized PET film with 99% pure aluminum coating for superior infrared heat reflection (＞95%, ASTM E2592).
Excellent moisture and oxygen barrier (MVTR ≤0.05g/m²·24h, ASTM E96).

2nd Layer: High-Strength Fiber Mesh – Reinforcement
Rhombus-pattern polymer fiber mesh provides 300% greater tear resistance vs. traditional aluminum foils.
Withstands 25N/cm² compression without deformation, ideal for rugged industrial applications.

3rd Layer: VMPET (Metallized PET) – Seamless Protection
Secondary metallized layer enhances heat reflection and prevents condensation-induced corrosion.
Electromagnetic shielding capabilities (up to 60dB attenuation).

Key Benefits & Technical Superiority

Unmatched Thermal Efficiency
Reflects 95% radiant heat, reducing HVAC energy costs by 30%+.
Stable performance in extreme temperatures (-70°C to 200°C, IEC 60068-2-14 certified).

Ultra-Durable & Lightweight
40% lighter than fiberglass insulation, reducing shipping costs.
Resists punctures, abrasion, and delamination (tested per ASTM D882).

Eco-Friendly & Safe
RoHS & REACH compliant with 30% recycled aluminum content.
Fire-retardant (UL94 V-0 rated) for construction and EV battery applications.

Color

Silver

Inner Diameter (mm)

76

Slitting Width (mm)

≤2000mm

Outside Diameter (mm)

130-500

VMPET Thickness (mm)

0.006-0.012

Fiber Mesh Weight (g/m²)

【5*5mm fiberglass】15.5 g/m² (+8%)

【5*5mm fiberglass】32.5 g/m² (+8%)

【10*10mm fiberglass】7.78 g/m² (+8%)

【12.5*12.5mm fiberglass】6.2 g/m² (+8%)

【2.5*5mm 75D polyester (75D)】 6.5 g/m² (+8%)

【4*6.5mm 75D polyester (75D)】 8.5 g/m² (+8%)

【4*6.25mm 75D polyester (75D)】 7.8 g/m² (+8%)

【2.5*10mm 75D polyester (75D)】 4.8 g/m² (+8%)

【12.5*12.5mm 550D polyester (550D)】 12.3 g/m² (+8%)

Structure
