Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable
Specifications
Brand Name :
Alvin's Cables
Place of Origin :
China
MOQ :
1/pcs
Price :
Please contact us
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000pcs/mouth
Delivery Time :
1~3 business days
Packaging Details :
Box
Compatible :
DJI Ronin 4D
Plug A :
Straight 6-pin 1B DC-IN wide voltage input (DC 12-30V) connector
Color :
Black
Description

Alvin's Cables V Mount Battery Plate for DJI Ronin 4D, with Straight 1B 6-Pin Male DC-in Out Put Battery Mounts Plate V Mount Plate for Ronin 4D Long Cable

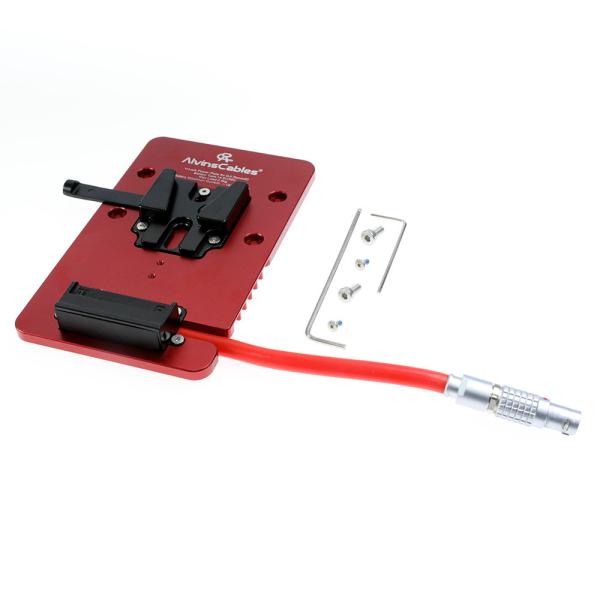

  • V-Lock Battery Plate for DJI Ronin 4D, with straight 6-pin 1B DC-IN wide voltage input (DC 12-30V) connector.
  • The cable is longer and is suitable for use with a DJI docking station installed. Original design with perfectly fitting screw holes. Only two screws are needed for quick installation and disassembly. Specific length power cable for Dji Ronin 4D, makes it tightly and neatly connected to the device.
  • Solid yet lightweight. The battery compartment's center of gravity is shifted 15mm forward, reducing body length and making the center of gravity more compact. Unsuitable for intense shooting with fourth axis on like car shooting. Ideal for handheld and split use.
  • Solid V-Lock 5-pin copper pin socket significantly enhances the current-carrying capacity. It supports 14.8V/26V V-mount batteries, best with 26V high-voltage V-mount battery (25.2V - 29.6V).
  • When using a 14.8V V-mount battery, it is recommended to use a battery that can continuously supply more than 15 amps. This means that at 12V, it should provide more than 180W of power. When the voltage drops to 13.5V, the battery should be replaced; otherwise, the z-axis startup may cause a power outage.
  • Packing list: V-Lock Battery Plate for DJI Ronin 4D x 1, M4 screw x 2, M2.5 screw x2, large wrench x1, small wrench x1, plastic battery flanks x1 (used together to make the battery stronger, install as needed).

Alvin's Cables

As a professional connector and cable manufacturer, we produce and sell cost-effective connectors as well as cables. Hope our products can satisfy your demand.

Moreover, it is allowed to customize the cables according to your requirements. Please kindly contact us, tell me what you want, and we would spare no effort to meet your need.

What’s more, we can give you a discount if you order a large quantity of connectors and cables. If you are interested in them, please contact us, thank you!
