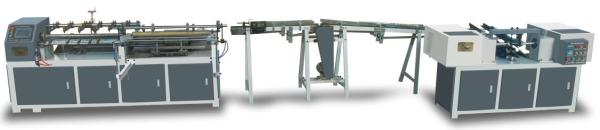

Chemical Fiber Paper Tube Cutting Machine 12.6KW Paper Tube Curling Machine
Chemical Fiber Paper Tube Cutting Machine 12.6KW Paper Tube Curling Machine
Specifications
Brand Name :
AMC MACHINERY
Model Number :
DTY
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiage
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
60 working days
Packaging Details :
Corrugated box and plastic film
Voltage :
220V or 380V or 415V
Color :
Customized
Thickness of paper tube :
2-8mm
Cutting length :
120-1600mm
Inner diameter of paper tube :
50-76mm or 76-96mm or 100-120mm (as per customer's tube size)
Cutting blades :
8 units
Description

Chemical fiber paper tube cutting and curling machine

Model: DTY

Characteristics:

  • Load and upload the material automatically.
  • Do curling automatically.

Specification:

DTY Chemical fiber paper tube cutting and curling machine
Inner diameter of paper tube 50-76mm or 76-96mm or 100-120mm
Thickness of paper tube 2-8mm
Cutting length 120-1600mm
Cutting blades 8 units
Total power 12.6KW
Voltage 380V/220V, 60Hz
Pressure 0.6Mpa
Operator 1 persons
Demission

4000x2000x1500mm

1900x1000x1300mm
Totally weight 2300kg

Transmitting system:

Main motor power 12.2KW
Max. head rotary speed 1400rpm
Transmitting system Chain feeder drive
Head drive 2 head drive
Bearing Universal Bearings

Control system:

PLC XinJie Brand
Touch screen MCGS
Frequency converter An Rui Ji brand
Main electric products Chint brand
Sensor Hu Gong brand
Pneumatic product Tian Ao brand
Synchronous control Pneumatic control
