Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Outdoor/Indoor 1.2GHz 10dBi Flat Panel Antenna Directional Wall Mount Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-1200-10A
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
1100-1300
Bandwidth（MHz） :
200
Gain（dBi） :
10
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Male or Requested
Mounting hardware（mm） :
￠35-￠50
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

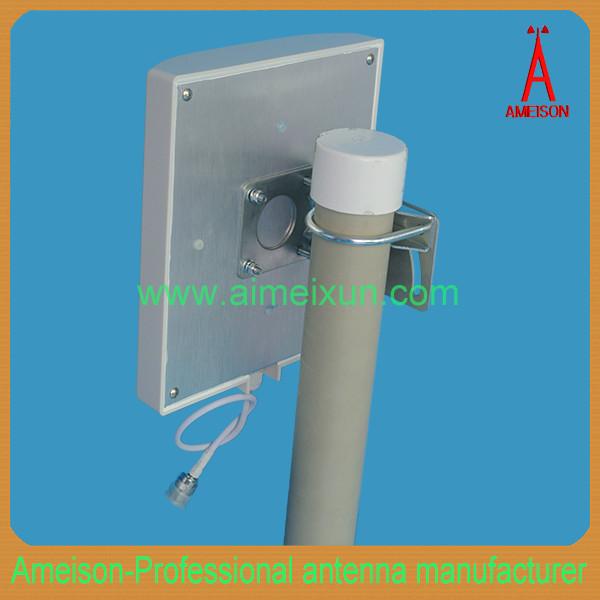

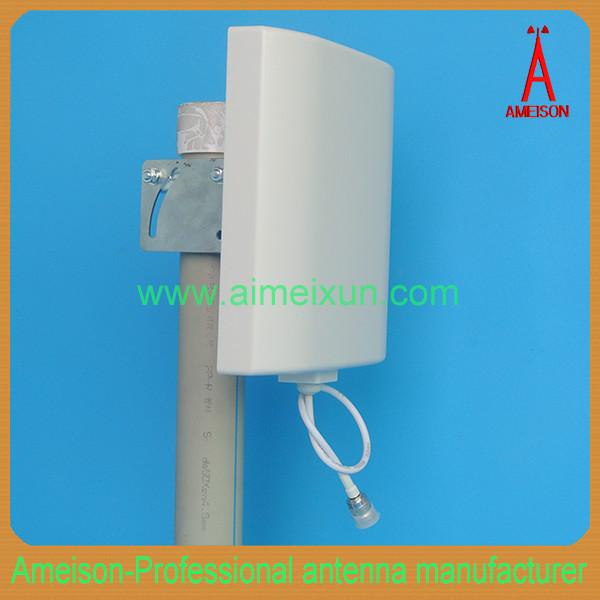

Ameison Flat Panel Antenna

Factory price

Superior performance

Mounting kits included

Waterproof heavy-duty ABS redome

1100-1300MHz Directional Wall Mount Antenna

AMXW-1200-10A

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

1.2Gsystem

Wireless communication and data transmission system

AMXW-1200-10A

Electrical Specifications

Frequency range(MHz)

1100-1300

Bandwidth(MHz)

200

Gain(dBi)

10

Half-power beam width(°)

H:65 V:40

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

N Male or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

225*195*47

Antenna weight(kg)

0.45

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm)

￠35-￠50
