Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXP-2458V2H2-D14L90
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400～2500 and 5725～5850
Polarization :
Vertical and horizontal
Gain（dBi） :
2×14 and 2×14
Lightning protection :
DC Ground
Input connector type :
4×N Female
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

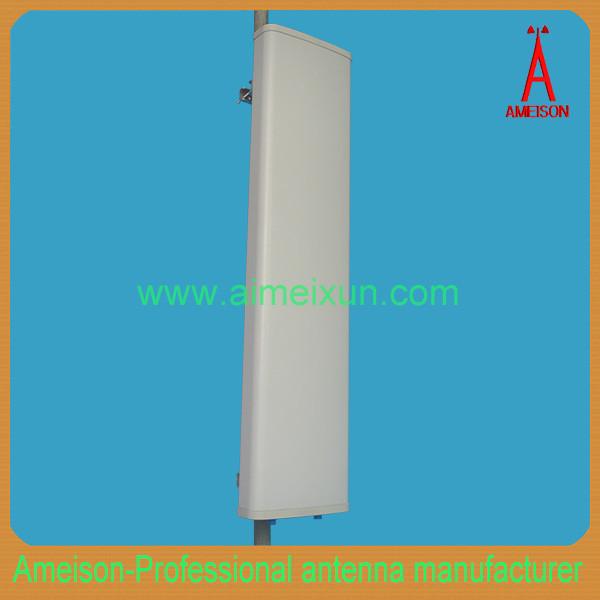

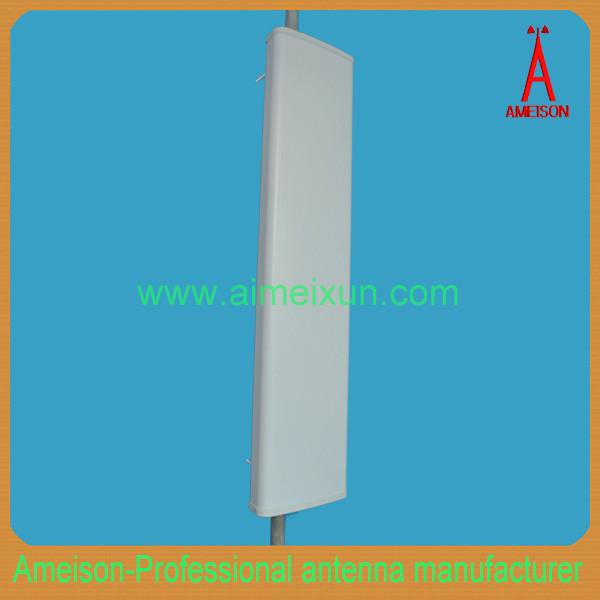

2400-5850MHz Directional Panel Antenna

AMXP-2458V2H2-D14L90

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

2.4 GHz WLAN system

2.4GHz ISM band

Wi-Fi system

5.8 GHz WLAN system

5.8 GHz ISM band

AMXP-2458V2H2-D14L90

Electrical Specifications

Frequency range(MHz)

2400～2500

5725～5850

Polarization

Vertical and horizontal

Gain(dBi)

2×14

2×14

half-power beam width(0°)

H:90 V:15

H:90 V:15

Front-to-back ratio(dB)

≥23

≥23

Input Impedance(Ω)

50

Isolation between ports(dB)

≥28

Cross-polar ratio(dB)

≥15@0º ≥10@+/-60º

Sidelobe suppression for first sidelobe above horizon(dB)

15

VSWR

≤1.5

≤1.5

Maximum input power(W)

200

100

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

4×N Female

Dimensions-mm (Height/Width/Depth)

730*130*62

Packing size(mm)

780*170*150

Antenna weight(kg)

5.4

Radome material

UPVC

Radome color

Gray

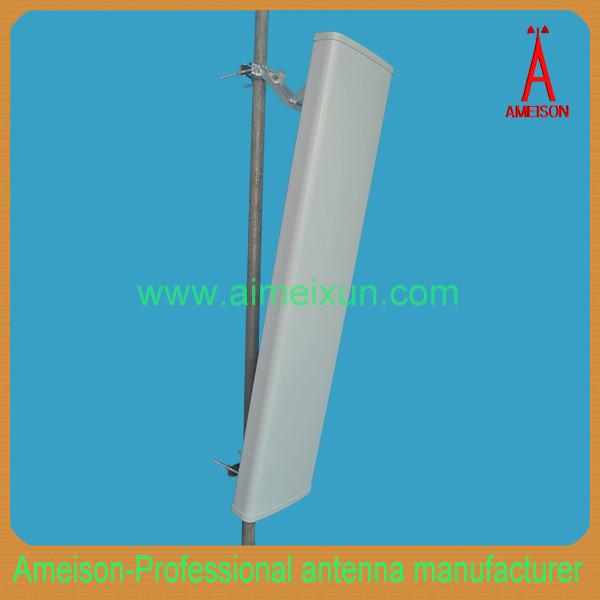

Mechanical tilt(°)

0～10

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

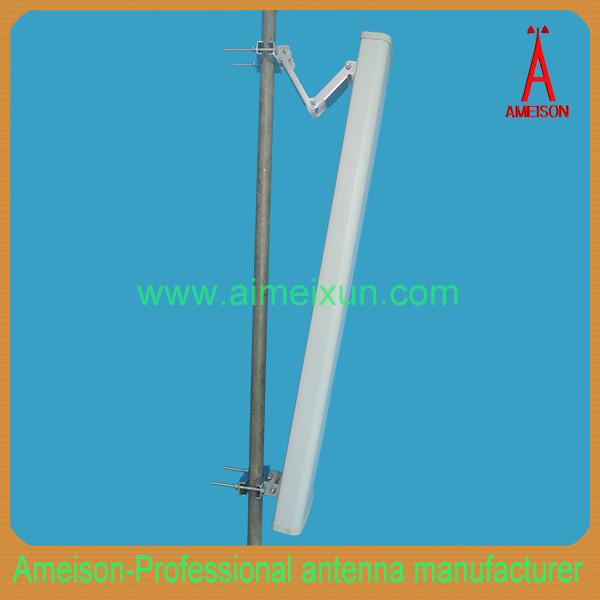

Mounting hardware(mm)

￠35～￠75
