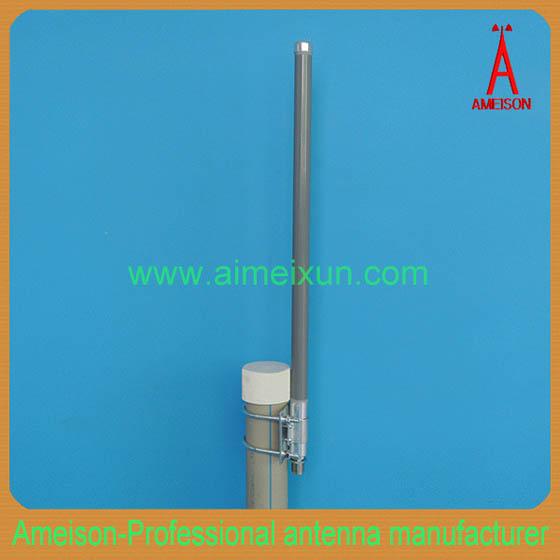

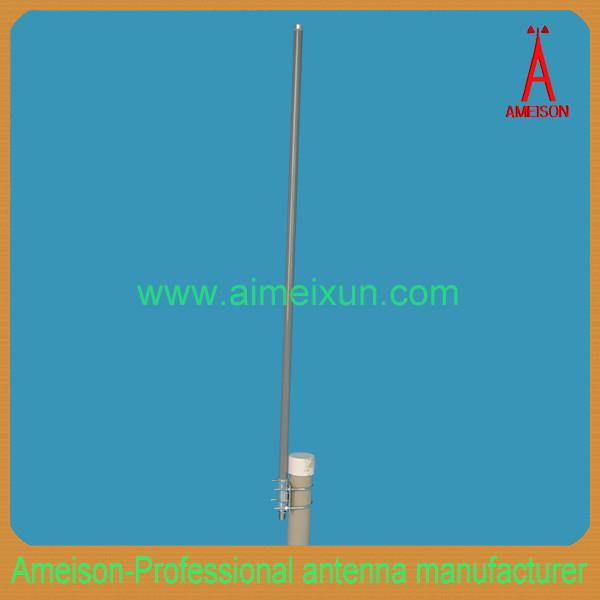

428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
428-438MHz 5dBi Omni Fiberglass Antenna With N Female Connector
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXF-433-5
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
433±5
Bandwidth（MHz） :
10
Gain（dBi） :
5
Half-power beam width（°） :
H:360 V:30
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

428-438 Mhz Omni fiberglass antenna

Factory price

Lightweight fiberglass radome

Provided wifh dual u-bolt mast mounting kit

433MHz Omnidirectional Fiberglass Antenna

AMXF-433-5

Feature:

Exquisite appearance

Good impact resistance

Waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain

Low standing wave

Strong anti-interference ability

Application:

433 MHz system

Point-to-multipoint system

AMXF-433-5

Electrical Specifications

Frequency range(MHz)

433±5

Bandwidth(MHz)

10

Gain(dBi)

5

Half-power beam width(°)

H:360 V:30

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions (mm)

Φ20*1170

Antenna weight(kg)

0.56

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

Gray

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
