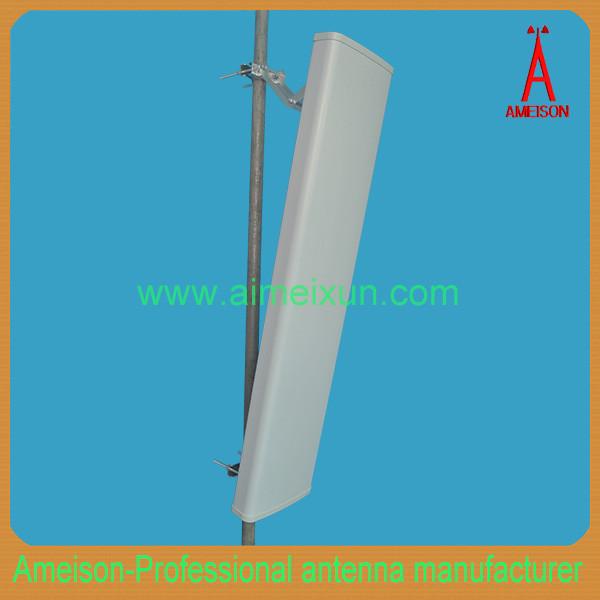

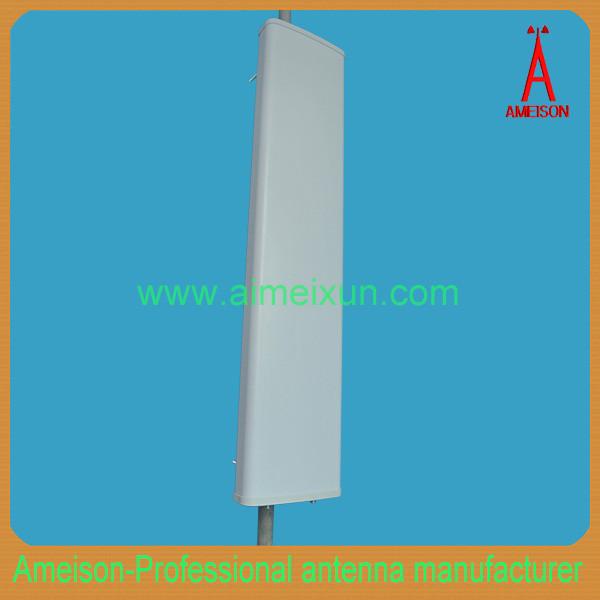

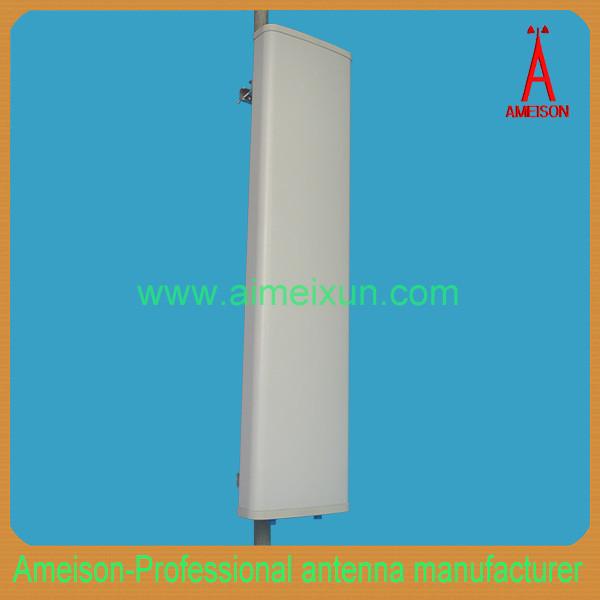

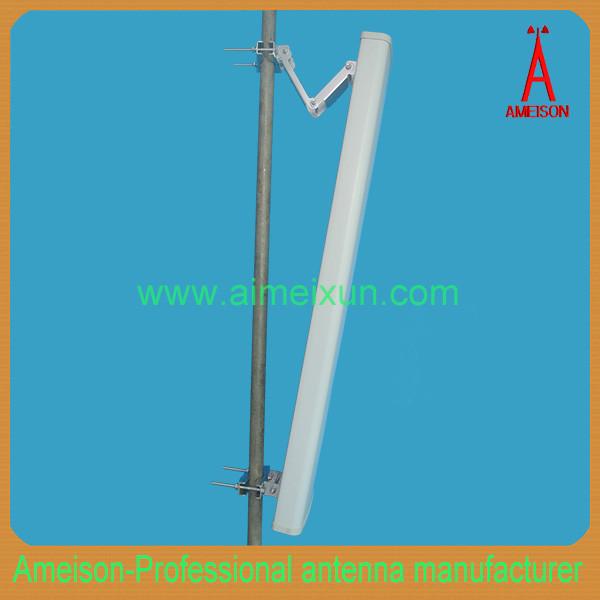

3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
3x15dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-2425VH-D15L65X3
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400～2500
Polarization :
2×Vertical + 1×Horizontal
Gain（dBi） :
3×15
Lightning protection :
DC Ground
Input connector type :
3-N Female
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

High gain for Wi-Fi system
Full day working
Optimized dimension
Dual Polarization
Factory Price
3x15 dBi high gain Dual Polarization 2.4GHz wifi MIMO wireless WLAN Antenna specifications
Feature:
High gain;
Full day working;
Optimized dimension;
Dual polarization.
Application:
2.4 GHz WLAN system;
2.4GHz ISM band;
Public wireless hot spot coverage;
Wi-Fi system.

AMXW-2425VH-D15L65X3

Electrical Specifications

Frequency range(MHz)

2400~2500

Polarization

2×Vertical + 1×Horizontal

Gain(dBi)

3×15

Half-power beam width(°)

H:65 V:14

Front-to-back ratio(dB)

≥25

InputImpedance(Ω)

50

VSWR

≤1.5

Isolation between ports

≥28dB

Cross-polar ratio

≥15dB@0º ≥10dB@+/-60º

Sidelobe suppression for first sidelobe above horizon

15 dB

Maximum input power(W)

200

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

3-N Female

Dimensions-mm (Height/Width/Depth)

450*253*35

Packing size(mm)

485*280*70

Antenna weight (kg)

1.5

Radome material

ABS

Radome color

White

Mechanical tilt(°)

0~10

Operating temperature(°c)

-40~60

Rated Wind Velocity(m/s)

60

Mounting hardware(mm)

35~50
