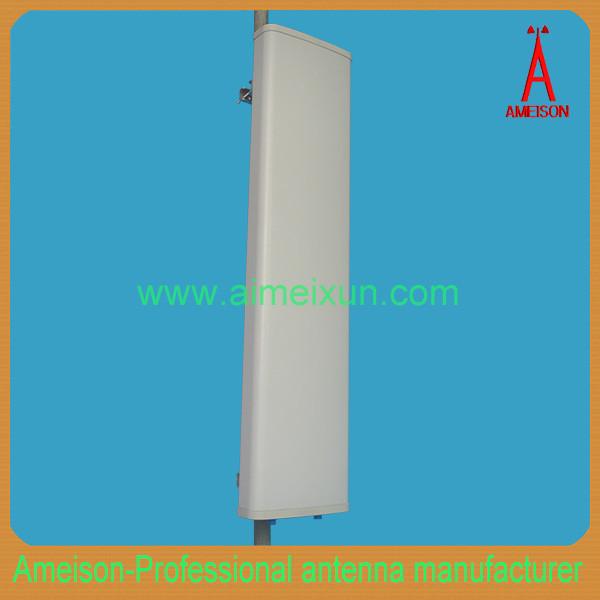

Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Ameison 2.4GHz 2x18dBi 65 Degrees Dual Polarized WiFi Panel Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXP-2425VH-D18L65
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400～2500
Polarization :
Vertical and Horizontal
Gain（dBi） :
2×17.5
half-power beam width（°） :
H:65 V:7
VSWR :
≤1.5
Lightning protection :
DC Ground
Input connector type :
2-N Female
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2.4 GHz WiFi Panel Antenna
Factory price
All weather operation
Heavy-duty waterproof radome
Included mounting brackets
2400-2500MHz Directional Panel Antenna
AMXP-2425VH-D18L65
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal
Application:
2.4 GHz WLAN system
2.4 GHz ISM band
Public wireless hot spot coverage
Wi-Fi system

AMXP-2425VH-D18L65

Electrical Specifications

Frequency range(MHz)

2400～2500

Polarization

Vertical and Horizontal

Gain(dBi)

2×17.5

half-power beam width(°)

H:65 V:7

Front-to-back ratio(dB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Isolation between ports

≥28dB

Cross-polar ratio

≥15dB@0º ≥10dB@+/-60º

Sidelobe suppression for first sidelobe above horizon

15 dB

Maximum input power(W)

200

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

2-N Female

Dimensions-mm (Height/Width/Depth)

1000*175*80

Packing size(mm)

1080*200*150

Antenna weight (kg)

6.5

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Mounting hardware(mm)

￠35～￠75
