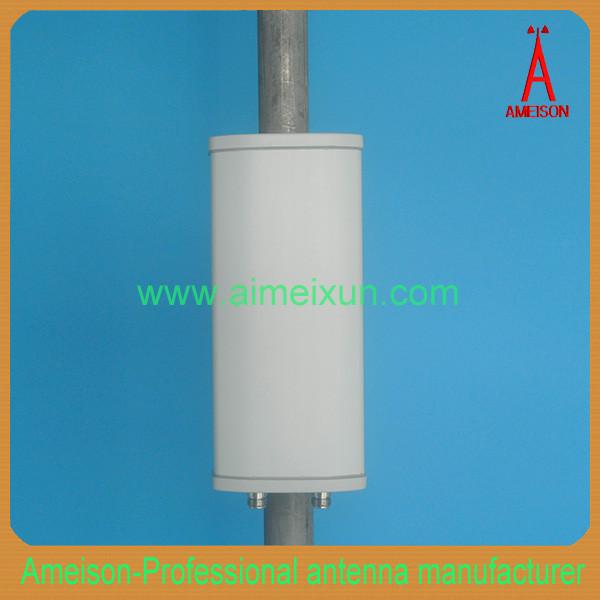

2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
2400-2500MHz 2x16dBi Directional Panel Antenna 2.4g antenna wifi antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXP-2425VH-D16L90
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400～2500
Polarization :
Vertical and Horizontal
Gain（dBi） :
2×15.5
Half-power beam width（°） :
H:90 V:10
VSWR :
≤1.5
Maximum input power（W） :
200
Lightning protection :
DC Ground
Input connector type :
2-N Female
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2400-2500MHz Directional Panel Antenna

AMXP-2425VH-D16L90

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

2.4 GHz WLAN system

2.4 GHz ISM band

Public wireless hot spot coverage

Wi-Fi system

AMXP-2425VH-D16L90

Electrical Specifications

Frequency range(MHz)

2400～2500

Polarization

Vertical and Horizontal

Gain(dBi)

2×15.5

Half-power beam width(°)

H:90 V:10

Front-to-back ratio(dB)

≥23

Input Impedance(Ω)

50

VSWR

≤1.5

Isolation between ports

≥28dB

Cross-polar ratio

≥15dB@0º ≥10dB@+/-60º

Sidelobe suppression for first sidelobe above horizon

15 dB

Maximum input power(W)

200

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

2-N Female

Dimensions-mm (Height/Width/Depth)

730*175*80

Packing size(mm)

800*200*150

Antenna weight (kg)

6.0

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Mounting hardware(mm)

￠35～￠75
