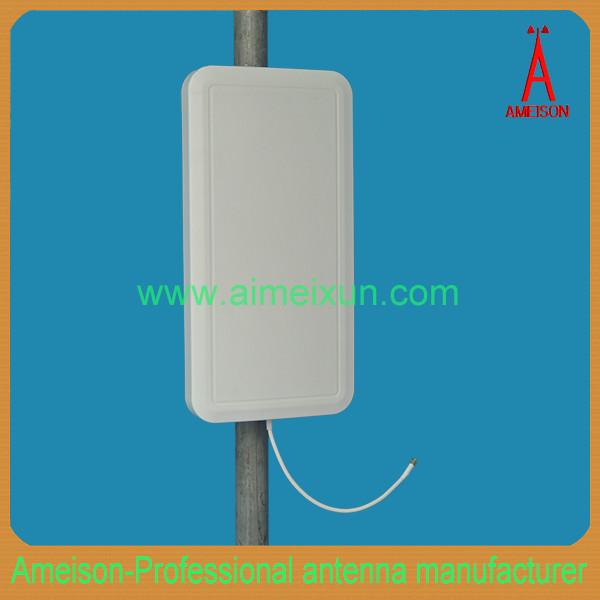

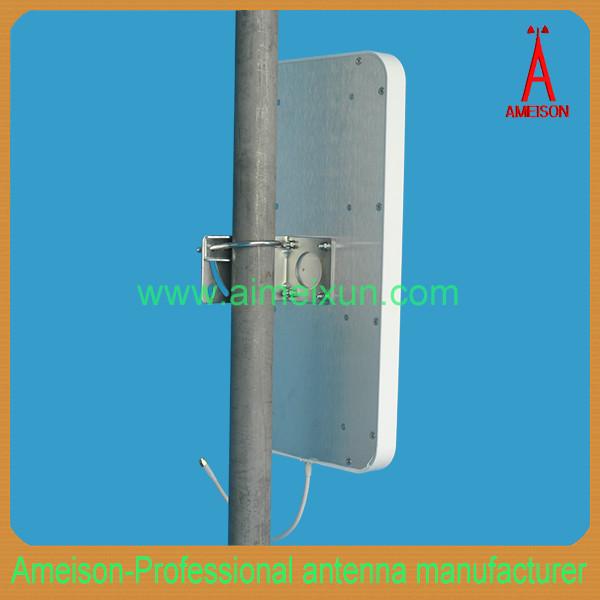

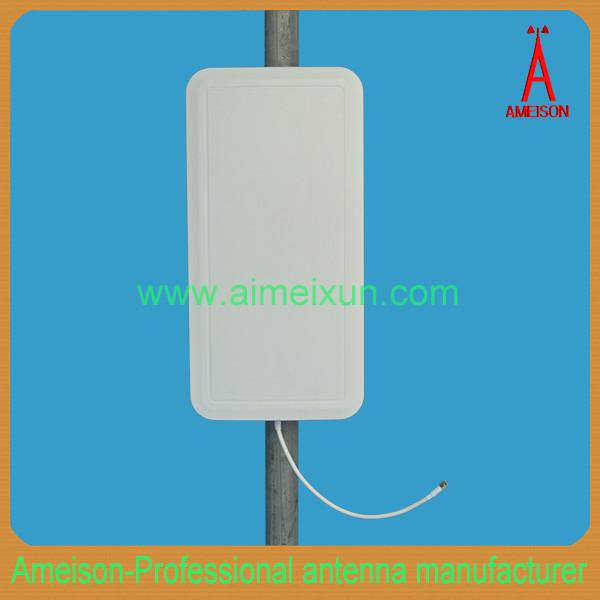

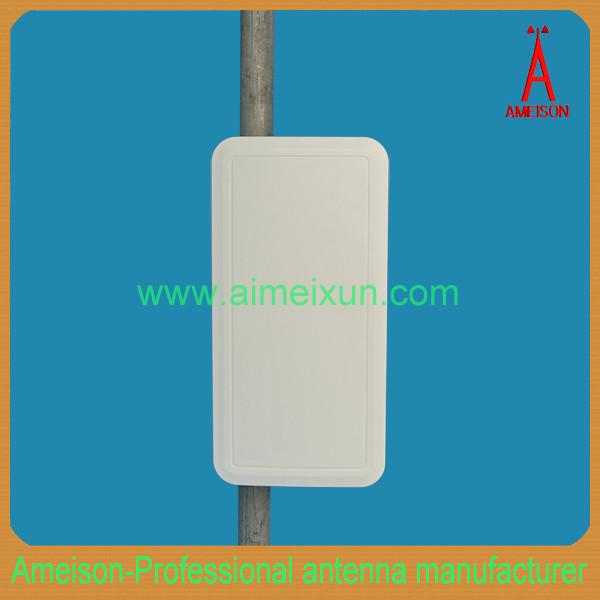

Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Outdoor/Indoor 5.8GHz 10dBi Flat Patch Antenna WLAN antenna Wall Mount Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-5800-10
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
5725-5850
Gain（dBi） :
10
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC ground
Input connector type :
SMA male or Requested
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

Ameison 5.8 GHz Panel Antenna

Factory price

Superior performance

Mounting kits included

Waterproof heavy-duty ABS redome

5725-5850MHz Directional Wall Mount Antenna

AMXW-5800-10

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

5.8GHZ WLAN system

Wireless bridging, client terminal antenna

AMXW-5800-10

Electrical Specifications

Frequency range(MHz)

5725-5850

Bandwidth(MHz)

125

Gain(dBi)

10

Half-power beam width(°)

H:90 V:30

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC ground

Input connector type

SMA male or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

140*120*40

Antenna weight(kg)

0.3

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting way

wall-hanging or pole-holding

Mounting hardware(mm)

￠35-￠50
