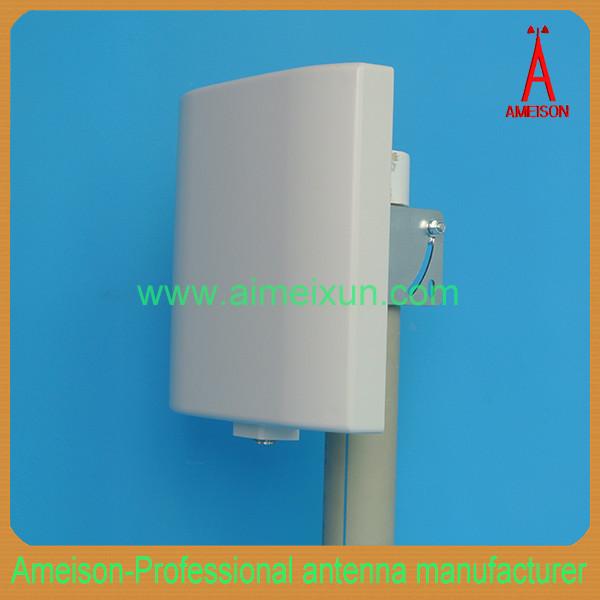

2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
2400-2483MHz 14dBi Directional Wall Mount Antenna wireless wifi WLAN antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-2400-14B
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400-2483
Bandwidth（MHz） :
83
Gain（dBi） :
14
half-power beam width（°） :
H：30 V：30
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N famle or Requested
Mounting way :
wall-hanging or pole-holding
Mounting hardware（mm） :
￠35-￠50
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2400-2483MHz Directional Wall Mount Antenna wireless wlan antenna
AMXW-2400-14B
Feature:
High gain
Strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
2.4GHZ WLAN system
2.4GHZ ISM frequency band
WIFI frequency band communication system

AMXW-2400-14B

Electrical Specifications

Frequency range(MHz)

2400-2483

Bandwidth(MHz)

83

Gain(dBi)

14

half-power beam width(°)

H:30 V:30

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N famle or Requested

Mechanical Specifications

Input connector type

225*195*47

Antenna weight(kg)

0.45

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting way

wall-hanging or
pole-holding

Mounting hardware(mm)

￠35-￠50
