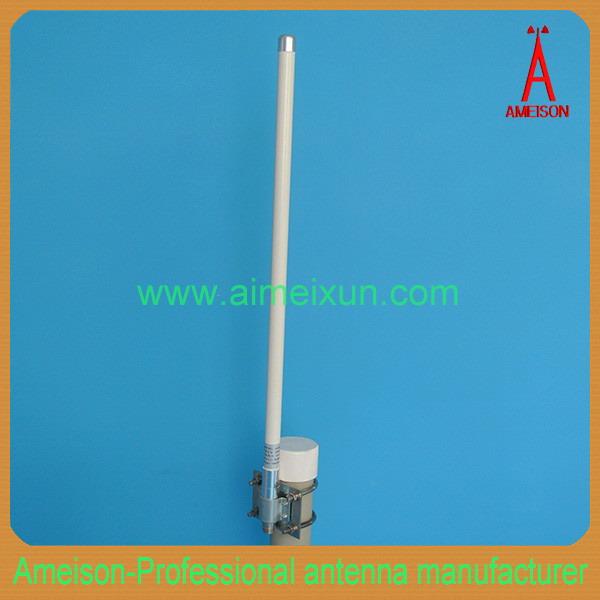

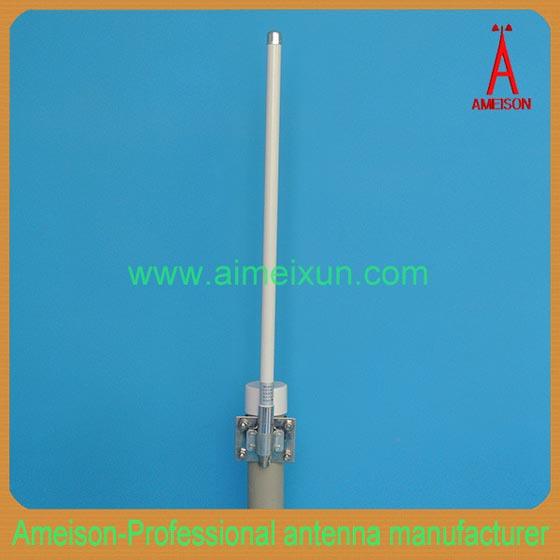

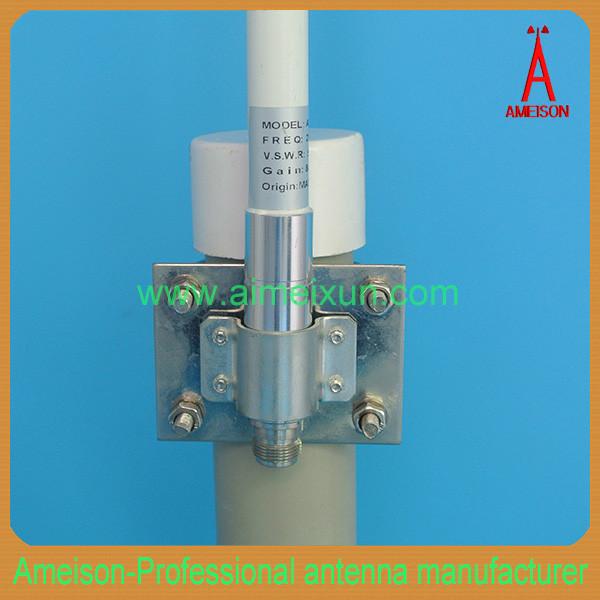

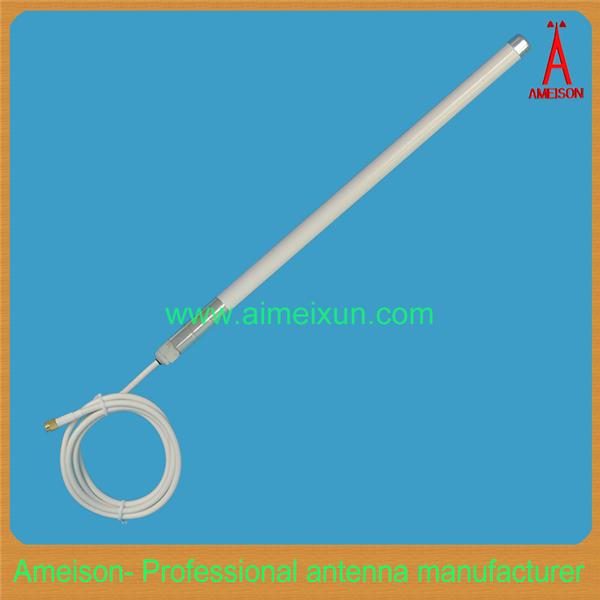

High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
High Performance Outdoor 2.4GHz 8dbi Omni Fiberglass WiFi Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXF-2400-8B
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400～2483
Bandwidth（MHz） :
83
Gain（dBi） :
8
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2.4ghz Omni-directional wifi antenna
Factory price
Mounting Kit Included for pole
Weatherproof
Corrosion Resistant
2.4ghz Outdoor WiFi Omni-Directional Antenna
Model No.: AMXF-2400-8B
The Ameison AMXF-2400-8B 8dbi Omni directional antenna is a 2.4 GHz Wireless outdoor Antenna. It can be combined to offer a complete solution for all your wireless signal boosting needs. The Outdoor Antenna provides wireless users with a high powered solution to extend their wireless network, either from one corporate building to another, or simply from the front of a house to the back.
The Ameison AMXF-2400-8B 8dbi Omni directional antenna emits a powerful amplified signal over a specific radius, delivering a strong multi-direction signal from an Access Point or a Bridge.
Product Highlights
8 dBi Signal Gain
2.4GHz Frequency Range
Weatherproof
Corrosion Resistant

Feature:
Exquisite appearance
Good impact resistance
Waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain
Low standing wave
Strong anti-interference ability
Application:
2.4GHz WLAN system
WiFi system
Point-to-multipoint system

AMXF-2400-8B

Electrical Specifications

Frequency range(MHz)

2400～2483

Bandwidth(MHz)

83

Gain(dBi)

8

Half-power beam width(°)

H:360 V:12

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions (mm)

Φ18*580

Antenna weight(kg)

0.39

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

White

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
