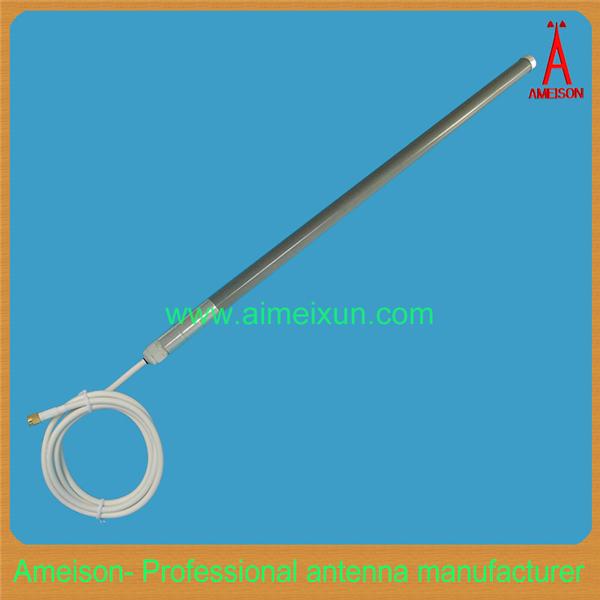

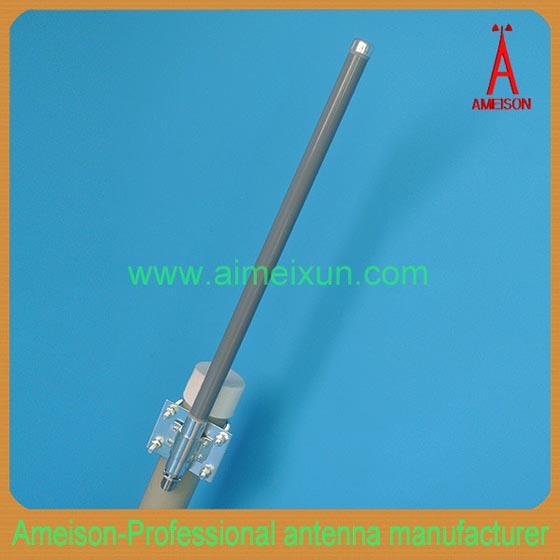

2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna 2.4g WLAN wifi antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXF-2400-6A
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400～2483
Bandwidth（MHz） :
83
Gain（dBi） :
6
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2.4GHz Omni-directional wifi antenna

Factory price

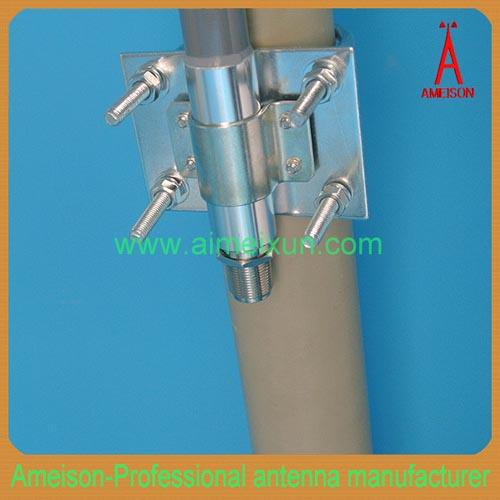

Mounting Kit Included for pole mount

Weatherproof

Corrosion Resistant

2400-2483MHz Omnidirectional Fiberglass Antenna

AMXF-2400-6A

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

2.4GHz WLAN system

WiFi system

Point-to-multipoint system

AMXF-2400-6A

Electrical Specifications

Frequency range(MHz)

2400～2483

Bandwidth(MHz)

83

Gain(dBi)

6

Half-power beam width(°)

H:360 V:22

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions (mm)

Φ20*450

Antenna weight(kg)

0.33

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

Gray

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
