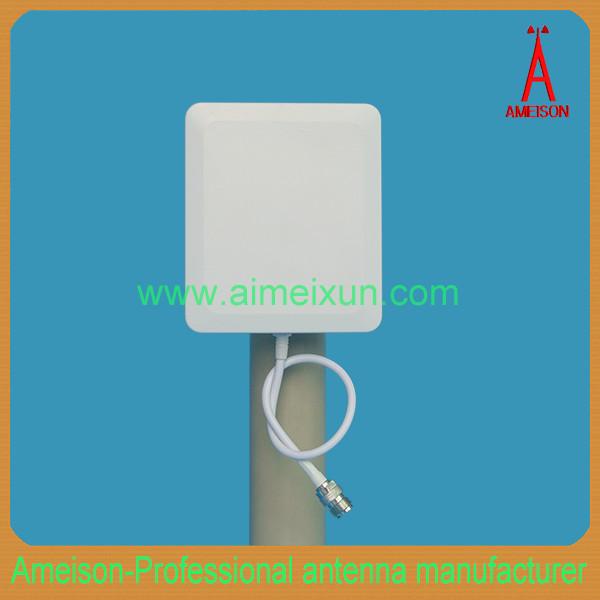

2.4GHz 14dBi wifi ISM indoor antenna Directional Wall Mount Antenna
2.4GHz 14dBi wifi ISM indoor antenna Directional Wall Mount Antenna
2.4GHz 14dBi wifi ISM indoor antenna Directional Wall Mount Antenna
2.4GHz 14dBi wifi ISM indoor antenna Directional Wall Mount Antenna
2.4GHz 14dBi wifi ISM indoor antenna Directional Wall Mount Antenna
2.4GHz 14dBi wifi ISM indoor antenna Directional Wall Mount Antenna
2.4GHz 14dBi wifi ISM indoor antenna Directional Wall Mount Antenna
2.4GHz 14dBi wifi ISM indoor antenna Directional Wall Mount Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-2400-14A
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400-2483
Band width（MHz） :
83
Gain（dBi） :
14
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2.4GHz wifi indoor antenna:

2.4GHZ WLAN System

2.4GHZ ISM application

WIFI system

Direct manufacture

2400-2483MHz Directional Wall Mount Antenna

AMXW-2400-14A

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

2.4GHZ WLAN system

2.4GHZ ISM frequency band

WIFI system

AMXW-2400-14A

Electrical Specifications

Frequency range(MHz)

2400-2483

Band width(MHz)

83

Gain(dBi)

14

Half-power beam width(°)

H:30 V:30

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

225*195*47

Antenna weight(kg)

0.6

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

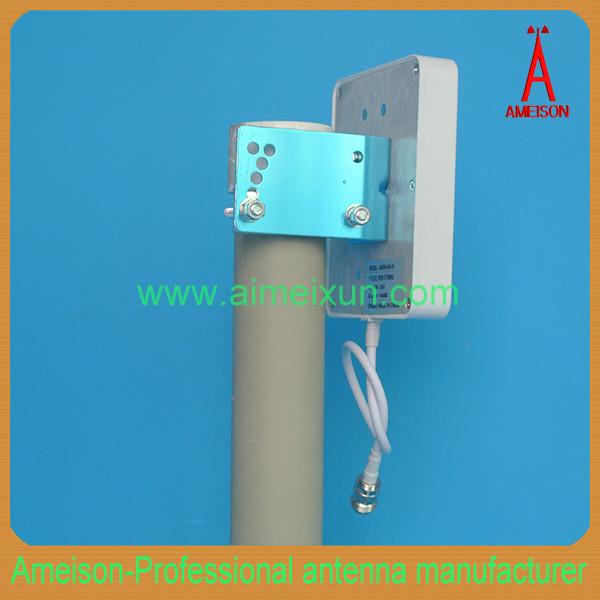

Mounting hardware(mm))

￠35-￠50
