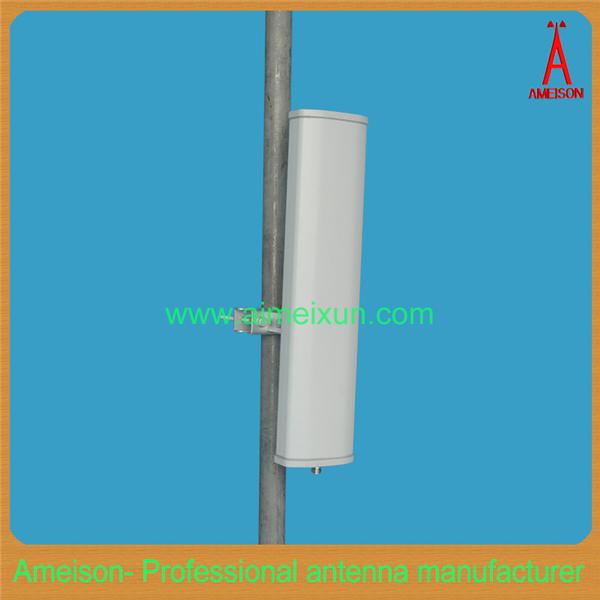

Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor/Indoor 2.4GHz 16dBi Directional Wifi WLAN Panel Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-2400-16
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400-2500
Bandwidth（MHz） :
100
Gain（dBi） :
16
Half-power beam width（°） :
H:65 V:10
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC ground
Input connector type :
N Female or Requested
Mounting way :
pole-holding
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

Ameison 2.4GHz Panel Antenna

Factory price

Superior performance

Mounting kits included

Waterproof heavy-duty ABS redome

2400-2500MHz Directional Panel Antenna

AMXW-2400-16

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

2.4 GHz WLAN system

2.4GHz ISM frequency band

Public wireless hot spot coverage

WiFi system

AMXW-2400-16

Electrical Specifications

Frequency range(MHz)

2400-2500

Bandwidth(MHz)

100

Gain(dBi)

16

Half-power beam width(°)

H:65 V:10

Input Impedance(Ω)

50

VSWR

≤1.5

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

454*134*30

Antenna weight (kg)

1.9

Radome material

ABS

Radome color

white

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

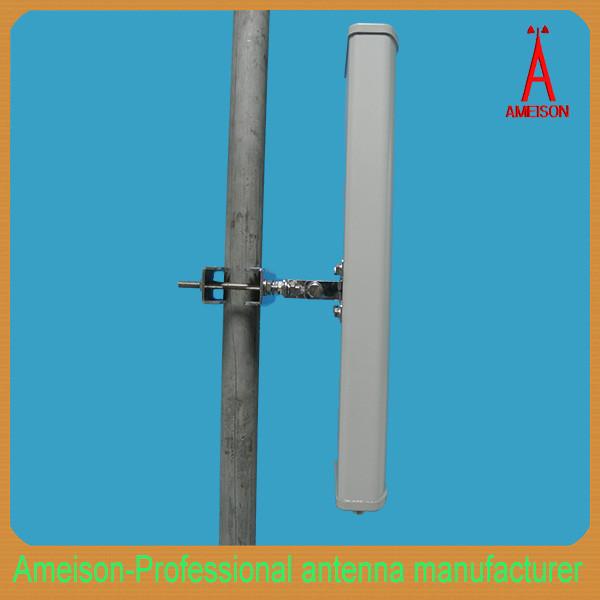

Mounting way

pole-holding

Mounting hardware(mm)

￠35～￠50
