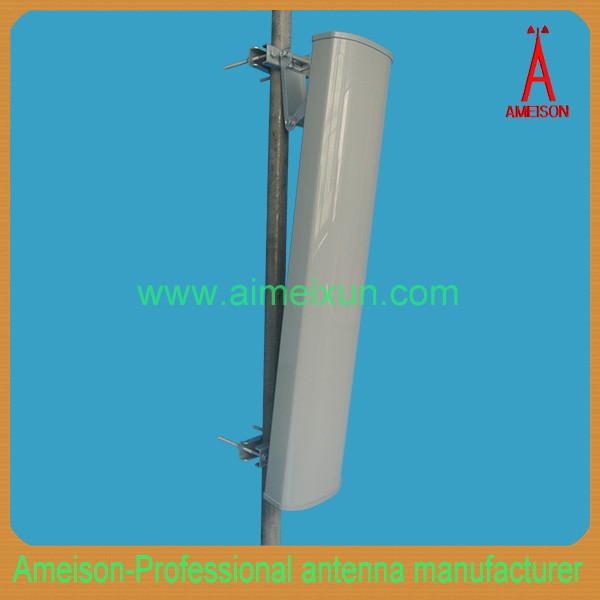

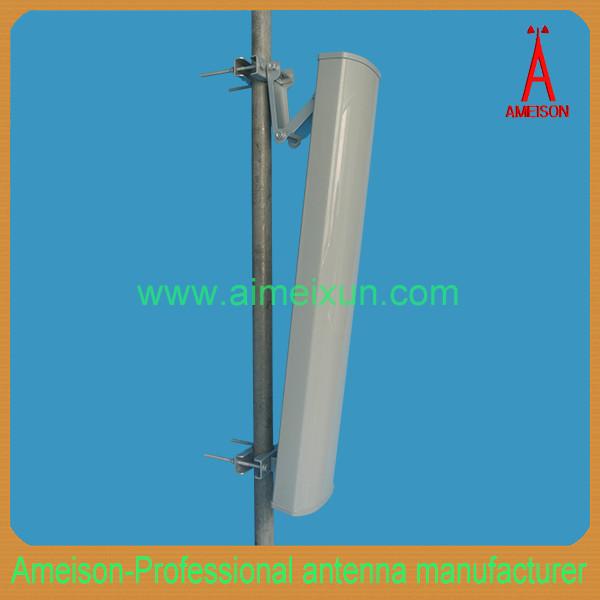

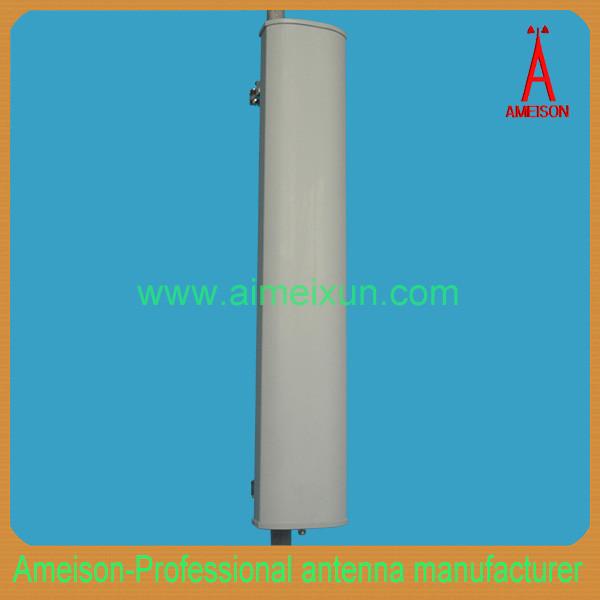

2.4GHz 18dBi base station sector Panel antenna wifi WLAN antenna
2.4GHz 18dBi base station sector Panel antenna wifi WLAN antenna
2.4GHz 18dBi base station sector Panel antenna wifi WLAN antenna
2.4GHz 18dBi base station sector Panel antenna wifi WLAN antenna
2.4GHz 18dBi base station sector Panel antenna wifi WLAN antenna
2.4GHz 18dBi base station sector Panel antenna wifi WLAN antenna
2.4GHz 18dBi base station sector Panel antenna wifi WLAN antenna
2.4GHz 18dBi base station sector Panel antenna wifi WLAN antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXP-2400-18
Certification :
RoHS and REACH Compliant by Exemption
Frequency rang :
2400-2500MHz
Gain :
18dBi
Polarization :
Vertical
Type :
Extenal
Connector :
N Female
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2.4GHz wifi antenna:

2400-2500MHz

18dBi

Manufacturer produce

2.4 GHz WIFI WLAN System ISM, etc.

Feature :

High Gain

H or V Polarization

Full day for working

Durable, corrosion resistance

Optimized dimension

Application :

2.4 GHz WIFI WLAN System ISM, etc

Sector signal coverage

Base station &Repeater station system

Wireless telecommunication & Data transmission system

AMXP-2400-18

Electric Specifications

Frequency rang

2400-2500

Polarization

Vertical

Gain(DBi)

18

Beamwidth(0°)

H:65 V:38

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

100

Mechanical Specifications

Connector model

N Female

antenna size (mm)

650*175*80

Packing size(mm)

680*200*150

Antenna weight (kg)

3.8

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0~10

Working Temperature(°c)

-40~60

Rated Wind Velocity(m/s)

60

Pole diameter(mm)

50~75
