Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXF-2327-10
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2300～2700
Bandwidth（MHz） :
400
Gain（dBi） :
10
VSWR :
≤1.6
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2.3-2.7 GHz Omni fiberglass antenna

Factory price

All weather operation

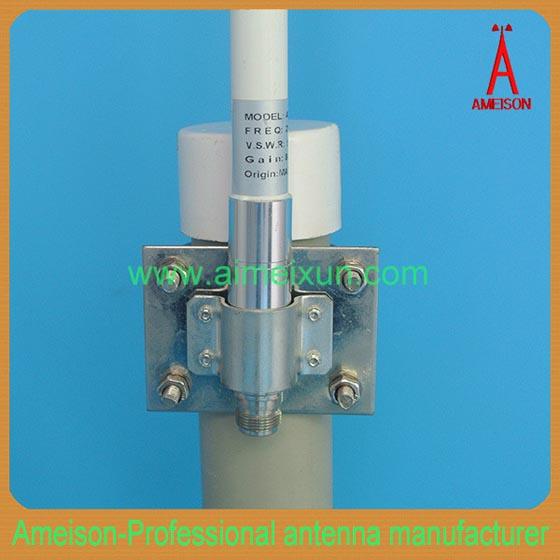

Included dual u-bolts mast mounting kits

2300-2700MHz Omnidirectional Fiberglass Antenna

AMXF-2327-10

Feature:

Exquisite appearance

Good impact resistance

Waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain

Low standing wave

Strong anti-interference ability

Application:

2.3/2.7 GHz WLAN system

2.3/2.7 GHz ISM band

Point-to-multipoint system

Public wireless hot spot coverage

Wi-Fi system

AMXF-2327-10

Electrical Specifications

Frequency range(MHz)

2300～2700

Bandwidth(MHz)

400

Gain(dBi)

10

Half-power beam width(°)

H:360 V:10

VSWR

≤1.6

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions (mm)

Φ20*770

Antenna weight(kg)

0.45

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

Gray

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
