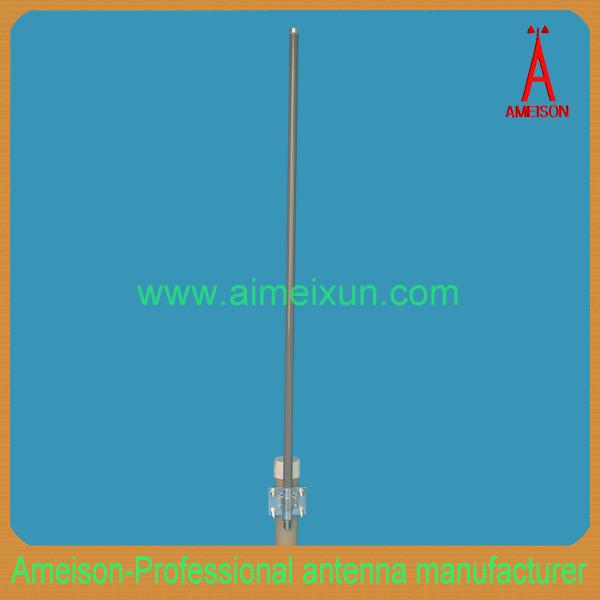

3.5g WIMAX UMTS antenna 3400-3600MHz 12dBi Omnidirectional Fiberglass Antenna
3.5g WIMAX UMTS antenna 3400-3600MHz 12dBi Omnidirectional Fiberglass Antenna
3.5g WIMAX UMTS antenna 3400-3600MHz 12dBi Omnidirectional Fiberglass Antenna
3.5g WIMAX UMTS antenna 3400-3600MHz 12dBi Omnidirectional Fiberglass Antenna
3.5g WIMAX UMTS antenna 3400-3600MHz 12dBi Omnidirectional Fiberglass Antenna
3.5g WIMAX UMTS antenna 3400-3600MHz 12dBi Omnidirectional Fiberglass Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXF-3500-12
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
3400～3600
Gain（dBi） :
12
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

UMTS antenna:

3.5 GHz WIMAX System

Repeater & Base station system

Strong supply capacity

Direct factory product

Good appearance

Durable

Corrosion resistance

Full day for working

Waterproof

Optimized dimension

High Gain

Lower VSWR

Strongly Anti-interference

Application:

Point to Multipoint system

Wireless data 3.5GHz transmission system

AMXF-3500-12

Electrical Specifications

Frequency range(MHz)

3400～3600

Bandwidth(MHz)

200

Gain(dBi)

12

Half-power beam width(°)

H:360 V:6

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions (mm)

Φ20*830

Antenna weight(kg)

0.4

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

Gray

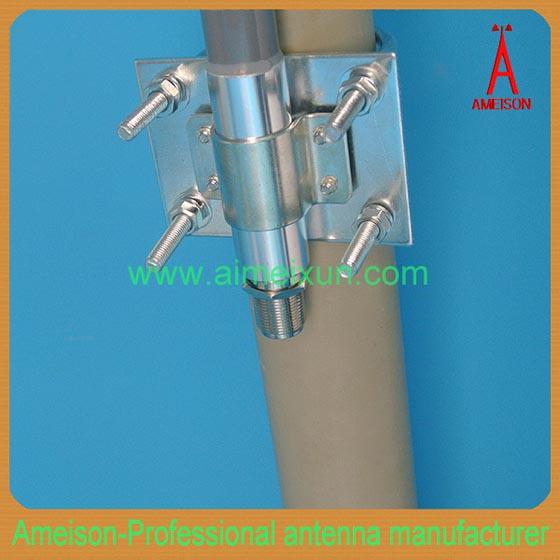

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
