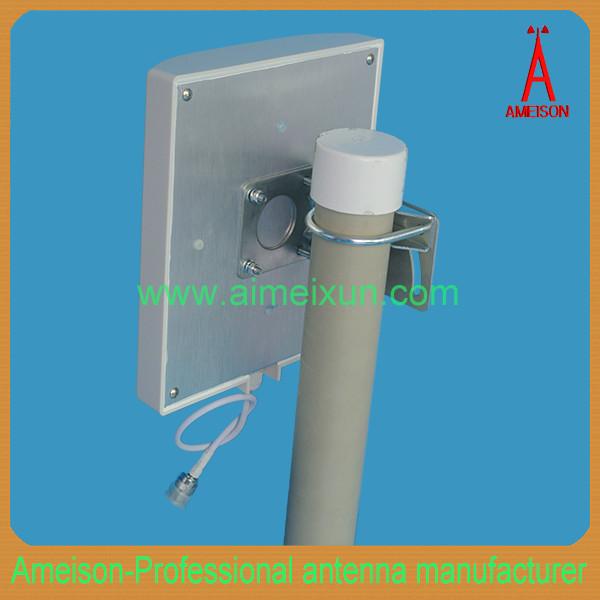

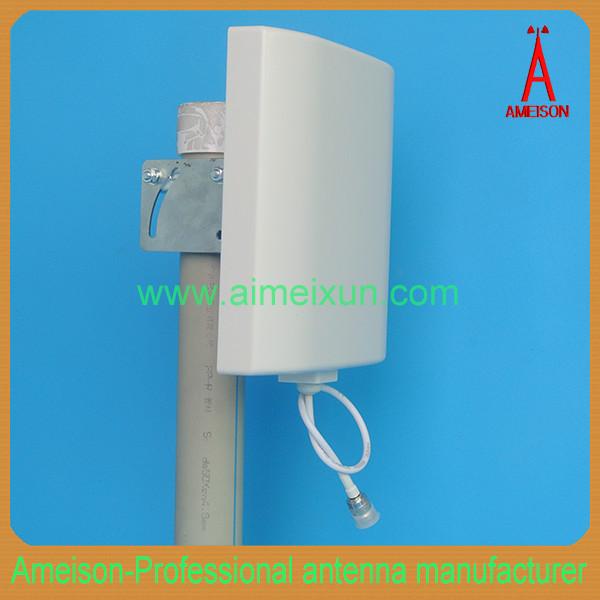

Outdoor/Indoor 806-960/1710-2500 MHz Flat Patch Antenna Directional Wall Mount Antenna
Outdoor/Indoor 806-960/1710-2500 MHz Flat Patch Antenna Directional Wall Mount Antenna
Outdoor/Indoor 806-960/1710-2500 MHz Flat Patch Antenna Directional Wall Mount Antenna
Outdoor/Indoor 806-960/1710-2500 MHz Flat Patch Antenna Directional Wall Mount Antenna
Outdoor/Indoor 806-960/1710-2500 MHz Flat Patch Antenna Directional Wall Mount Antenna
Outdoor/Indoor 806-960/1710-2500 MHz Flat Patch Antenna Directional Wall Mount Antenna
Outdoor/Indoor 806-960/1710-2500 MHz Flat Patch Antenna Directional Wall Mount Antenna
Outdoor/Indoor 806-960/1710-2500 MHz Flat Patch Antenna Directional Wall Mount Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-8025-10
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
806～960/1710～2500
Bandwidth（MHz） :
154/790
Gain（dBi） :
7/10
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting hardware（mm） :
￠35-￠50
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

Ameison Flat Patch Antenna

Factory price

Superior performance

Mounting kits included

Waterproof heavy-duty ABS redome

806-2500MHz Directional Wall Mount Antenna

AMXW-8025-10

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

Indoor coveragesystem

CDMA800/GSM900/3G/WLAN system

AMXW-8025-10

Electrical Specifications

Frequency range(MHz)

806～960/1710～2500

Bandwidth(MHz)

154/790

Gain(dBi)

7/10

Half-power beam width(°)

H:70/60 V:55/45

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

210*180*45

Antenna weight(kg)

0.57

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm)

￠35-￠50
