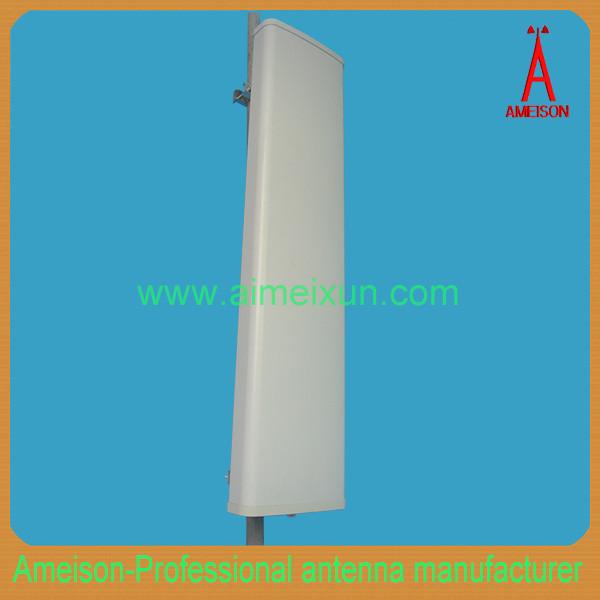

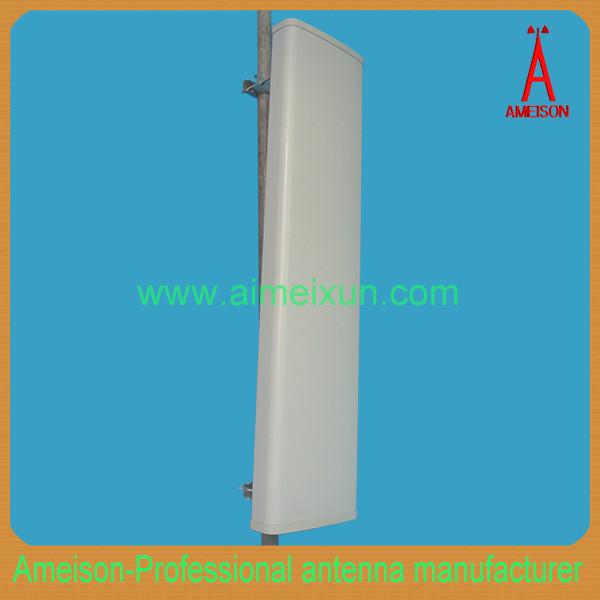

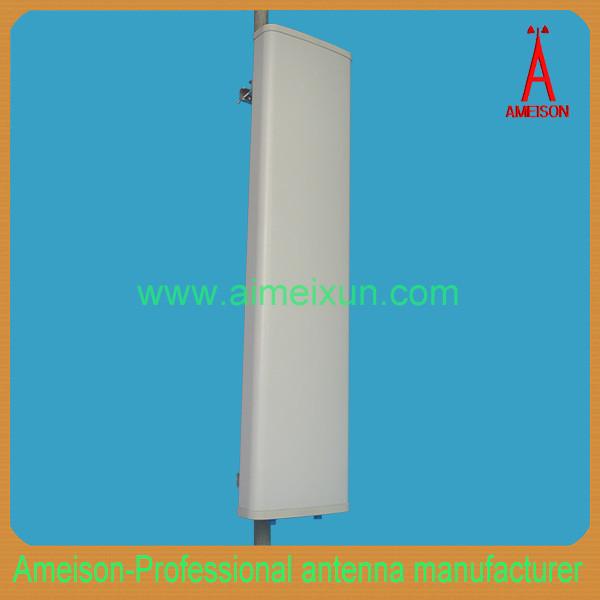

806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
806-2500MHz Directional Panel Antenna CDMA GSM PCS 3G WLAN antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXP-8025V-D1317L65
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
806～960 and 1710～2500
Polarization :
Vertical
Gain（dBi） :
13 and 17
Lightning protection :
DC Ground
Input connector type :
N Female
Mounting hardware（mm） :
￠35～￠90
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

806-2500MHz Directional Panel Antenna

AMXP-8025V-D1317L65

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

CDMA/GSM/PCS/3G/WLAN system

Wireless communication and data transmission system

AMXP-8025V-D1317L65

Electrical Specifications

Frequency range

806～960

1710～2500

Polarization

Vertical

Gain(dBi)

13

17

half-power beam width(°)

H:65 V:20

H:65 V:7

Front-to-back ratio(dB)

≥25

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

≤1.5

Maximum input power(W)

400

200

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

N Female

Dimensions-mm (Height/Width/Depth)

2000*280*80

Packing size(mm)

2050*330*170

Antenna weight (kg)

16

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Mounting hardware(mm)

￠35～￠90
