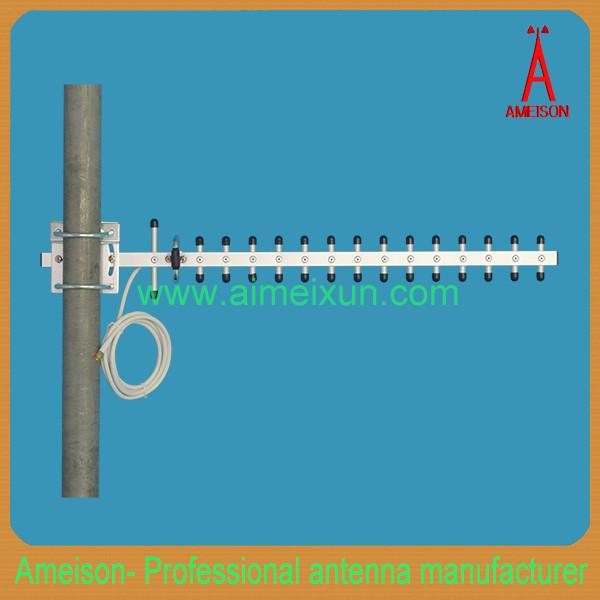

Ameison 2.3-2.7ghz 16dBi yagi antenna wifi WLAN antenna
Ameison 2.3-2.7ghz 16dBi yagi antenna wifi WLAN antenna
Ameison 2.3-2.7ghz 16dBi yagi antenna wifi WLAN antenna
Ameison 2.3-2.7ghz 16dBi yagi antenna wifi WLAN antenna
Ameison 2.3-2.7ghz 16dBi yagi antenna wifi WLAN antenna
Ameison 2.3-2.7ghz 16dBi yagi antenna wifi WLAN antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXY-2327-16
Certification :
RoHS and REACH Compliant by Exemption
Frequency range(MHz) :
2300-2700
Bandwidth(MHz) :
400
Gain(dBi) :
16
Element :
16
Polarization :
Horizontal or Vertical
Lightning protection :
DC Ground
Input connector type :
RP-SMA male or others
Clamp :
U-shape
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2.3-2.7Ghz directional yagi antenna

Gain is 16dBi

Antenna has 16 elements

Material is aluminum alloy framework

Ameison 2.3-2.7ghz wifi antenna directional yagi antenna

Model No.: AMXY-2327-16

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Mounting way can be Vertical or Horizontal

Application::

2.3-2.7GHz WLAN system

2.3/2.7 GHz ISM band

Point-to-point,point-to-multipoint system

AMXY-2327-16

Electrical Specifications

Frequency range(MHz)

2300-2700

Bandwidth(MHz)

400

Gain(dBi)

16

element

16

Half-power beam width(°)

H:35 V:30

Front-to-back ratio(dB)

≥16

VSWR

≤1.8

Input Impedance(Ω)

50

Polarization

Horizontal or Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

RP-SMA male or others

Mechanical Specifications

Dimensions(mm)

520*70*44

Cable length(m)

1

Antenna weight(kg)

0.33

Operating temperature(°c)

-40~60

Rated Wind Velocity(m/s)

60

Clamp

UU-shape

Mounting hardware(mm)

Φ35~Φ50
